Electrical Heater Failures: Root Causes & Prevention

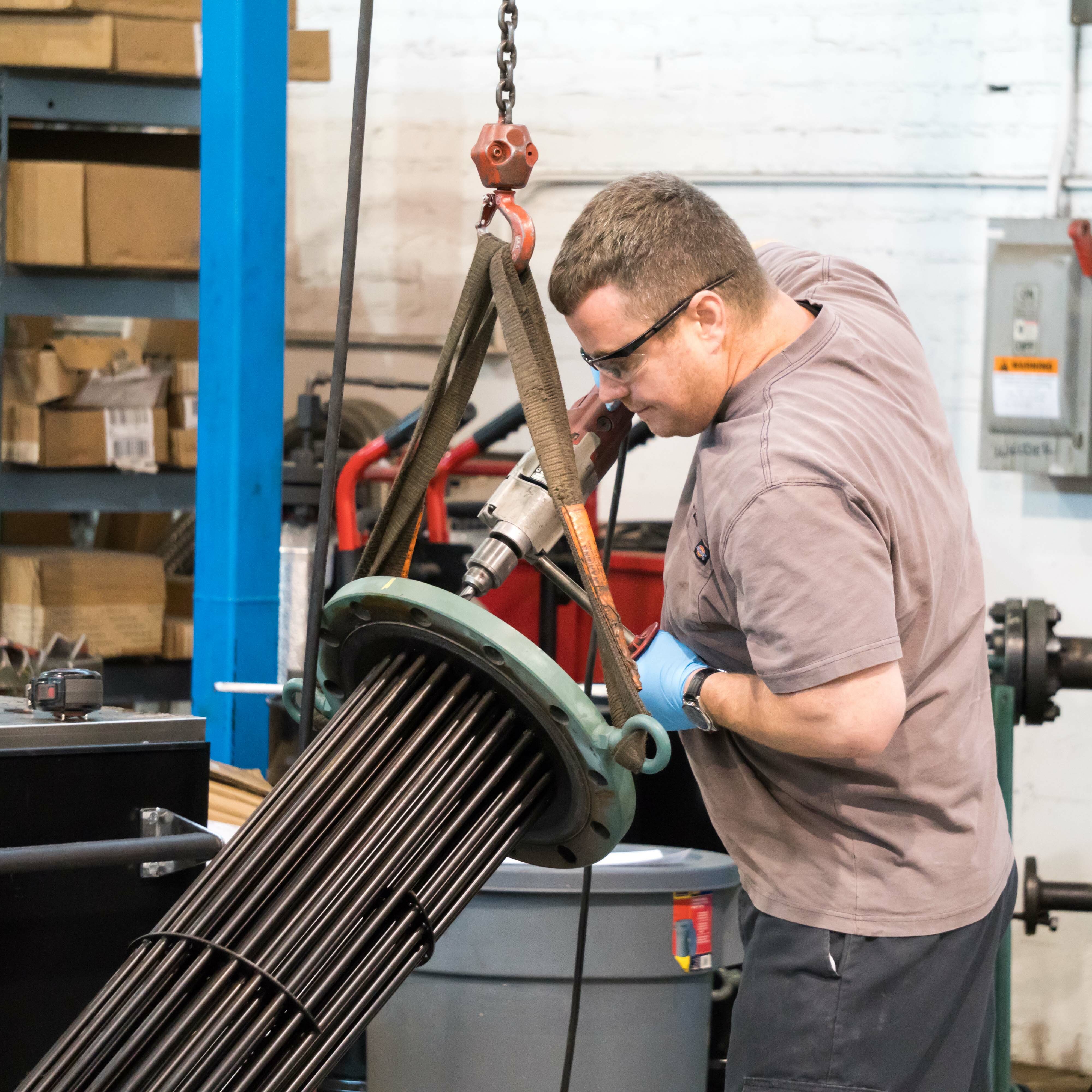

Electrical flanged immersion heaters are widely used because they can deliver high heat input through a single vessel nozzle. When properly applied, they offer long service life and precise temperature control. When failures occur, however, the cause is almost never random.
In practice, most flanged heater failures stem from thermal over-stress, inadequate heat removal, fluid interaction, missing safeguards, or misapplication. Understanding these failure modes — and designing around them — is the key to reliable operation.
The Most Common Causes of Flanged Heater Failure
1. Excessive Watt Density at the Element Surface
What happens
High watt density concentrates too much power into too little element surface area. Even when bulk fluid temperature appears normal, sheath temperatures can rise dramatically.
Typical failure symptoms
- Burned or ruptured sheaths
- Ground faults from insulation breakdown
- Localized fluid scorching or coking
- Fluid inside of the terminal housing
- Excessive or new smoke
Prevention
- Size heaters by allowable watt density, not just total kW
- Account for fluid type, fouling tendency, and operating temperature
- Increase number of heaters, element length, element count, or flange size to spread heat load and keep watt density low.
- Use indirect or closed-well‑ designs when surface temperature margin is critical
2. Inadequate Flow or Partial Immersion
What happens
Flanged heaters depend on fluid movement to remove heat. Low flow, stagnant regions, or exposed elements prevent heat from leaving the sheath fast enough.
Typical failure symptoms
- Rapid element burnout during startup
- Repeated failures at the same location on the bundle
- Over‑temperature trips or nuisance shutdowns
If elements are exposed to air inside of the system, additional failure symptoms will present themselves, such as poor process performance, pump cavitation, low system pressure, etc.
Prevention
- Make sure that all air is removed from the system piping during start-up.
- Fill from a low point, ideally the lowest part of the whole system
- Use high point air bleeds to purge air
- Verify minimum flow in all operating modes, including startup and turndown
- Interlock heaters with flow or level switches
- Use internal baffling to promote uniform velocity across elements
- Never energize a heater unless full immersion or circulation is confirmed
3. Fluid Degradation and Element Fouling
What happens
As process fluids oxidize, polymerize, or break down, deposits form on the element sheath. These deposits insulate the element, driving sheath temperatures higher and accelerating failure.
Typical failure symptoms
- Poor system performance
- Reduced flow from deposits collecting in strainer basket or filter housing
- Gradual loss of heater life over time
- Discolored or carbonized deposits on elements
- Excessively dark colored, foul smelling fluid
- Increased heater cycling or reduced heat transfer
- Increased pump seal or rotary joint failures
Prevention
- Keep fluids within their recommended temperature limits
- Monitor fluid condition and cleanliness with an annual fluid sample
- Sample during diagnosis once all mechanical or electrical issues have been ruled out
- Design conservatively for fouling-prone fluids
- Clean or replace elements before deposits become insulating layers
4. Electrical Mismatch or Connection Issues
What happens
Electrical problems often amplify thermal stress. Over‑voltage increases watt density, while loose or undersized wiring creates localized heating at terminals. Improper wire jacketing may also fail in the wrong environment (SRG vs MTW or THNN, etc.).
Typical failure symptoms
- Signs of arcing inside the control center
- Wire discoloration
- Burned or melted terminal pins, buss bars, or wiring devices
- Insulation resistance failures
- Uneven element loading
Prevention
- Match applied voltage to heater nameplate ratings
- Use wiring rated for the actual terminal housing temperature
- Torque terminals properly and re‑check after thermal cycling
- Perform resistance and insulation checks during commissioning
- Check leg to leg resistance and resistance to ground from the load side of the contactor or SCR and make sure there are no shorts or grounds prior to energization.
5. Missing or Inadequate Safety Interlocks
What happens
Many heater failures become catastrophic because the heater remains energized after process conditions change. Making electrical checks prior to operation can indicate whether a failure has occurred or if a ground issue or wiring issue is present.
NEVER defeat or disable factory interlocks.
Typical failure symptoms
- Melted elements after loss of flow or level
- Heater damage during upset or startup conditions
- Arcing of contactors, SCRs, circuit breakers, etc.
- Blowing branch or main fuses
- Melted wiring inside control center
Prevention
- Install independent high temperature‑ limits
- Interlock heaters with flow and/or level switches
- Design controls so loss of a permissive condition de‑energizes the heater
- Treat safety devices as primary protection, not optional accessories
6. Field Wiring Precautions for Heater Terminal Housing
What happens:
When field wiring a heater, it is often necessary to create conduit holes in the terminal housing. If metal shavings from drilling or cutting are not thoroughly cleaned out before operating the heater.
Typical failure symptoms
- Electrical shorts
- Ground faults
- Catastrophic heater failures
Prevention
- Electrical checks prior to operation to ensure no circuits short out
- Check terminal housing for any conductive shavings and debris - clean out if present
- ALWAYS Keep all electrical terminals clean

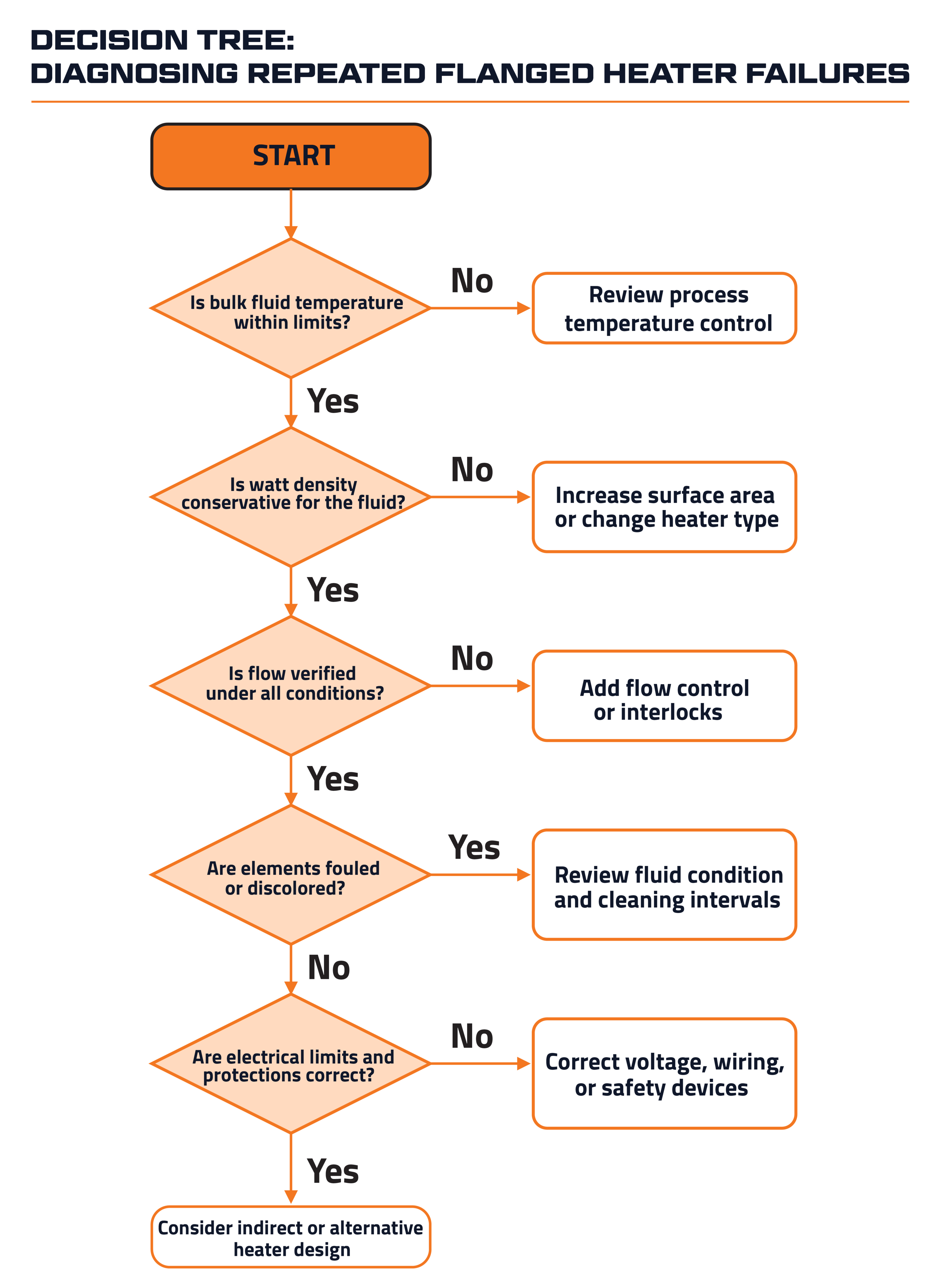

Designing for Reliability Instead of Just kW
Flanged immersion heaters rarely fail without warning. Most failures are the predictable result of excessive surface temperature, inadequate heat removal, or missing protections.
When heaters are designed with conservative watt density, verified flow, proper electrical design, and layered safety interlocks, service life increases dramatically — often by years.
Flanged Heater Failure Prevention Design Checklist
Application & Thermal
- Watt density verified for fluid and temperature
- Adequate surface area provided
- Fouling tendency considered
Flow & Installation
- Minimum flow confirmed in all modes
- Elements fully immersed under all conditions
- Internal baffling promotes uniform velocity
Electrical
- Voltage matches nameplate rating
- Wiring rated for terminal housing temperature
- Wiring rated for correct voltage and ampacity
- Terminals torqued and inspected
Protection & Controls
- Independent high‑temperature limit installed
- Flow and/or level interlocks in place
- Heater de‑energizes on loss of permissive condition
- Fuses/circuit breakers are of proper type, voltage rating, and amperage rating.
FAQ: Electrical Flanged Heater Failures
Excessive watt density combined with inadequate heat removal is the most common root cause.
Element sheath temperature can be far higher than bulk fluid temperature, especially at high watt density or low flow.
Yes. Over‑voltage increases watt density, raising sheath temperature and accelerating insulation breakdown.
It is a vicious cycle. Deposits insulate the element and make it run hotter. The element’s increased heat continues to crack the fluid.
When fluids are temperature‑sensitive, fouling‑prone, or when surface temperature margin is limited.
