How to Prepare an RFQ for an Industrial Heating System
When you’re preparing a Request for Quote (RFQ) for an industrial heating system, the quality of the information you provide upfront directly impacts how accurate, timely, and useful the quote will be. From a sales engineering standpoint, our goal is not just to price equipment: we want to ensure the system is properly sized, safe, and aligned with your process requirements from day one.
For most applications, especially regulated or continuous-duty operations, incomplete RFQs can lead to rework, extended lead times, or even performance issues in the field. The more clearly you define your process and operating conditions early, the faster we can recommend a solution that fits your application and is not just a generic design.
What We Need from You (and Why It Matters)

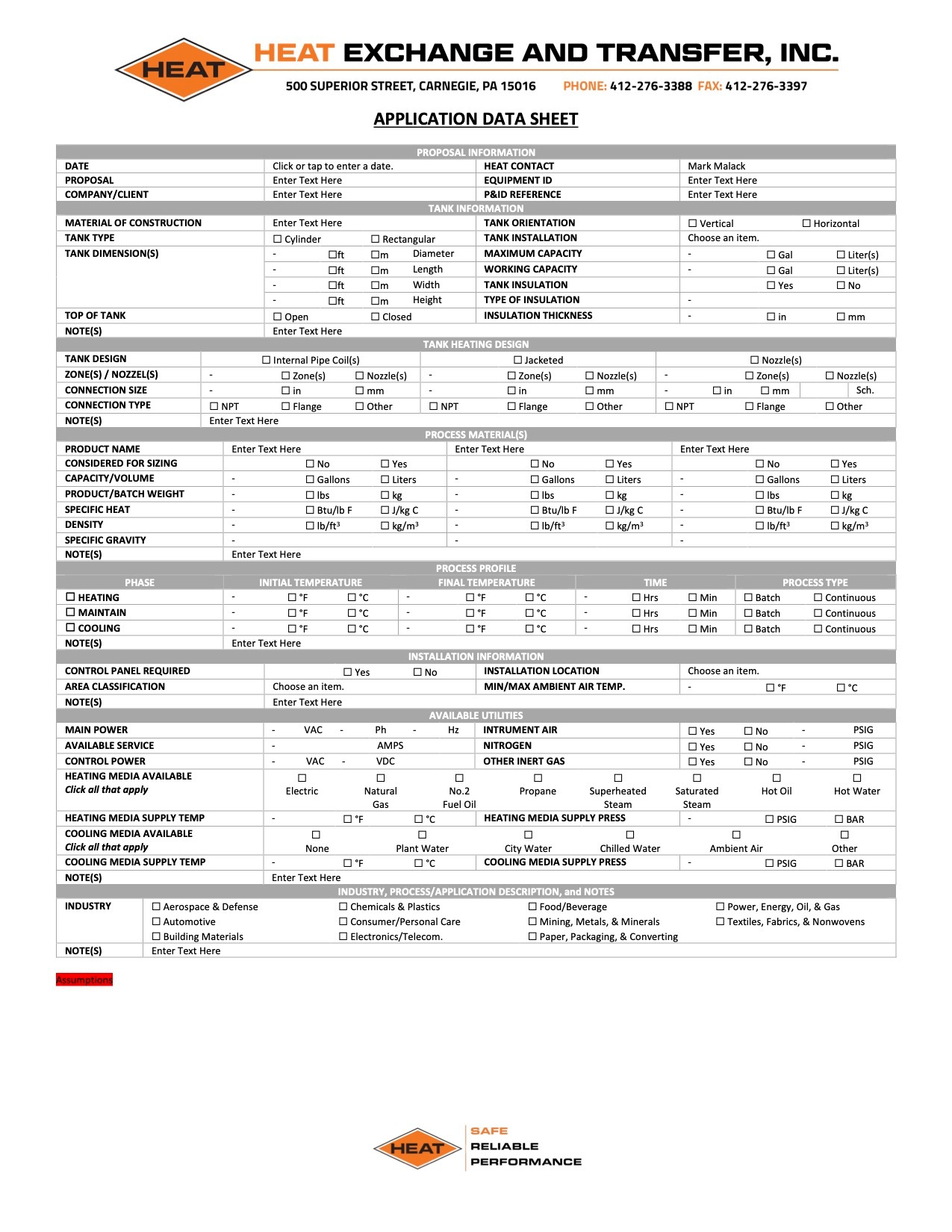

When we review an RFQ, we’re evaluating several key areas that influence engineering design, material selection, controls, and overall system layout. You don’t need every detail immediately, but the more you can provide upfront, the more precise and efficient the quoting process becomes.
1. Application & Process Information
Start by helping us understand your process clearly.
- What is the system doing, and why is heat required?
- What fluid or product are you working with?
- Is the operation batch or continuous?
- Batch Heating: A batch heating process is an intermittent operation in which a specific amount of material is heated in a vessel, processed, and then removed before the next cycle begins. Each batch is handled separately, allowing for variation in processing conditions between cycles.
- Continuous Heating: A continuous heating process is an ongoing operation in which material flows through a system and is heated while moving, with input and output occurring at the same time. The process operates under steady-state conditions, providing consistent heating as long as material flow is maintained.
- Are you heating up, maintaining temperature, cooling, or all three?
- What are your starting and target temperatures?
- How quickly do you need to reach temperature?
This information drives heater sizing, watt density, and overall system configuration. A heating system designed for a slow heat-up behaves very differently than one required to ramp quickly.
2. Equipment & Layout Details
Next, we look at the physical system you’re working with.
- Tank or vessel size, orientation, and material
- Any existing P&IDs or equipment IDs
- Preferred heating method (immersion heater, jacket, circulation system, etc.)
- Number of heaters or zones
- Connection types (flanged, NPT, etc.)
- Space constraints, access limitations, and maintenance clearance
These factors affect not only how the system is designed, but whether installation and long-term service will be practical.
3. Utilities & Available Power
One of the most common delays in RFQs comes from missing utility information. Be sure to define:
- Electrical supply (voltage, phase, frequency)
- Available amperage
- Control power requirements
- Availability of plant utilities (air, nitrogen, steam, hot oil, water, etc.)
This directly impacts heater selection, control panel design, and feasibility of the proposed solution.
4. Operating Environment
Where and how the system will operate is just as important as the process itself.
- Indoor vs. outdoor installation
- Minimum and maximum ambient temperatures
- Hazardous area classification (if applicable)
- Exposure to washdown, dust, vibration, or corrosive environments
These conditions influence enclosure ratings, material selection, and safety design requirements.
5. Controls, Safety & Integration
Controls are often where customization is most critical. Let us know:

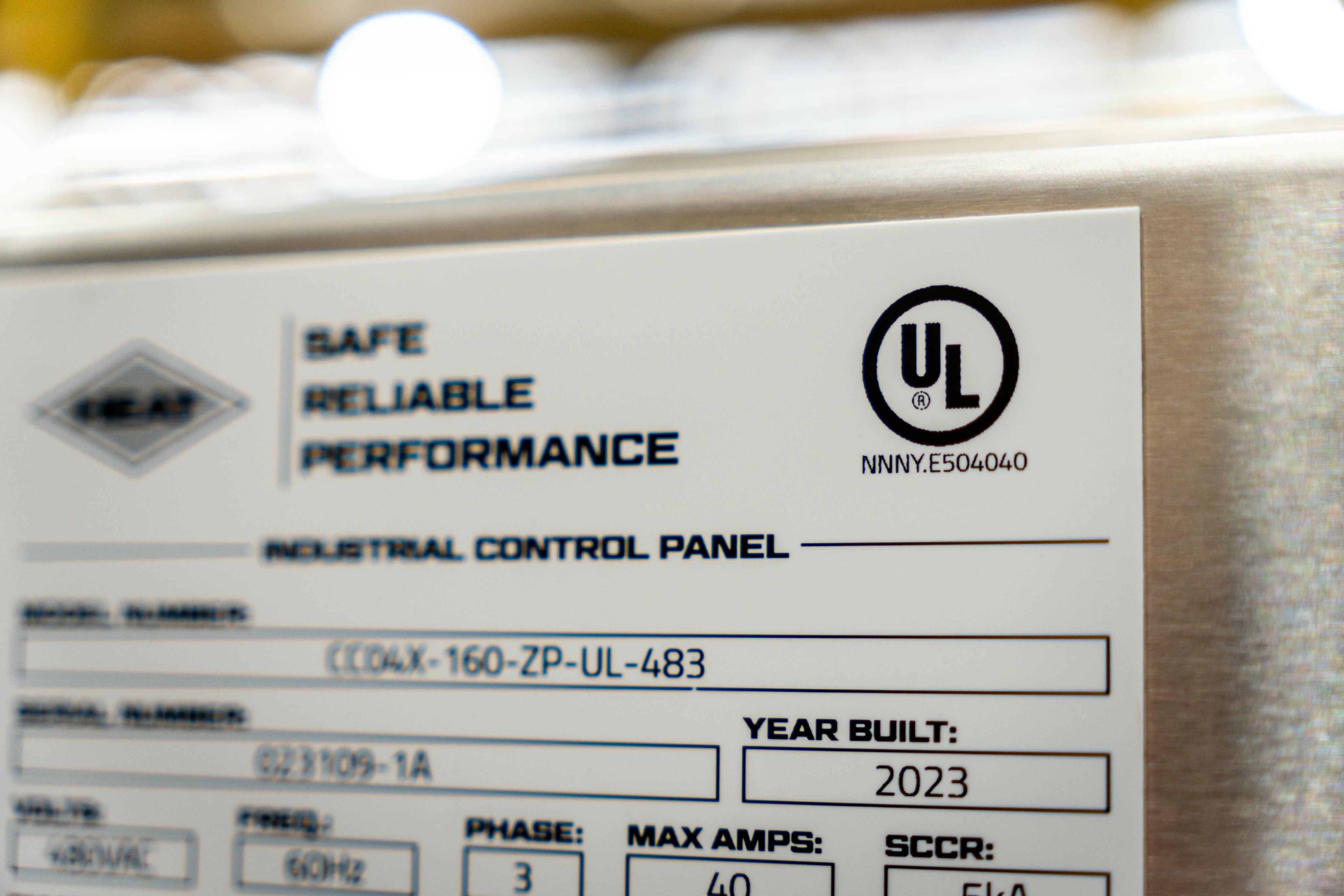

- Whether HEAT is supplying the control panel or integrating with yours
- Local vs. remote operation requirements
- Required alarms, sensors, and interlocks
- NEMA enclosure ratings
- Integration requirements with your plant control system
These details define how the system operates day-to-day and how it ties into your existing infrastructure.
6. Codes, Compliance & Documentation
If your project involves code requirements or internal standards, it’s important to identify them early:
- ASME code requirements (UM, U, CRN)
- Third-party inspections or certifications (i.e. UL Listed/Recognized)
- Quality and traceability expectations
- Required deliverables (drawings, calculations, documentation packages)
Addressing these upfront prevents redesign or delays later in the project lifecycle.
How This Helps You
From a sales engineer’s perspective, a well-prepared RFQ allows us to:
- Turn around quotes faster
- Provide accurate sizing and pricing
- Minimize clarification cycles
- Deliver equipment that performs as expected in your process
Ultimately, it reduces risk—both from a schedule and performance standpoint.
Final Advice
You don’t need to have everything perfectly defined before reaching out. Even partial information is enough for us to start asking the right questions and guiding you toward a complete solution.
The key is to treat the RFQ as the beginning of a technical conversation—not just a request for price.
