Open Coil Heaters vs. Flanged Immersion Heaters: How to Choose
Electric immersion heaters are widely used for direct tank heating across industrial processes. Among the most common designs are flanged immersion heaters and open coil heaters (OCH) in closed wells, both of which are proven and reliable when applied correctly. When problems arise, it’s not because one technology is superior or inferior, but frequently because the chosen kind of heater doesn’t match the specific thermal, mechanical, or maintenance needs of the application.
Flanged immersion heaters and open coil heaters transfer heat in different ways, each suited for specific applications. Choosing the right heater is important for ensuring product integrity, strong system performance, and continued maintenance costs.
Keeping factors like watt density, heat transfer methods, product sensitivity, and ease of maintenance in mind helps engineers avoid common mistakes and create durable, efficient systems.
The quick rule of thumb:
- Pick a flanged immersion heater when you need fast heat-up and high kW in one nozzle.
- Pick an open coil heater (OCH) design when product protection + serviceability matter more than speed.
- Use both when startup and holding duties conflict (flanged for warmup, closed‑well for gentle holding).
A Nuanced Choice:
When electric tank heating is selected as the preferred method of energy input, engineers are often faced with a seemingly simple question:
Which heater type should be used?
In practice, this decision has long-term consequences for product quality, energy efficiency, uptime, and maintenance.
Flanged immersion heaters and open coil heaters (OCH) represent two different design philosophies: One emphasizes compact, high-power delivery, while the other prioritizes low watt density, indirect heat transfer, and serviceability. Understanding these differences is critical to making well-informed, application-driven decisions rather than defaulting to an established routine or to what is simply available.
Why watt density matters:
Watt density (heat flux) is the heater’s power divided by its heated surface area. As watt density increases, the element sheath and the product “film” layer near the heater surface tend to run hotter — raising the risk of scorching, coking, or product degradation even if the bulk tank temperature looks fine.
Then the choice between a flanged immersion heater and an open coil heater design is often a balancing act: what kind of heater can deliver enough heat input to meet warm‑up goals while keeping surface temperatures low enough to protect the product?
The Two Primary Types of Electric Tank Heaters

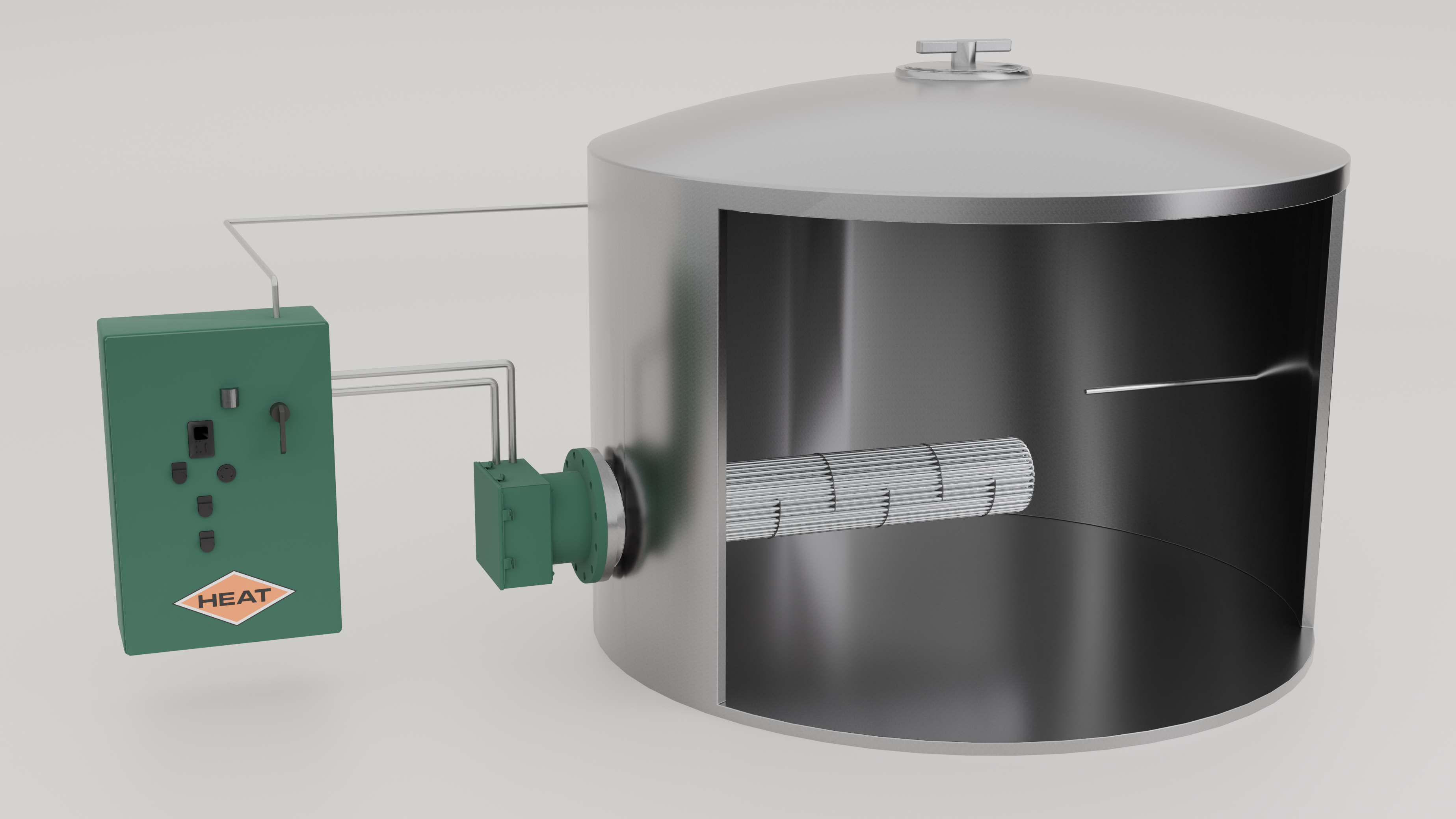

Flanged Immersion Heaters

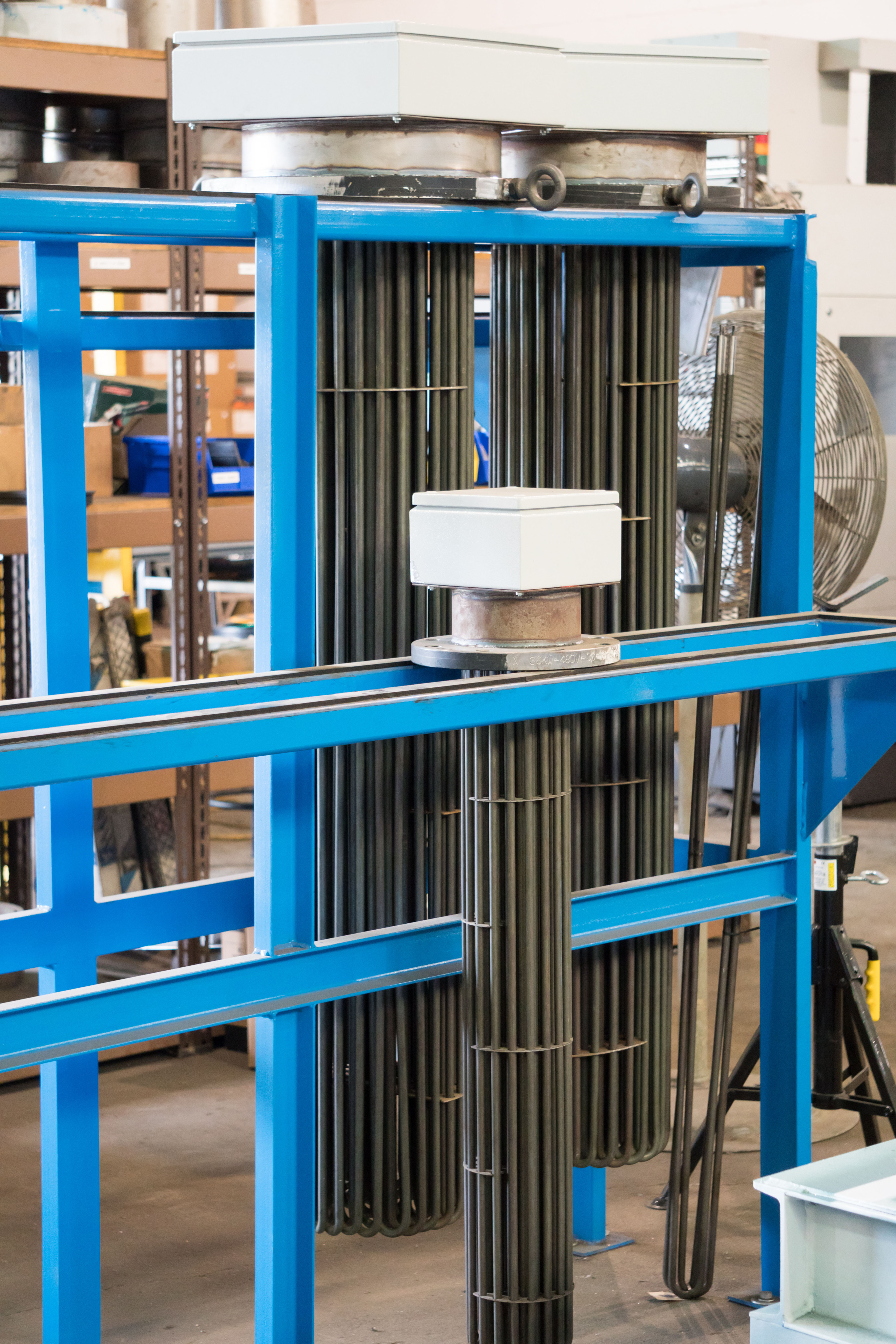

Flanged immersion heaters consist of tubular heating elements mounted through a standard ANSI flange and inserted directly into the process fluid. This configuration allows a large amount of heating capacity to be delivered through a single tank nozzle, making it attractive where space or penetrations are limited.
Key characteristics of flanged immersion heaters include:
- Direct contact between the heating element and the product
- High kilowatt output in a compact footprint
- Rapid temperature ramp capability
- Standardized mechanical and electrical interfaces
Because heat is transferred directly from the element surface into the fluid, circulation and watt density management are critical, particularly with viscous or heat-sensitive products.

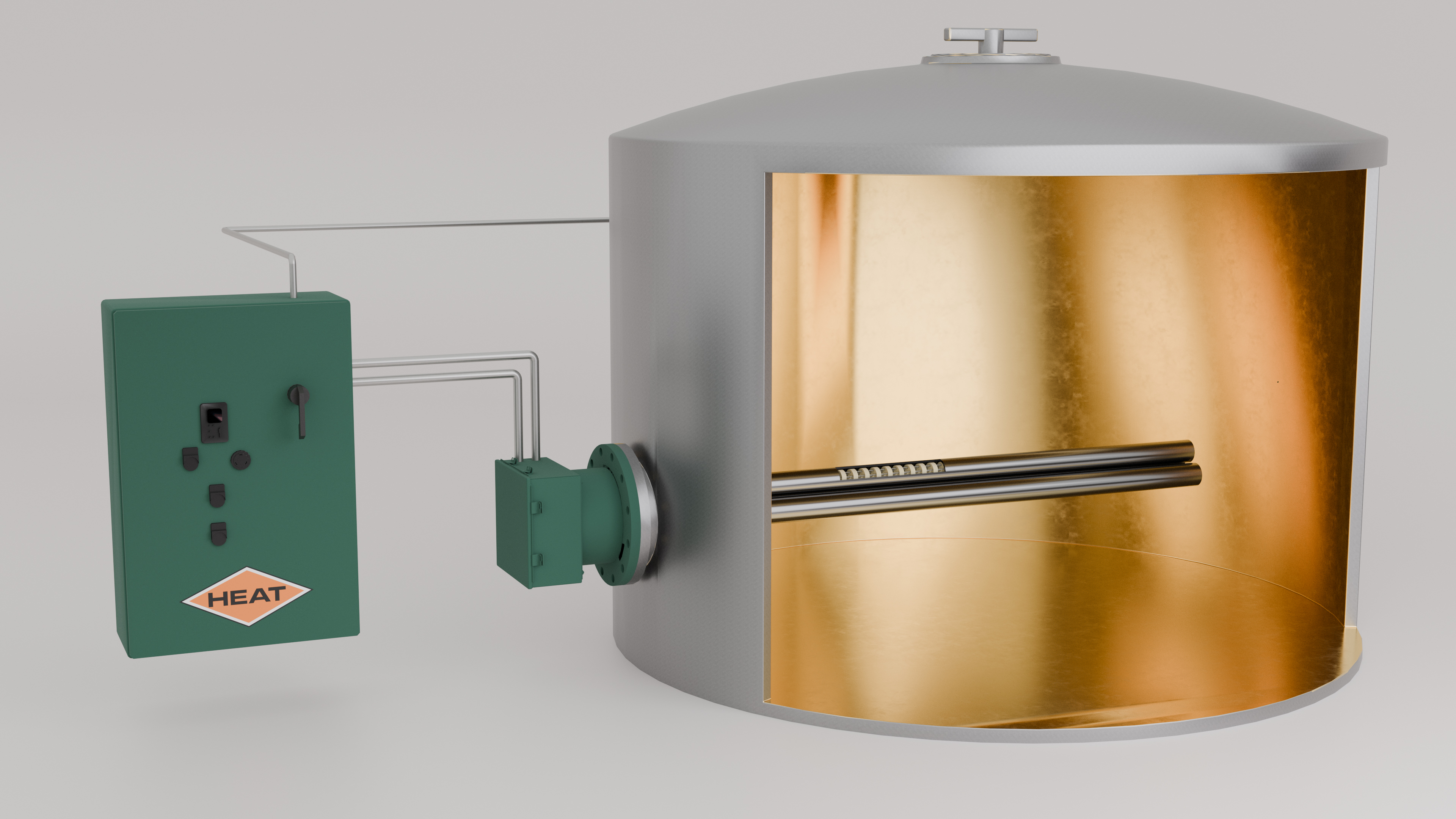

Closed-Well with Open Coil Heaters (OCH)

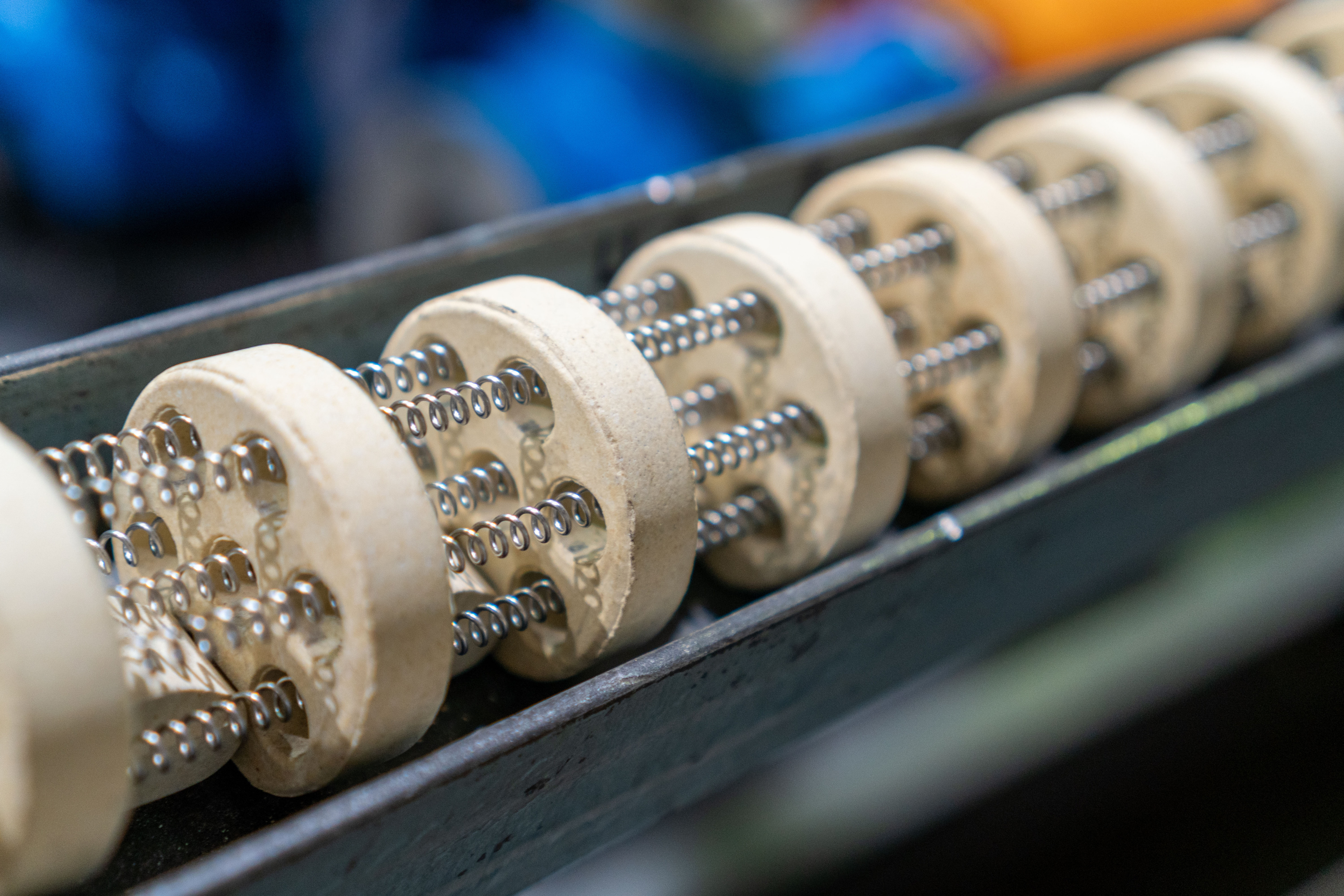

Open coil heaters place electric heating elements inside sealed pipe wells mounted in the tank. Heat radiates from the open coils and is transferred through the wall of the pipe well rather than directly from the heating element to the product. This indirect heat transfer results in significantly lower watt density at the product interface.
Key characteristics of OCH designs include:
- Very low surface heat flux at the product boundary
- Reduced risk of scorching, coking, or thermal degradation
- Ability to service heating elements without draining the tank
- Suitability for long hold times and continuous operation
This design trades compactness and rapid heat-up for product protection and maintainability, often requiring multiple wells to achieve the same total heat input as a single flanged immersion heater.

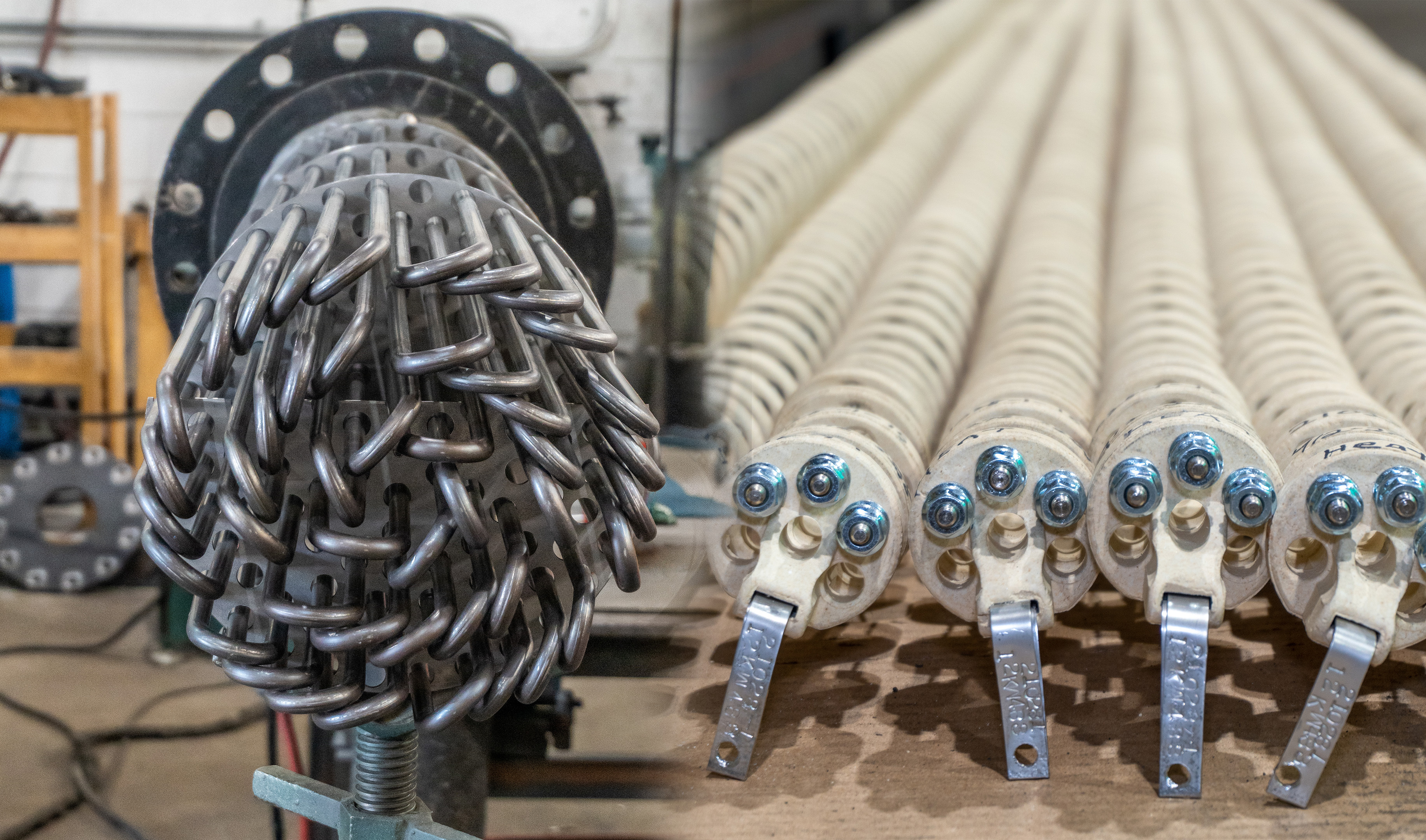

These heating methods may appear to be similar from the outside, but there are important distinctions.
Why Choosing the Right Heater Matters
The choice between flanged immersion heaters and open coil heaters directly affects:
Product Integrity
High film temperatures can degrade sensitive products even when bulk tank temperature appears acceptable. Open coil heaters inherently reduce this risk by maintaining low watt-density and isolating heating elements from direct product contact.
System Performance
Applications requiring rapid heat-up benefit from the high power density of flanged immersion heaters. Systems designed for steady-state operation or long hold times favor designs using open coil heaters.
Maintenance and Downtime
Open coil heater designs allow heating elements to be removed and replaced without draining the tank, significantly reducing downtime in large storage tanks or continuous-duty processes.
Mechanical Design
Nozzle availability, tank geometry, and available space often dictate whether a compact flanged solution or multiple closed wells are more practical.
Common Misuses and Misapplications
Despite their proven designs, both heater types are frequently misapplied. Common mistakes that HEAT sees include:
- Using flanged immersion heaters for viscous or heat-sensitive products without adequate circulation, leading to localized overheating and product damage
- Expecting an open coil heater design to deliver rapid heat-up, despite its intentional low watt density and gentle heating profile
- Selecting heaters based solely on installed cost, ignoring long-term operation and maintenance impacts
- Forcing one heater type to serve both startup and holding duties, when a hybrid approach may be more effective
Conclusion
Flanged immersion heaters and open coil heaters aren’t competing technologies; they’re complementary tools within the electric tank-heating toolbox. Flanged immersion heaters excel at speed, power density, and compact installation, while open coil heaters excel at product protection, maintainability, and long-term thermal stability.
The most successful tank heating systems result from matching heater characteristics to actual process demands, rather than forcing a single solution to meet all operating conditions. In many applications, combining both heater types provides the best balance between fast startup and safe, stable operation.
FAQ - Open Coil vs Flanged Heaters
The primary difference is watt density and element exposure. Flanged immersion heaters place tubular elements directly in the product for fast heat-up, while open coil heaters isolates the heating elements inside wells to reduce surface temperature and protect the product.
This design is best suited for viscous or heat-sensitive products, long hold times, or applications where draining the tank for maintenance is impractical.
Flanged immersion heaters are ideal when rapid heat-up, high power density, or limited nozzle availability are the primary design drivers.
Yes. Many systems use flanged immersion heaters for startup heating and a closed-well design using open coil heaters for low-watt-density holding.
Open coil heaters are generally easier to maintain because elements can be replaced without draining the tank.
