Proper Pipe Manifold Sizing for Balanced Flow

A HEAT Technical White Paper

In hydronic and industrial heat transfer systems, pipe manifolds are critical hydraulic components that directly affect flow balance, pressure drop, and thermal performance. When manifolds are undersized, systems become difficult to balance, pumps work harder than necessary, and temperature stability suffers.

HEAT has consistently observed that many flow and performance issues traced back to the field originate not with pumps or heat exchangers, but with improperly sized headers and manifolds. This technical white paper presents HEAT’s proven, field tested approach to pipe manifold sizing based on internal cross sectional area and velocity control.

This methodology provides a practical starting point for system design and can be easily verified using standard velocity and pressure drop checks. When applied correctly, it results in balanced flow, improved efficiency, simplified commissioning, and long term system reliability.

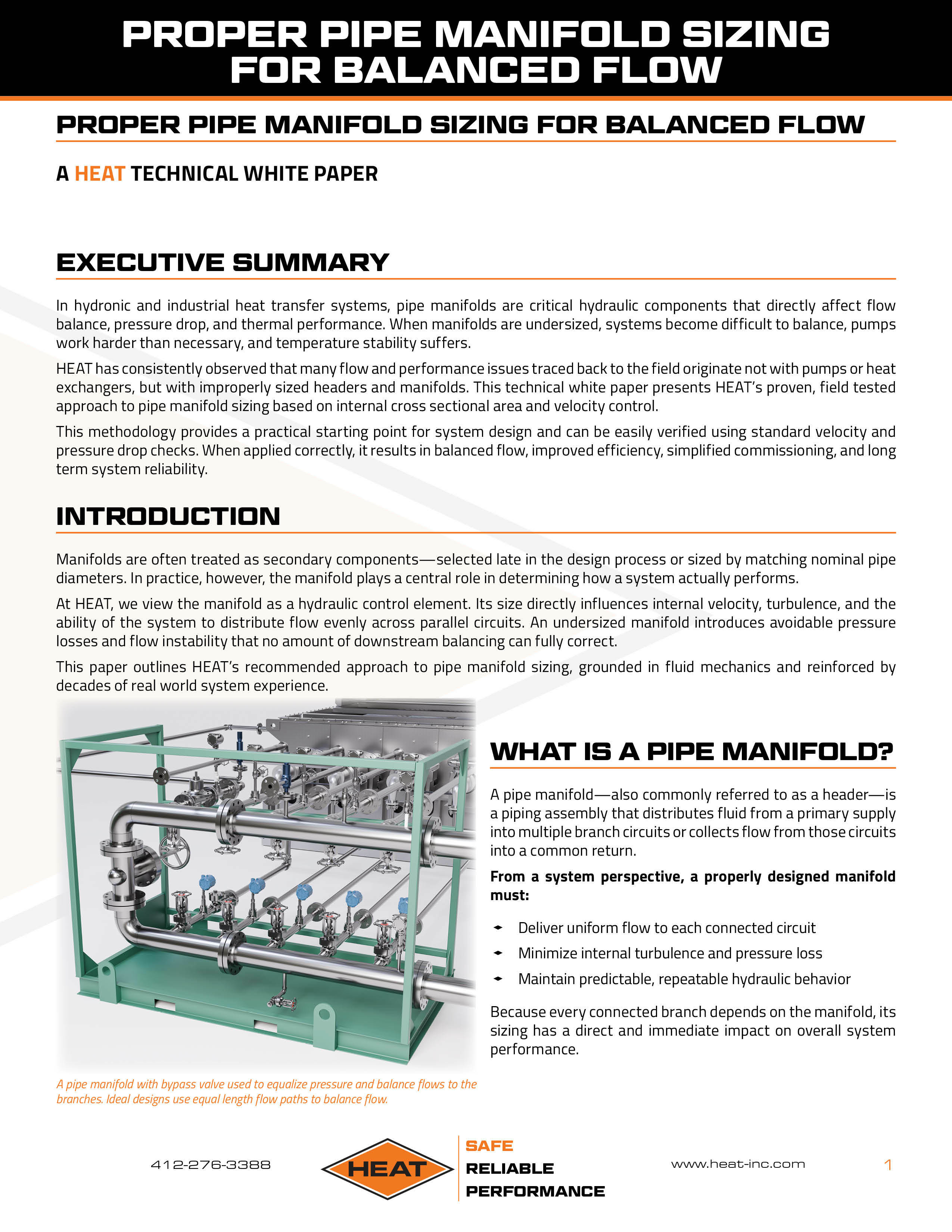

Download This White Paper

Introduction

Manifolds are often treated as secondary components—selected late in the design process or sized by matching nominal pipe diameters. In practice, however, the manifold plays a central role in determining how a system actually performs.

At HEAT, we view the manifold as a hydraulic control element. Its size directly influences internal velocity, turbulence, and the ability of the system to distribute flow evenly across parallel circuits. An undersized manifold introduces avoidable pressure losses and flow instability that no amount of downstream balancing can fully correct.

Here is HEAT’s recommended approach to pipe manifold sizing, grounded in fluid mechanics and reinforced by decades of real world system experience.

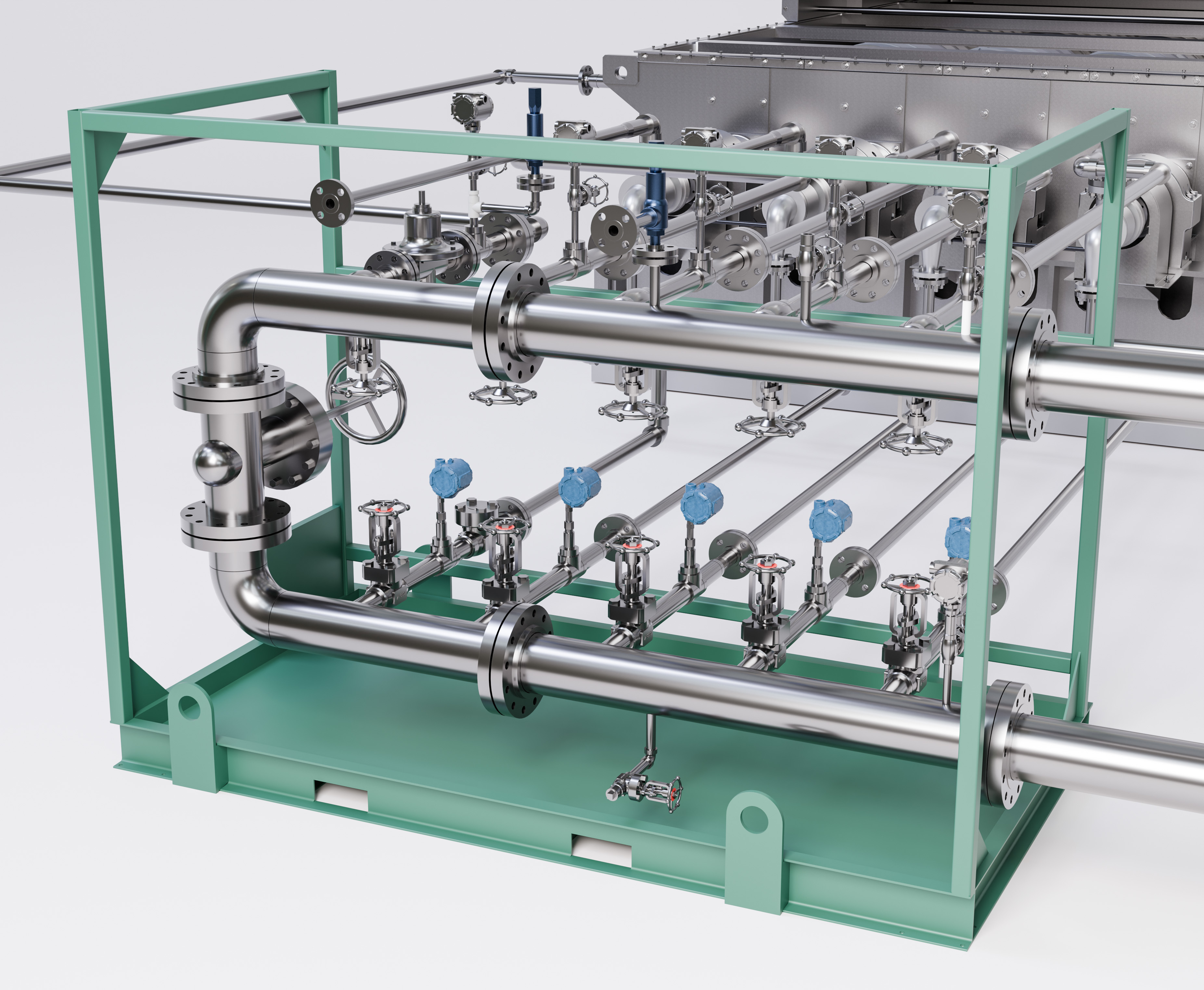

A pipe manifold with bypass valve used to equalize pressure and balance flows to the branches. Ideal designs use equal length flow paths to balance flow.

What Is a Pipe Manifold?

A pipe manifold—also commonly referred to as a header—is a piping assembly that distributes fluid from a primary supply into multiple branch circuits or collects flow from those circuits into a common return.

From a system perspective, a properly designed manifold must:

Deliver uniform flow to each connected circuit
Minimize internal turbulence and pressure loss
Maintain predictable, repeatable hydraulic behavior

Because every connected branch depends on the manifold, its sizing has a direct and immediate impact on overall system performance.

Why Manifold Sizing Matters

When a manifold is undersized, fluid velocity inside the header increases. Higher velocity leads to turbulence, increased pressure drop, and uneven flow distribution between circuits.

In the field, this often shows up as:

Zones that will not balance properly
Excessive pump head requirements
Temperature differences between supposedly identical circuits
Noise, vibration, and unstable operation

A properly sized manifold reduces internal velocity and allows flow to transition smoothly between the header and the branch connections. In HEAT’s experience, modest oversizing of a manifold is almost always preferable to under-sizing, as the hydraulic consequences of oversizing are minimal compared to the operational problems caused by excessive velocity.

HEAT’s Fundamental Manifold Sizing Principle

HEAT recommends sizing pipe manifolds based on internal cross sectional area, not nominal pipe diameter.

Minimum Requirement:

The internal cross-sectional area of the manifold must be greater than the combined internal cross sectional areas of all connected branch pipes.

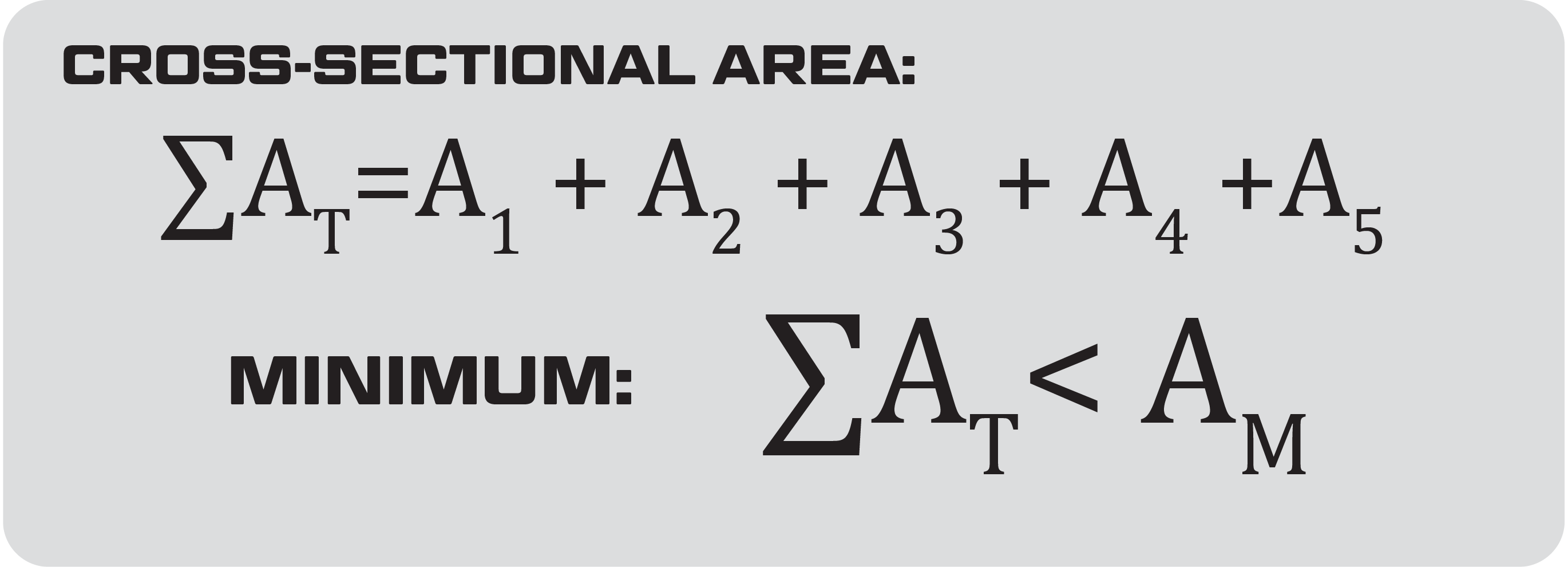

Minimum Manifold Area ≥ Sum of Branch Areas

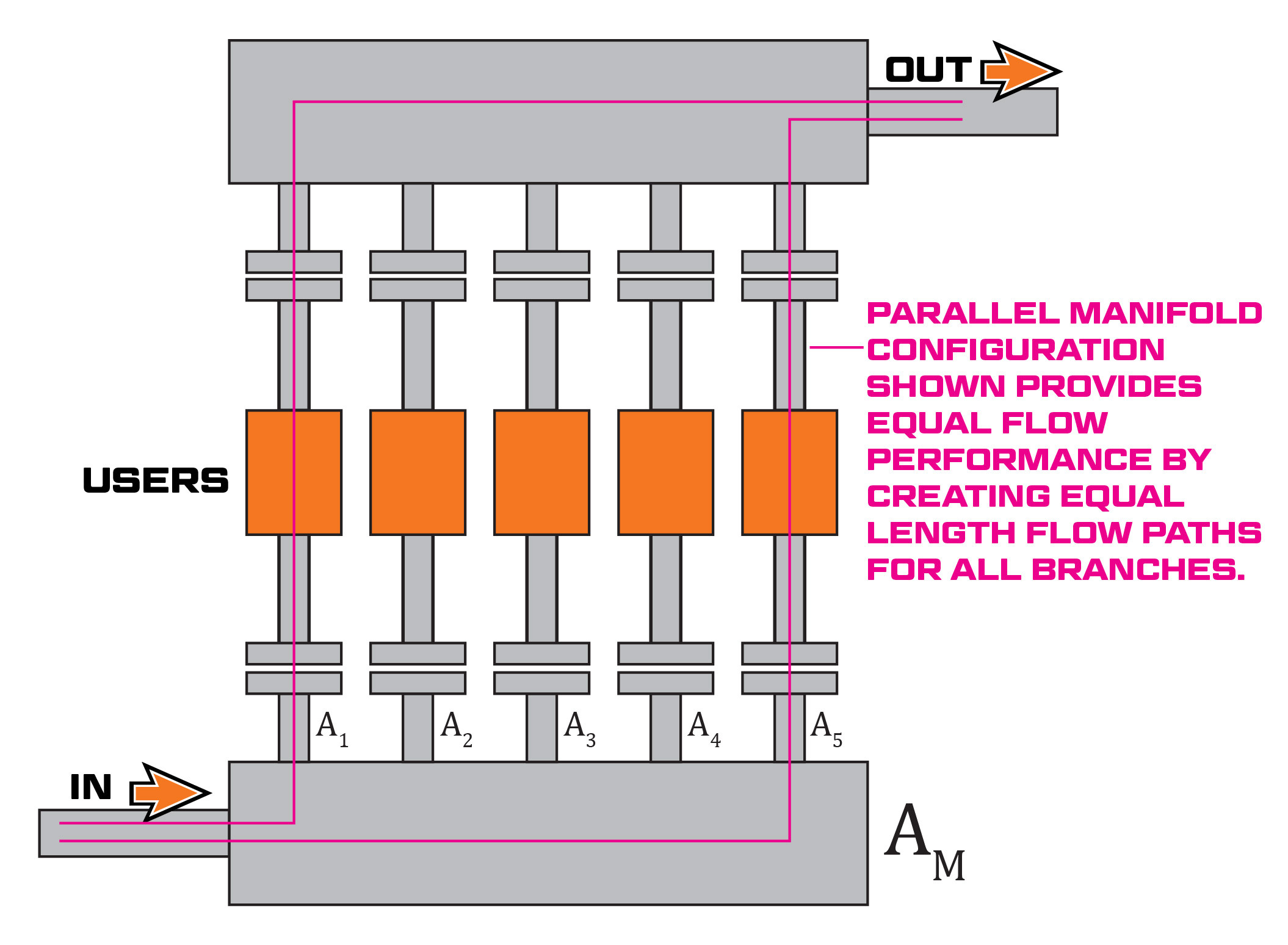

When applied to the sample to the right:

Manifold Area Required (A_M) ≥ Sum of Branch Areas (A₁ + A₂ + A₃+ A₄ + A₅)

This approach ensures that the manifold does not become a flow restriction at design conditions and that velocity within the header remains controlled. All calculations must be performed using internal pipe diameters, as internal dimensions vary significantly by material and schedule

Recommended Velocity and Performance Targets

While the area based rule establishes a minimum sizing threshold, HEAT strongly recommends verifying manifold and branch sizes by checking velocity and pressure drop at design flow.

As a general guideline, HEAT targets fluid velocities of approximately 7 ft/s or less at design conditions. This range consistently provides a strong balance between:

Hydraulic performance
System efficiency
Material cost
Long term reliability

Systems designed within this range are easier to balance, operate more quietly, and maintain stable thermal performance over time. Consult the chart below to find flow and pressure drop values for standard schedule 40 pipe.

Manifold Sizing Methodology

HEAT recommends the following sizing process:

Determine the internal diameter of each branch pipe
Calculate the internal cross sectional area of each branch (or consult the chart below)
Add all branch areas together
Select a manifold pipe size with an internal area greater than this total

This method provides a clear, defensible starting point for manifold selection. Final sizing should always be verified against actual operating conditions, fluid properties, and allowable pressure drop.

SCHEDULE 40 PIPE SIZE AND INTERNAL CROSS-SECTIONAL AREA

Nominal Size	Outer Diameter (in)	Inner Diameter (in)	Cross-Sectional Area (in²)
1/8”	0.405	0.269	0.057
1/4”	0.540	0.364	0.104
3/8”	0.675	0.493	0.191
1/2”	0.840	0.622	0.304
3/4”	1.050	0.824	0.533
1”	1.315	1.049	0.864
1-1/4”	1.660	1.380	1.496
1-1/2”	1.900	1.610	2.036
2”	2.375	2.067	3.356
2-1/2”	2.875	2.469	4.788
3”	3.500	3.068	7.393
3-1/2”	4.000	3.548	9.887
4”	4.500	4.026	12.730
5”	5.563	5.047	20.006
6”	6.625	6.065	28.890
8”	8.625	7.981	50.027
10”	10.750	10.020	78.854
12”	12.750	11.938	111.932
14”	14.000	13.126	135.318
16”	16.000	15.000	176.715
18”	18.000	16.876	223.681

Common Manifold Sizing Mistakes

Based on field observations, HEAT most commonly encounters the following errors:

Matching manifold diameter to branch diameter
Ignoring internal diameter differences between pipe materials
Sizing based on minimum or partial load flow rather than design flow
Under-sizing headers to reduce material cost or footprint

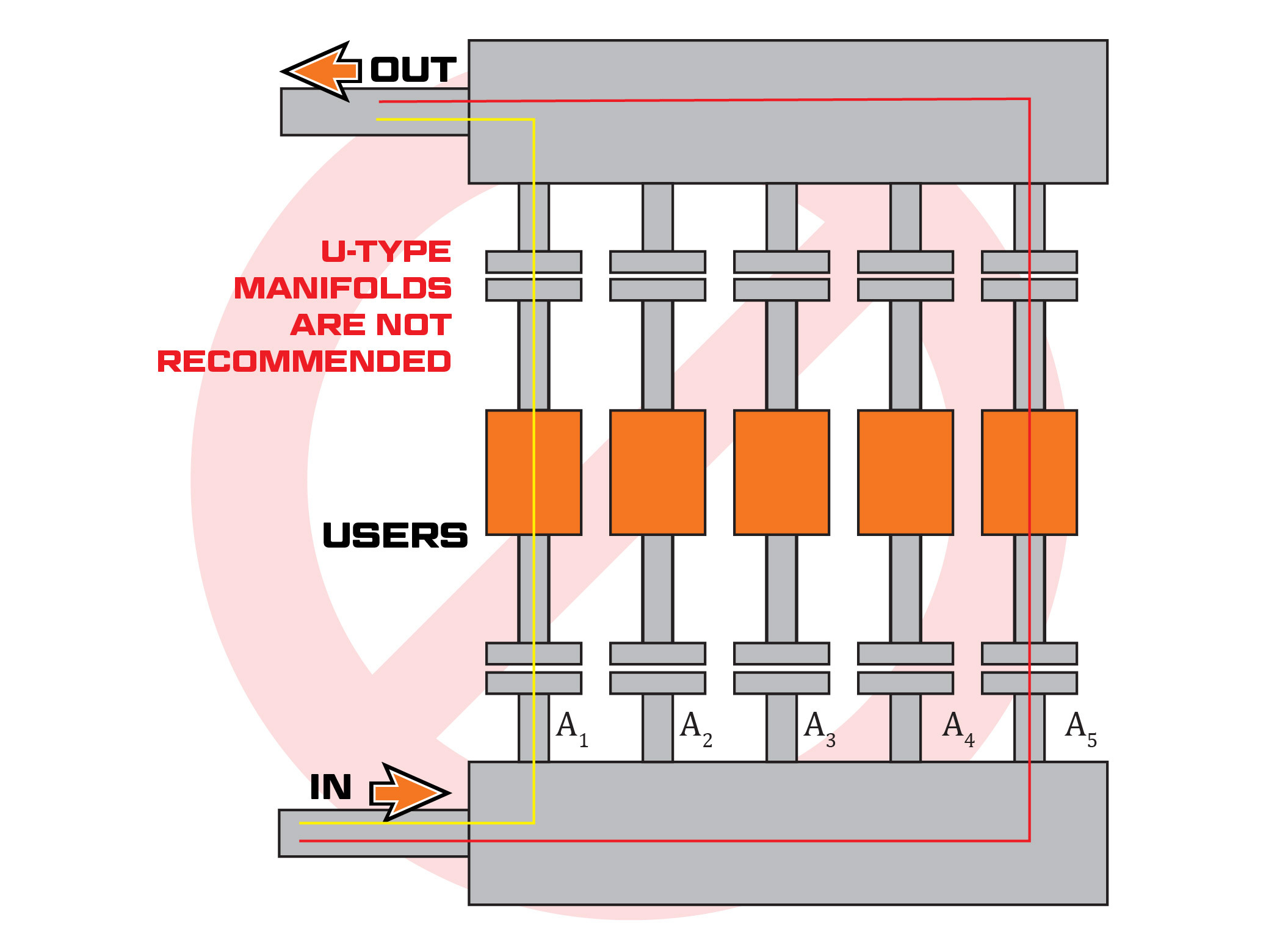

Failing to account for unequal equivalent flow paths - Use equal length flow paths for all branches.

These mistakes frequently lead to systems that underperform and require corrective modifications after installation.

Conclusion

Proper pipe manifold sizing is a fundamental requirement for reliable system operation. At a minimum, the manifold’s internal cross sectional area must exceed the combined area of all connected branch pipes. For optimal performance, HEAT recommends verifying sizing by checking velocity and pressure drop at design flow.

When manifolds are sized correctly, systems are easier to balance, operate more efficiently, and deliver consistent thermal performance over their entire service life. At HEAT, we view correct manifold sizing not as an optimization—but as a basic requirement of sound heat transfer system design.

FAQs about Manifold Sizing

What happens if a manifold is undersized?

Internal velocity increases, pressure drop rises, and flow becomes unevenly distributed across circuits.

Is oversizing a manifold acceptable?

Yes. Slight oversizing improves flow stability and reduces balancing issues with little downside.

Does manifold sizing affect pump selection?

Absolutely. Poor manifold sizing increases system resistance and can force pumps to operate outside their optimal efficiency range.

Is this method limited to hydronic systems?

No. This approach applies to many industrial heat transfer and fluid distribution systems and should be verified with velocity and pressure drop calculations.
