Temperature Control Challenges in Chemical Reactors
Chemical reactors rarely forgive temperature mistakes. In many processes, a few degrees can mean the difference between a stable, repeatable reaction and off-spec product, reduced yield, accelerated fouling, or a safety incident. That is why temperature control in chemical reactors is not just a utility—it is a core element of process safety, consistency, and long-term reliability.
Reactor duty often extends well beyond reaching a single setpoint. Many chemical reactors require controlled ramp rates, stable hold periods, rapid response to reaction heat release, and dependable heating and cooling when reaction conditions shift. When combined with changing viscosities, aggressive chemistries, fouling tendencies, or pressure constraints, reactor heating and cooling systems become one of the most critical parts of the process.
HEAT has years of experience supporting these complicated processes. Starting from our system-level approach, our sales engineers work with you to make sure that your thermal control gives you exactly the safe & reliable performance you need.
Why Chemical Reactor Temperature Control Is Challenging
One of the most common temperature control challenges in chemical reactors is thermal lag. Although heaters and controls may respond quickly, actual product temperature is influenced by the vessel wall, jacket design, internal mass, agitation, and fluid properties. In jacketed reactor temperature control applications, this lag can lead to temperature overshoot, slow recovery, or unstable control if the system is not engineered correctly.
Heat transfer variability adds another layer of complexity. As reactions proceed, materials often change viscosity, phase, or composition, altering heat transfer performance. A chemical reactor heating system that performs well at startup may struggle later in the batch if it was not designed for the full operating range.
Reactor hot spots are also a significant concern. Poor circulation, excessive watt density, or improperly matched heater selection can overheat the heat transfer medium or vessel surface. In chemical and pharmaceutical processes, hot spots can damage product, shorten thermal fluid life, and increase process risk.
What Effective Reactor Heating and Cooling Systems Require
Reliable temperature control for chemical reactors begins with engineered system design, not assumptions. The right solution depends on each unique combination of reactor configuration, operating temperature range, ramp-rate requirements, heating and cooling duty, heat transfer media, available utilities, and the level of control precision the process demands.

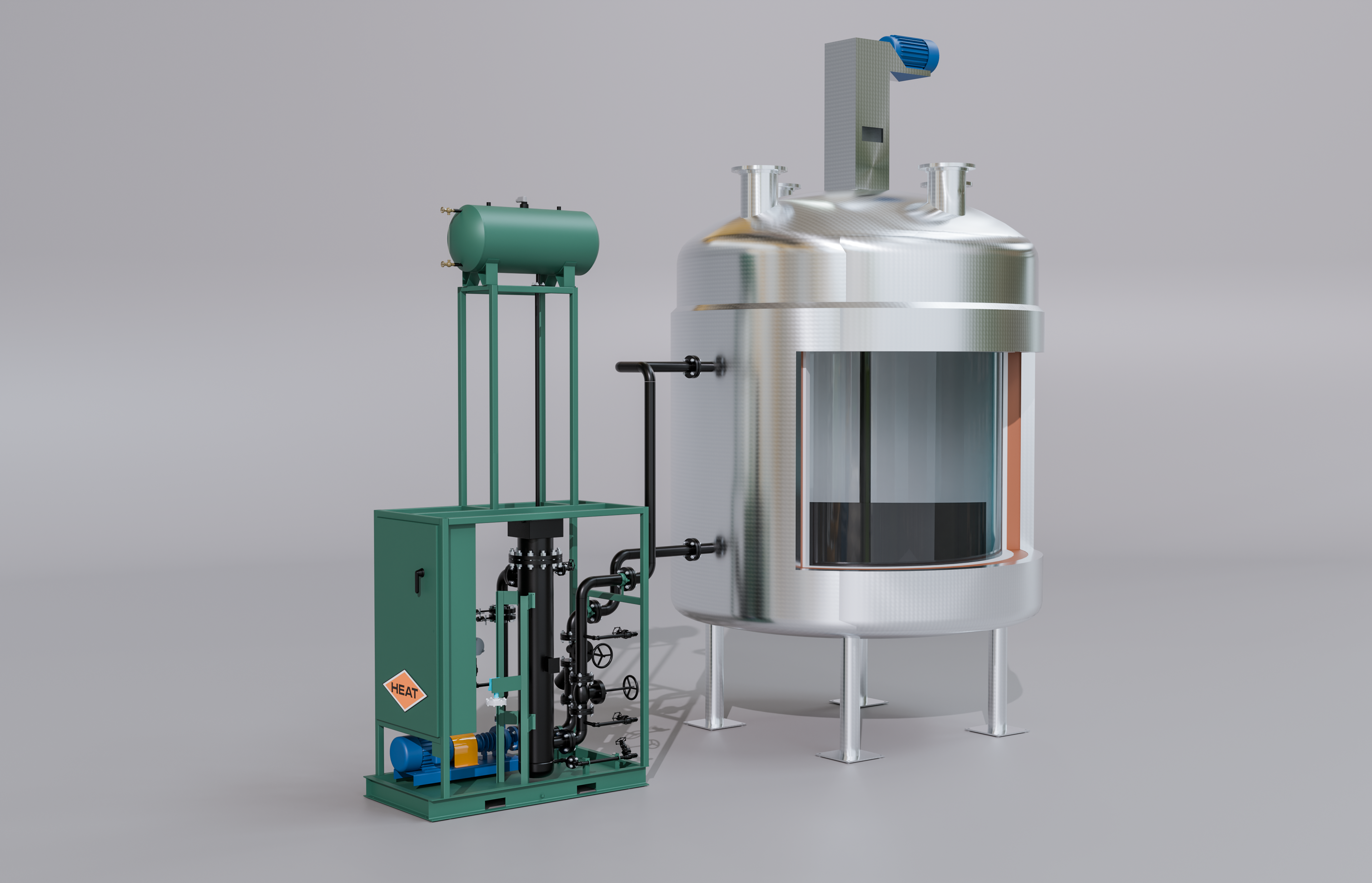

In many applications, indirect heating for chemical processes provides the most stable and controllable solution. Circulating a secondary medium—such as thermal oil, water, or water/glycol—through a jacket or external loop allows heat to be applied evenly while keeping the heat source separate from the process. This approach improves reactor temperature uniformity, reduces thermal stress, and enhances safety in sensitive or hazardous applications.
Controls are equally important for reactor thermal management. A properly engineered system accounts for temperature sensor placement, flow stability, heater protection, cooling integration, alarms, and interlocks. The goal of a well-engineered temperature control system is not simply to reach temperature, but to do so repeatedly, safely, and without stressing the reactor or the process.
Where HEAT Fits in Chemical Reactor Temperature Control
When HEAT designs temperature control for chemical reactors, we take a system-level approach and keep your whole process in mind. For these applications, the appropriate solution may include packaged thermal fluid systems, circulation heaters, immersion heaters, indirect heating skids, and integrated control systems—engineered around the reactor’s actual operating conditions.
Rather than relying on generic catalog assumptions, HEAT designs reactor heating and cooling systems to match real process demands. This engineering-first approach is especially important in batch reactor temperature control applications where uptime, product consistency, and safety all carry weight. When temperature control is critical, the system behind it must be deliberate, robust, and proven.
FREQUENTLY ASKED QUESTIONS
The biggest challenges include maintaining stable product temperature as conditions change during heating, reaction, holding, and cooling. Thermal lag in reactors, temperature overshoot, reactor hot spots, and changing fluid properties all contribute to control difficulty.
Indirect heating circulates a secondary heat transfer medium—such as thermal oil or water/glycol—through a jacket or heat transfer surface instead of applying heat directly to the product. This improves temperature uniformity, protects sensitive materials, and supports more precise chemical process temperature control.
Hot spots are minimized by matching the heating method to the application, controlling heat input carefully, selecting appropriate watt density, and designing the system for stable circulation and responsive control. Engineered thermal fluid systems for reactors are especially important for sensitive or reactive processes.
Pharmaceutical processes require precise, repeatable temperature control to protect product quality, maintain batch-to-batch consistency, support validated processes, and reduce the risk of revalidation or downtime.
