The Heart of the System: How to Select the Right Pump for Your Process

In any circulating process, the pump is the heart of the system. It doesn’t create heat or cooling on its own—it makes the entire process possible by keeping fluid moving at the right rate and pressure. Selecting the correct pump establishes the operating conditions for everything downstream, from heaters and heat exchangers to control valves and return piping. When the pump is properly matched to the system, flow is stable, heat transfer is consistent, and control becomes predictable. The result is higher energy efficiency, longer equipment life, reduced maintenance, and a process that performs the way it was designed to. Simply put, when the heart of the system is right, everything else works better.

Why a centrifugal pump, most of the time?

HEAT almost always recommends centrifugal pumps for thermal fluid systems. Other designs (gear/positive displacement and turbine) have their place, but a centrifugal pump is usually the best everyday choice for heat transfer systems for a variety of reasons:

Built for circulation, not just movement

Circulating systems typically need continuous, steady flow rather than extreme pressure. Centrifugal pumps are designed exactly for this kind of duty. They move large volumes of fluid smoothly through piping, heat exchangers, heaters, and tanks, making them a natural fit for closed‑loop and recirculation applications.

Unlike some other pump types, centrifugal pumps don’t force a fixed volume of fluid through the system. Instead, they respond naturally to changes in system resistance. As valves open and close or operating conditions change, the pump adjusts along its performance curve, helping maintain stable and predictable circulation.

Flexible and forgiving in real‑world systems

No process system stays perfectly static. Over time, piping layouts evolve, heat loads change, and operating conditions shift. One of the key advantages of a centrifugal pump is its flexibility. Performance can often be adjusted through speed control or minor mechanical changes, allowing the pump to stay well‑matched to the system even as requirements evolve.

Centrifugal pumps are also more tolerant of the realities of industrial operation. They generally handle temperature variation, minor debris, and fluid changes better than pump types that rely on very tight internal clearances. This makes them especially well-suited for long‑term, continuous service.

Efficient, quiet, and reliable

Because centrifugal pumps operate with fewer internal contact points than positive‑displacement designs, they tend to run more quietly and with less vibration. Lower mechanical stress means reduced wear on seals, bearings, and piping—leading to longer equipment life and more predictable maintenance.

From an energy standpoint, centrifugal pumps can be selected to operate near their most efficient point, delivering the required flow with minimal wasted power. This balance of efficiency and durability is one of the main reasons they are so widely used in circulation service.

Well-suited for heat‑transfer applications

In thermal and process heating systems, fluid properties can change with temperature and age. Centrifugal pumps do not rely on the fluid itself for internal lubrication in the same way some other pump types do, making them a reliable choice for hot liquids and thermal fluids. This reliability helps protect downstream equipment and supports consistent heat transfer across the system.

When other pump types are used

While centrifugal pumps are the most common choice, they are not the right solution for every application. Positive‑displacement or specialty pumps may be selected when very high pressures, extremely low flow rates, or precise metering are required. In circulation service, however, these conditions are the exception rather than the rule.


How to Select the Right Pump for a Process

Selecting the right pump isn’t about picking a model from a catalog—it’s about understanding what the process actually needs and matching the pump to those conditions. The pump is the heart of the system, where correct sizing determines whether everything downstream performs as intended.

Step 1: Understand what the process needs from the pump

Every pump selection starts with two fundamental questions:

  • How much fluid needs to move? (flow)
  • How hard does the pump need to push? (head)
  • Flow as the system’s heartbeat and head as its blood pressure—both must be right for the system to function properly.

At this stage, focus on:

  • Required circulation rate
  • Whether flow must be continuous or variable
  • The role the pump plays (circulation, transfer, or service to multiple users)
  • This step ensures the pump supports the process rather than forcing the process to adapt to the pump.

Step 2: Understand the system the pump is working in

Pumps don’t operate in isolation. Piping, valves, heat exchangers, heaters, and elevation changes all create resistance that the pump must overcome. System resistance increases as flow increases, meaning the pump must be matched to the actual system curve, not just a theoretical flow number.

At this stage, the focus is on:

  • Pipe length, diameter, and layout
  • Elevation changes
  • Pressure drops through equipment
  • Whether the system is simple or has multiple branches
  • This step prevents under‑ or over‑sizing, both of which can lead to inefficiency and reliability problems.

These considerations – as well as installing appropriate safety interlocks - help protect both the pump and the process owner’s uptime.

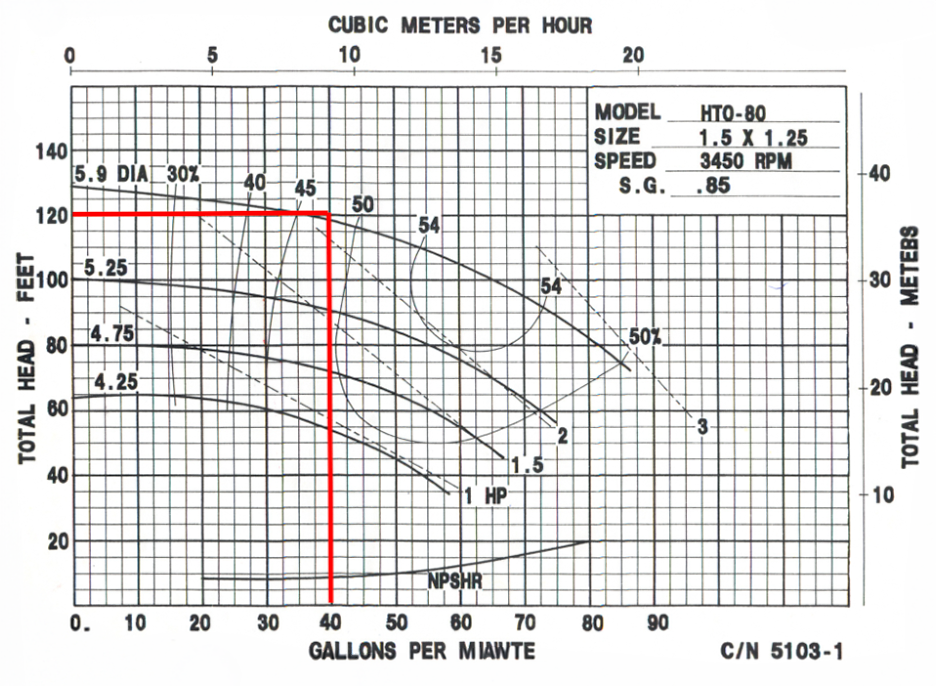

Step 3: Select a pump that operates efficiently at the required duty point

Once flow and system resistance are understood, candidate pumps are evaluated to see how they perform at that operating point. Selecting a pump that meets the requirement near the top of its efficiency curve, sometimes referred to as the efficiency “sweet spot”.

This translates into:

  • Lower energy consumption
  • Quieter operation
  • Reduced wear on seals and bearings

This is where focusing on lifecycle value outweighs just looking at the initial cost. Choosing a pump that operates efficiently reduces energy use, cuts maintenance, and extends equipment life—delivering better long-term savings and reliability.

Step 4: Verify suction conditions and reliability margins

A pump can only perform well if liquid can reach it easily.  The importance of checking suction conditions to avoid cavitation, which can cause noise, vibration, and long‑term damage.

Here, you should confirm:

  • Adequate liquid level – Running a pump dry can cause damage!
  • Adequate pressure at the pump inlet – proper expansion tank placement can greatly help provide required Net Positive Suction Head (NPSH)
  • Reasonable suction piping layout
  • Compatibility with operating temperature and fluid properties

Step 5: Confirm compatibility with the fluid and operating environment

Centrifugal pumps are often favored in heat‑transfer service because they tolerate hot fluids and real‑world operating conditions better than many alternatives. This adds up to greater reliability over the pump’s lifetime.

The pump must be compatible with:

  • Fluid temperature
  • Fluid cleanliness and lubricity
  • Continuous or intermittent duty
  • The site’s electrical and environmental condition

Step 6: Plan for control, flexibility, and future changes

Finally, think about the overall context of how the system will be controlled and how it might change over time. Adding pump flexibility through VFD speed control or planning for possible impeller trim adjustment today may pay dividends tomorrow when conditions evolve.

Thinking ahead about this flexibility allows for:

  • Easier startup and commissioning
  • Better temperature or process control
  • Reduced risk if the process expands or operating conditions shift

The Bottom Line:

Selecting the right pump is one of the most impactful decisions you can make in a heat‑transfer system. When flow, head, efficiency, suction conditions, and future flexibility are considered together, the pump becomes a stabilizing force rather than a source of problems. In most circulation applications, a properly selected centrifugal pump delivers the balance of reliability, efficiency, and adaptability that real‑world thermal systems demand. By treating the pump as an integral part of the process—not just a piece of rotating equipment—you set the foundation for consistent heat transfer, predictable control, and long‑term system performance.
