Valves in Thermal Fluid Systems: The Key to Tight Temperature Control
Thermal fluid systems deliver precise, repeatable temperature control in a closed loop without the elevated pressure steam requires. That control does not come from the heater alone. It comes from how the system directs, balances, isolates, and modulates flow, which is where valves become essential.

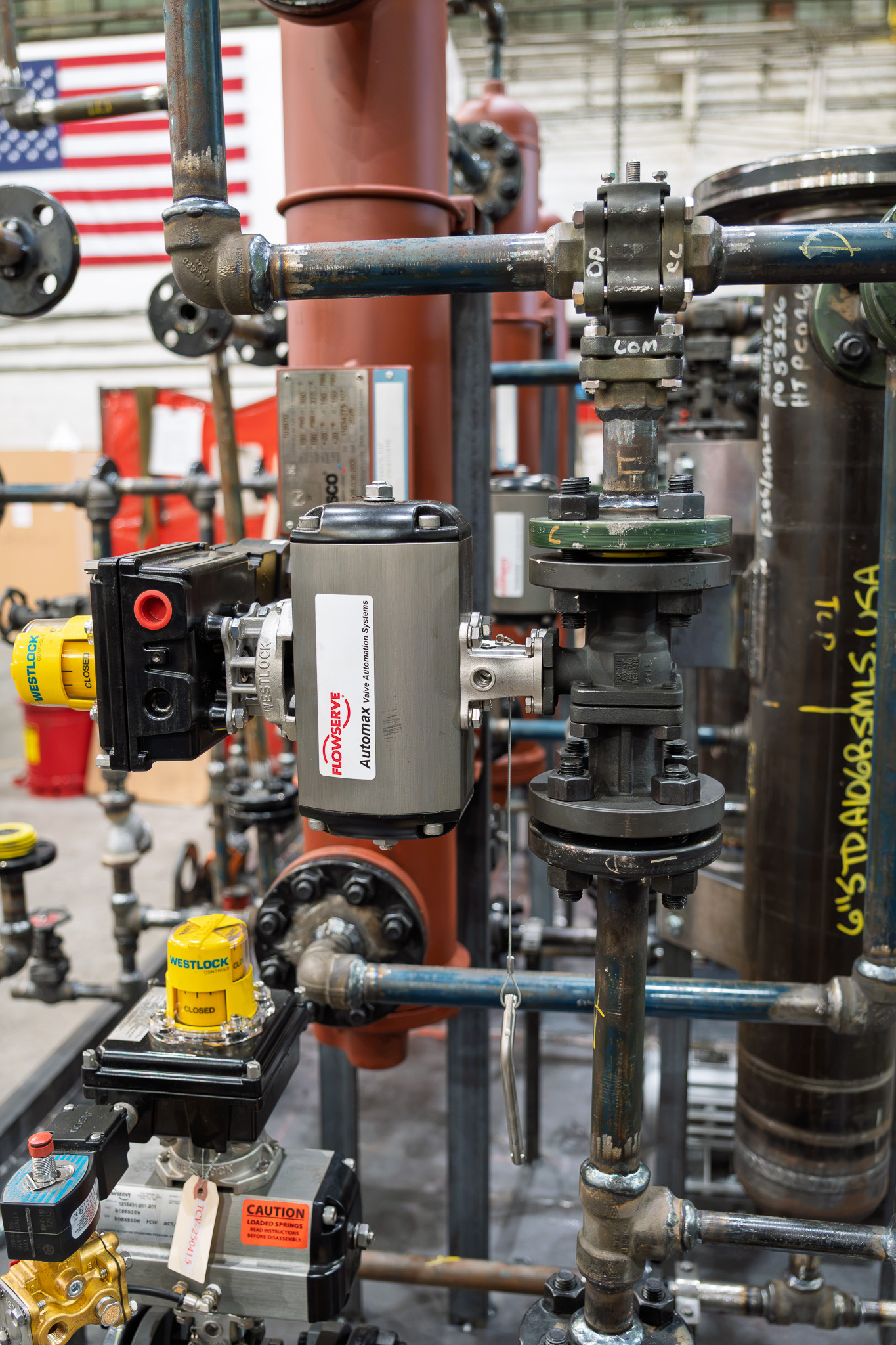

Why Valve Strategy Defines System Performance
As processes demand more performance and loops grow more complex (multiple users, parallel branches, combined heating and cooling, bypass lines, redundancy), small flow changes create large process swings. In a closed loop, valves are the components that:
- Isolate equipment for maintenance
- Balance parallel branches so each user receives the correct flow
- Throttle and modulate flow to stabilize temperature and protect equipment
- Route flow through heaters, exchangers, and bypass paths
Valve selection is a core design decision, not a secondary detail.

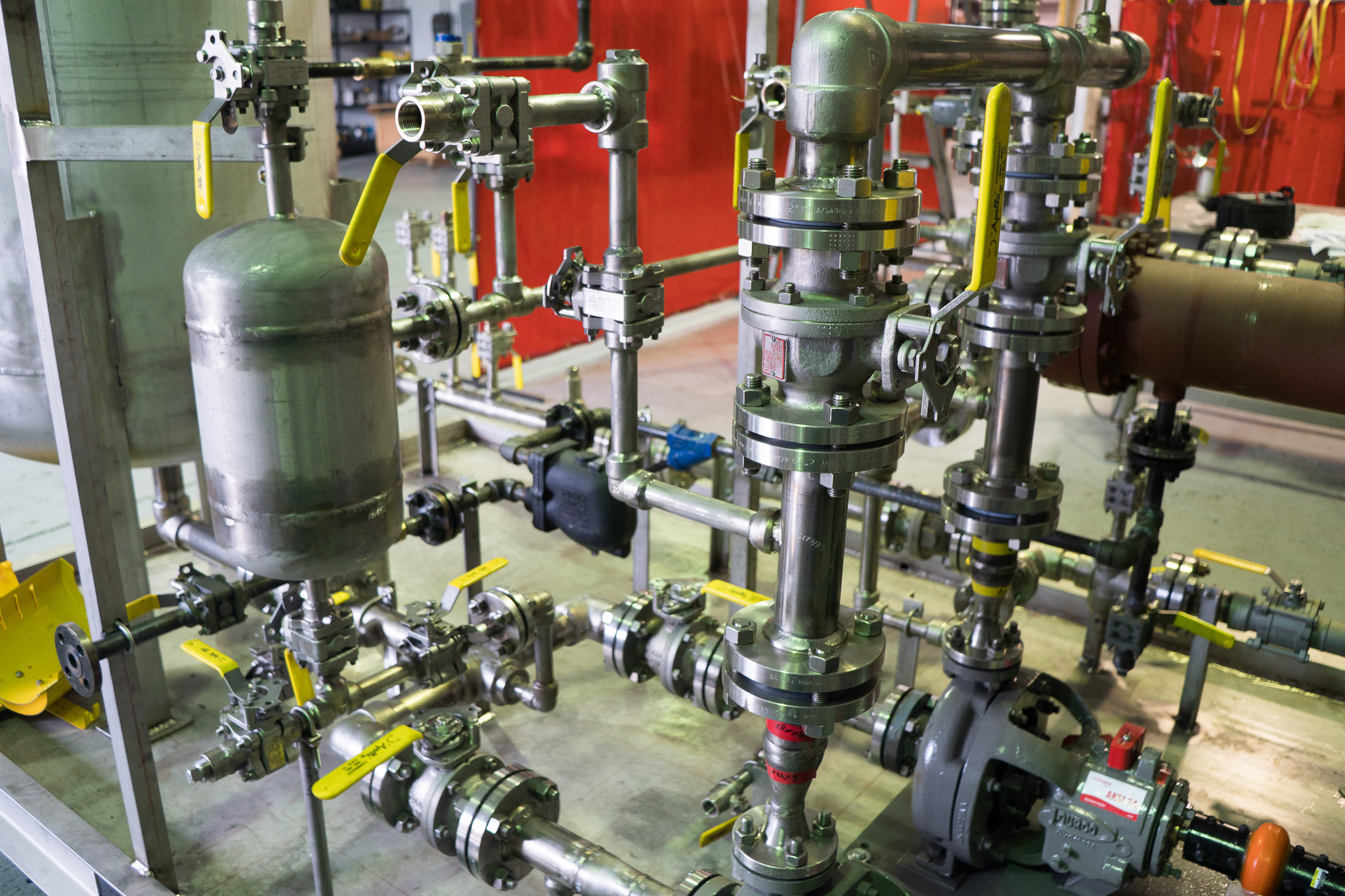

Valve Types and Their Intended Use
Globe Valves
Best for precise throttling and balancing. Globe valves provide more positive shutoff than many types but introduce higher pressure drop, which must be accounted for in system design.

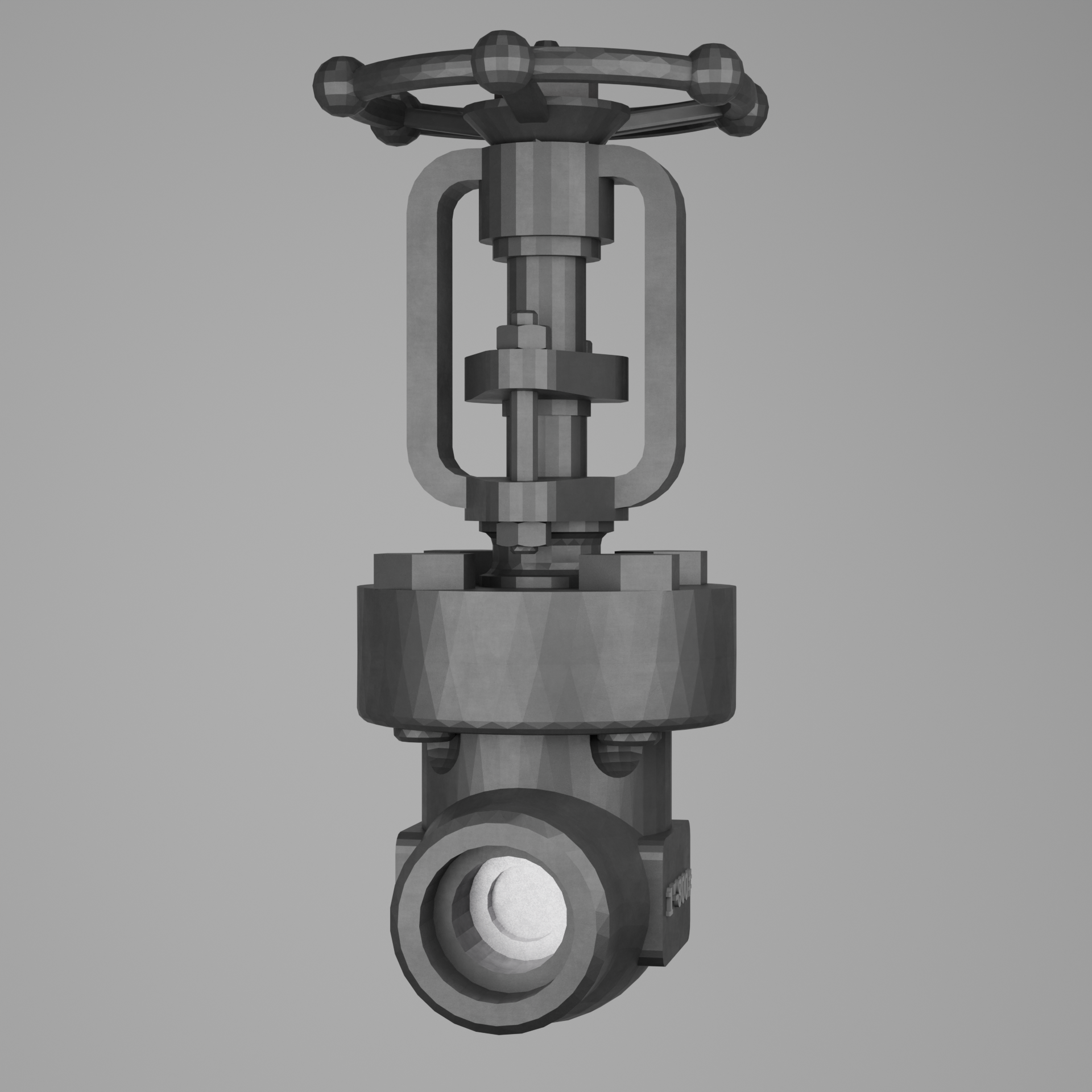

Gate Valves
Best for low-restriction isolation—fully open or fully closed. Gate valves are not for throttling; partial opening causes vibration, erosion, and seat damage. They're a good choice for isolating the system for maintenance, for fill & drain lines, or for air-bleeds at the system's high points.

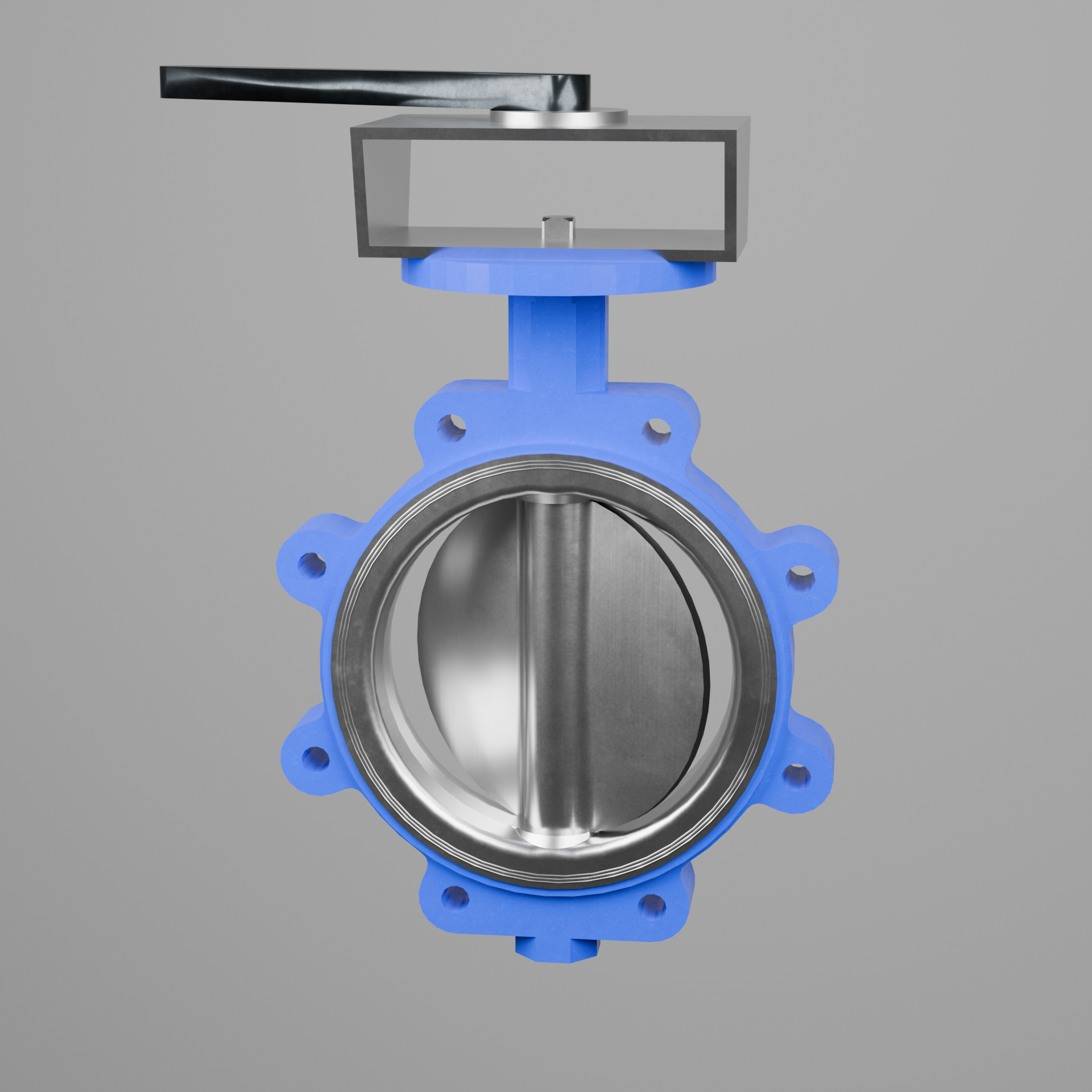

Butterfly Valves
Compact and quick-acting for larger lines, with moderate throttling capability. Tight shutoff at elevated temperatures depends on design and construction—do not assume it.

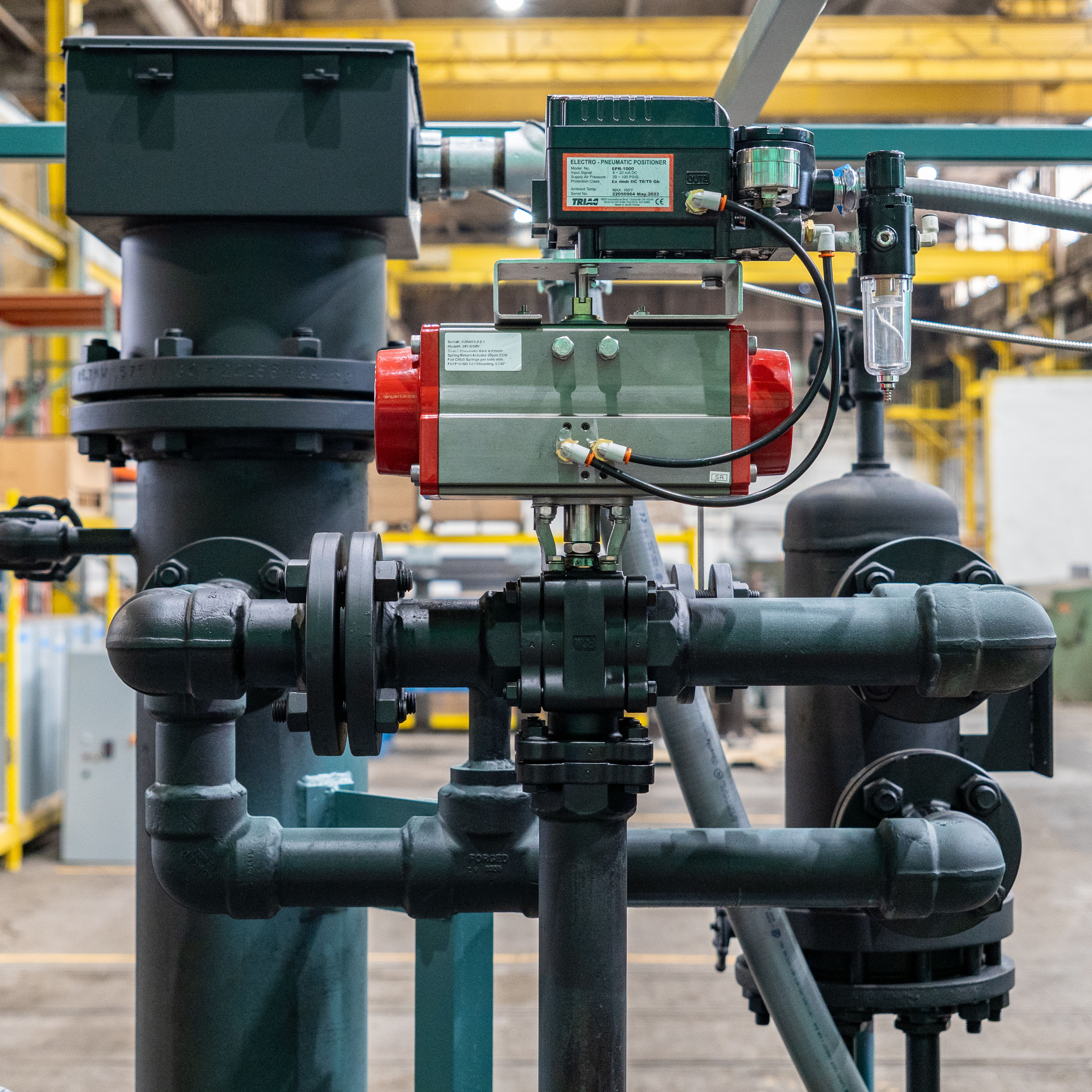

Control Valves (Actuated)
Used for automatic modulation based on temperature or pressure control loops. Control valves are where the system does the real work of staying stable, integrated with the PLC or DCS.
3-Way Valves: How Temperature Control Actually Happens
In most thermal fluid systems, the difference between stable, repeatable temperature control and constant operator intervention comes down to how flow is routed—not just how much heat is added. This is where 3-way control valves become critical.

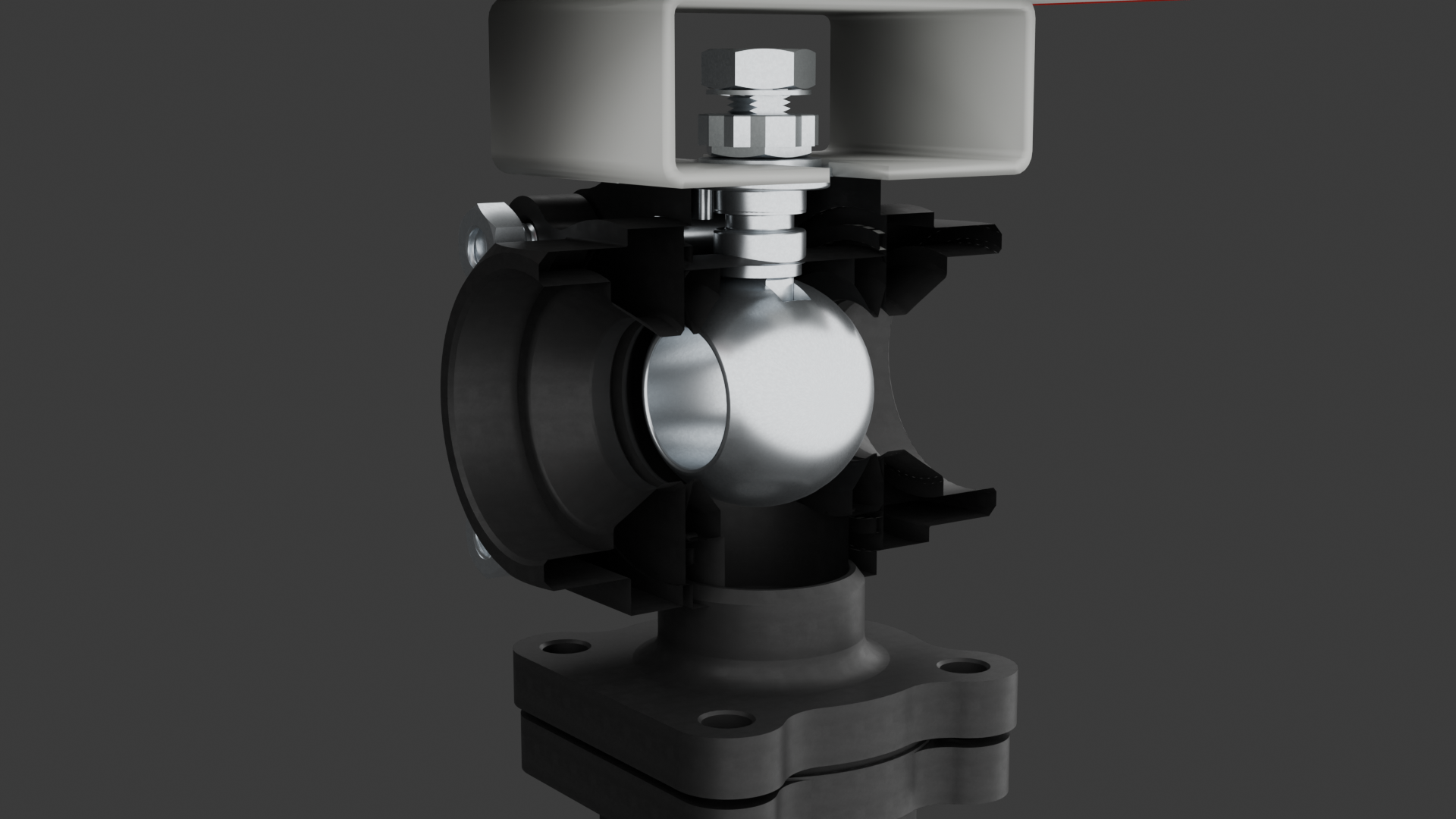

A 3-way control valve continuously reallocates flow between two paths:
- Through a heater or exchanger (energy input or output)
- Through a bypass line (no energy exchange)
This enables fine temperature adjustment without cycling major equipment on and off, which reduces thermal stress, improves stability, and extends component life.
Mixing vs. Diverting: Two Fundamentally Different Strategies

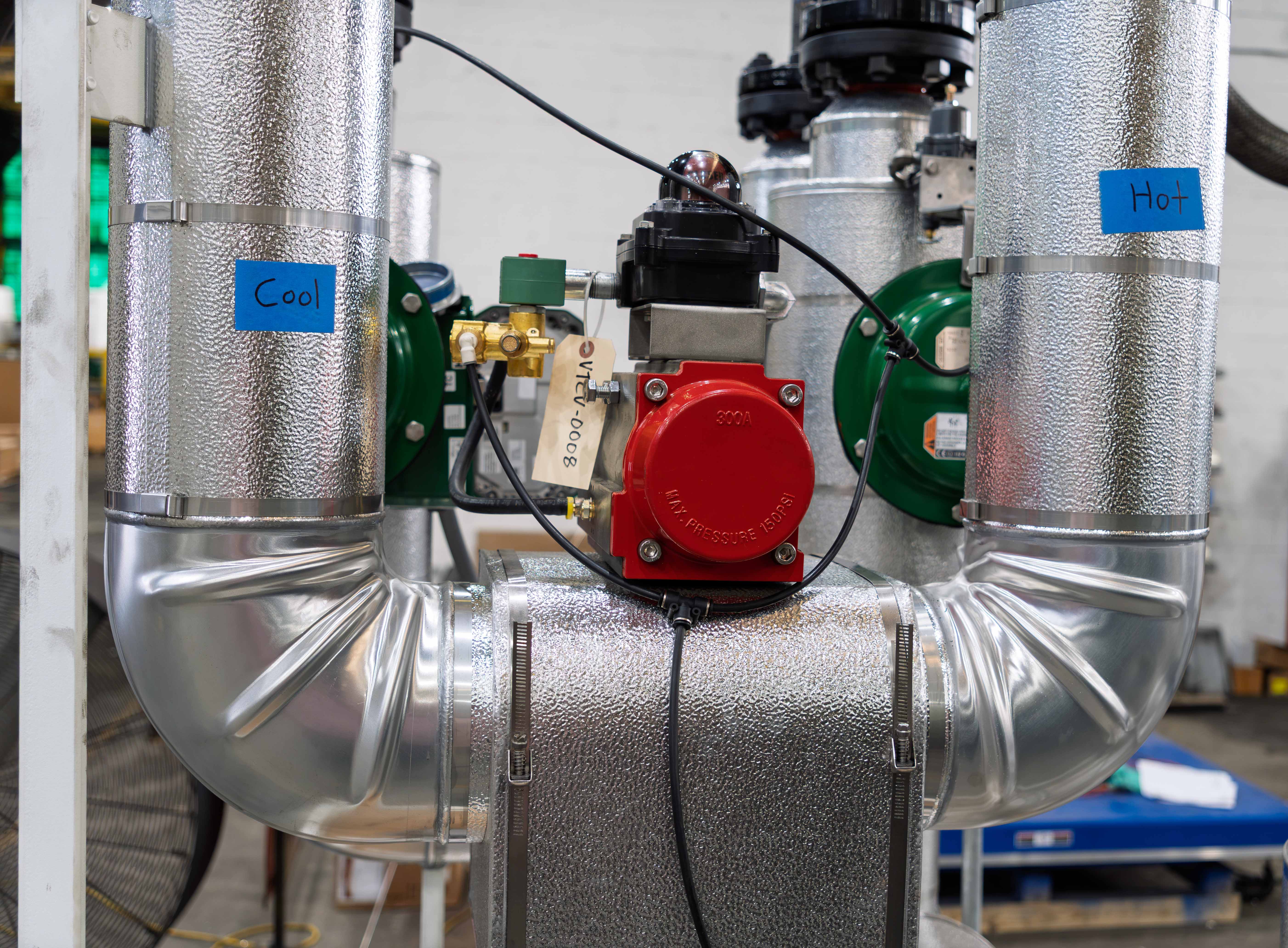

Mixing Valves (Two Inlets → One Outlet)
- Blend hot and cooler streams to achieve a target temperature
- Common in process outlet temperature control
- Smoother control response because temperature is averaged at the valve
Diverting Valves (One Inlet → Two Outlets)
- Route flow between two paths—typically heater or exchanger vs. bypass
- Common in heater or cooling loop control
- Maintain constant upstream conditions while changing system response
HEAT systems commonly use both, with configuration defined by port commonality and fail position (e.g., side-port or bottom-port common, fail left/right/bottom).

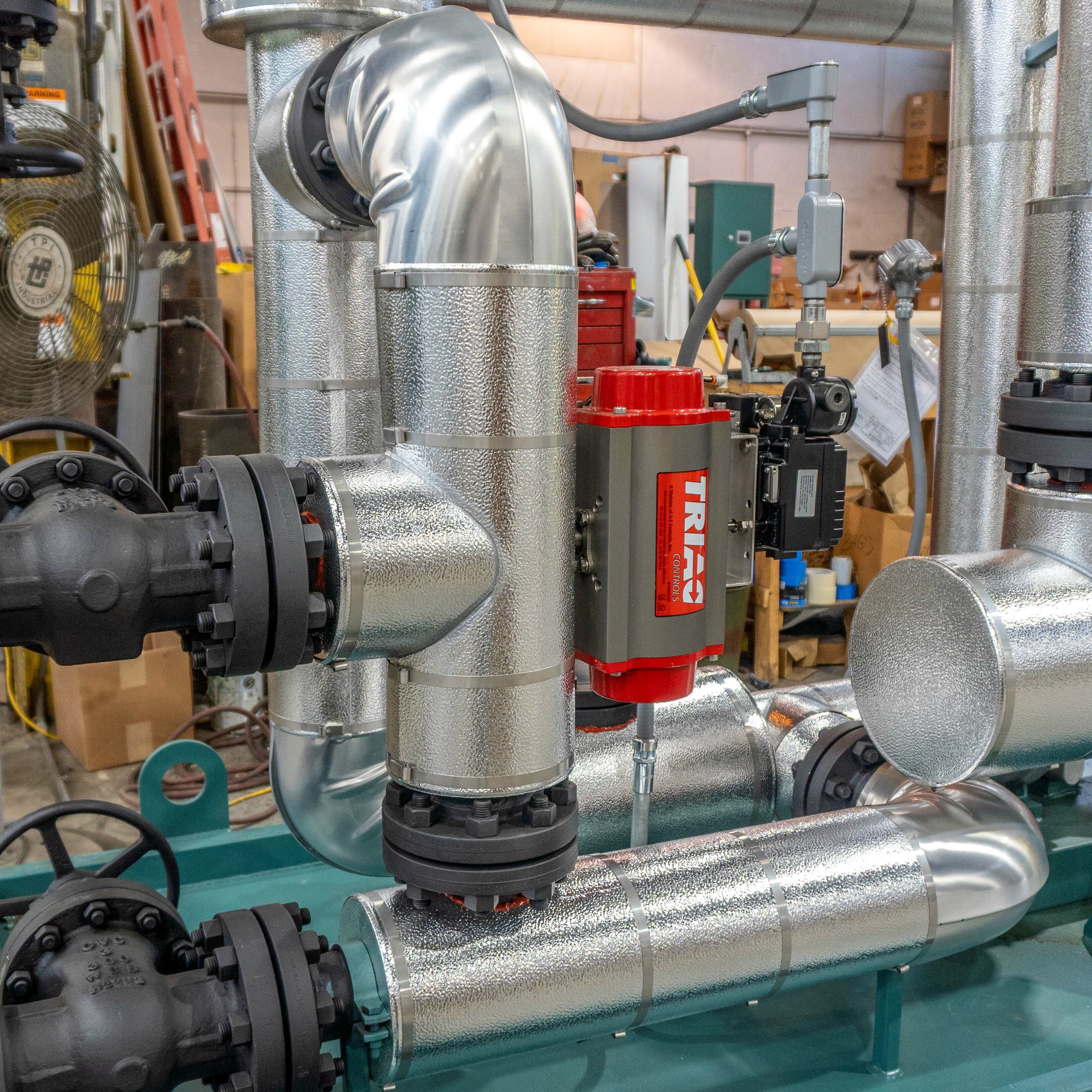

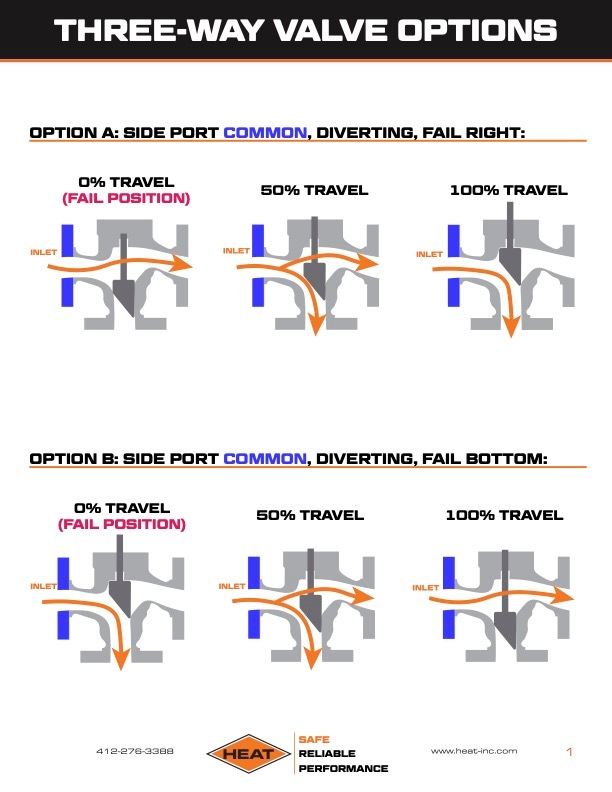

For example configuration diagrams, download the PDF to the left.
Where 3-Way Valves Add Real Value
Heater Protection and Turndown Control
Instead of cycling heaters on and off to maintain setpoint, a diverting 3-way valve can:
- Maintain constant circulation through the heater
- Redirect excess flow through a bypass
- Reduce thermal cycling and element stress
This aligns with reliability best practices—avoiding rapid temperature swings that contribute to heater failures.
Cooling Loop Integration
A 3-way diverting valve is often used to:
- Send hot thermal fluid through a cooling exchanger when needed
- Bypass the exchanger when cooling is not required
In HEAT systems, a 3-way control valve regulating flow through a cooling exchanger is a standard method of temperature control in closed-loop systems.
Parallel Load Balancing
In multi-user systems:
- Mixing valves maintain a consistent outlet temperature
- Prevent one load from stealing heat from another
- Stabilize downstream process performance
Control Dynamics: Why 3-Way Valves Improve Stability
From a controls standpoint, 3-way valves decouple flow rate from heat input:
- Pumps maintain constant flow
- Heaters provide continuous energy input
- Valves determine how much of that energy actually reaches the process
This approach avoids overshoot from heater cycling, lag caused by thermal inertia, and instability from low-flow conditions. In practical terms: tighter PID control, less oscillation around setpoint, and more predictable response during load changes.
Operational Reality: What Operators Should Watch
Even well-designed 3-way control strategies require awareness:
- Unexpected valve movement can occur during control changes or signal loss—always isolate air and power during maintenance.
- Fouling or deposits in exchangers can shift valve behavior as the system compensates for lost performance.
- Changes in fluid properties (viscosity, degradation) affect flow distribution and control response.
Design Considerations That Are Often Missed
Fail Position Is Not Optional
Every 3-way valve must be specified with a defined fail state. Should flow default to heating, cooling, or bypass on loss of air or power? The correct answer depends on process safety, not convenience.
Control Valve Sizing and Pressure Drop
Improperly sized valves create excessive pressure drop (starving the system) or poor controllability (too sensitive or too sluggish). Globe-style control valves are often preferred for their predictable throttling characteristics, even at the cost of higher pressure loss.
Temperature Gradients and Thermal Shock
Mixing hot and cooled streams can create localized thermal gradients and stress downstream piping. Design must provide adequate mixing length or downstream turbulence, and materials compatible with thermal cycling.
Actuator and Response Speed
Control performance is only as good as actuator responsiveness, positioner accuracy, and integration with the control system (PLC/DCS). A poorly tuned control valve can negate the advantages of a well-designed system.
Practical Checklist: Valve Choices That Improve Control
- Use globe or control valves where tight balancing or modulation is required.
- Use gate valves for isolation only—keep them fully open or fully closed.
- For Hot Oil applications, specify graphite packing
- Plan valve stem orientation for leak visibility.
- Treat actuated valves as a safety consideration: control valves may stroke unexpectedly, so lock out air, power, and signal before maintenance.
- Define fail position for every actuated valve based on process safety.
- Verify CV sizing against actual flow and pressure drop conditions.
Bottom Line
3-way valves are not just piping components—they are control strategy devices. Done right, they allow a thermal fluid system to maintain tight temperature control without aggressive heater cycling, protect equipment from thermal stress, and respond smoothly to changing process conditions. Done poorly, they introduce instability, inefficiency, and unnecessary wear.
If your system needs tight control, your valve strategy is not a detail—it is the design.
Frequently Asked Questions
Commonly globe, gate, butterfly, and control valves—selected by function (balance, isolate, modulate).
Partial opening causes vibration, erosion, and seat damage. Gate valves are designed for full-open or full-closed service only.
Graphite packing is required to maintain sealing integrity at elevated temperatures typical of thermal fluid systems.
Mixing valves blend two inlet streams into one outlet. Diverting valves route one inlet stream to one of two outlets—typically a heater/exchanger or a bypass. Selection depends on the control objective and required fail position.
They decouple flow rate from heat input, allowing pumps and heaters to run continuously while the valve modulates how much energy reaches the process. This reduces overshoot, minimizes thermal cycling, and produces tighter PID control.
Fail position defines where a valve moves on loss of air or power—toward heating, cooling, or bypass. It is a process safety decision, not a convenience default, and must be specified for every actuated valve.
