Why Food & Beverage Plants Prefer Water/Glycol Systems Over Hot Oil
Food and beverage plants often prefer water/glycol systems because most food processes run at or below ~250°F (the typical ceiling for food-safe glycol service) and demand food-safe fluids, combined heating and chilling, freeze protection, and easy sanitation. All these things are strengths of a closed-loop glycol system. Hot oil systems are also used, but typically are reserved for high-temperature duties like frying and baking, where water/glycol cannot reach the required temperature.
Key Facts
- Propylene glycol is FDA GRAS and available NSF HT1 / 21 CFR 178.3570 certified for incidental food contact; most thermal oils raise greater contamination concerns than food-grade glycol.
- The same glycol fluid handles both heating and low-temperature chilling; hot oil can reject heat but is impractical as a cold-side coolant.
- Water/glycol runs at low pressure and is non-flammable, easing the safety-control and code burden that thermal-fluid systems often carry.
- In typical food-safe applications, propylene glycol’s recommended range extends to roughly 250°F based on fluid life and thermal stability; HEAT’s pre-engineered HWS 225 Series is rated to 225°F.
- Hot oil still wins above ~250°F—frying, baking, and high-temp cooking.
Water/Glycol vs. Hot Oil at a Glance
| Factor | Water/Glycol | Hot Oil (Thermal Fluid) |
| Typical Temperature Range: | Up to ~225–250°F in typical food-safe applications; HEAT HWS 225 Series capped at 225°F | Up to ~750°F for frying, baking, and high-temp cooking |
| Food-Contact Safety: | Propylene glycol is FDA GRAS and available NSF HT1 / 21 CFR 178.3570 certified—safe on incidental contact | Most thermal fluids raise greater contamination concerns than food-grade glycol; a leak typically drives cleanup and possible product loss, subject to plant QA disposition |
| Cooling Duty: | Same fluid serves the cold side—stays fluid below 0°F for chilling, freezing, and fermentation control | Can transfer away heat through a heat exchanger, but oil is impractical as a low-temperature chilling medium |
| Freeze/Outdoor Protection: | Glycol protects piping in cold storage, outdoor skids, and seasonal shutdowns | Does not freeze under typical conditions, but too viscous for refrigeration-temperature service |
| Fire/Flammability: | Non-flammable; lower NFPA burden | Combustible above flash point; often requires added safety controls and may fall under NFPA 87 and other applicable codes |
| Cleanability/Sanitation: | Water-based, low-residue; pairs cleanly with CIP and washdown | Oily residue complicates sanitary cleanup |
| Operating Pressure: | Low pressure vs. steam at the same temperature | Low pressure at high temperature—its core advantage |
| Maintenance: | Monitor inhibitor and glycol concentration | Monitor for oxidation, fouling, and coking |
Why Water/Glycol Fits Food & Beverage
1. Food-Safe by Design
The single biggest reason is contamination risk. Propylene glycol is classified “Generally Recognized as Safe (GRAS)” by the FDA and is available in NSF HT1–registered formulations meeting 21 CFR 178.3570 for incidental food contact.
If a coil or gasket leaks, a food-grade glycol solution presents a lower contamination risk and may reduce product-loss consequences, though final batch disposition remains subject to the plant’s QA and food-safety procedures. A thermal oil leak generally carries greater contamination concern—and a higher likelihood of cleanup, scrap, and recall exposure.
One important distinction: not all glycol solutions are equal when it comes to food safety. Ethylene glycol is toxic and never belongs in a food plant; propylene glycol is the generally preferred fluid where incidental contact is possible.
2. One Fluid That Heats and Chills
Food processing rarely stops at heating. Pasteurize, then chill. Cook, then cool. Ferment within a tight temperature band. What makes water/glycol uniquely suited to lines that both heat and cool is the cold side: the same fluid stays pumpable at refrigeration temperatures, well below 0°F, so one glycol loop can serve both process heating up to roughly 250°F and low-temperature chilling.
Thermal oil turns viscous at those low temperatures, so it is a poor fit for refrigeration-temperature service. For lines that both heat and chill, a single glycol fluid covers the full span.
3. Freeze Protection for Real Plant Conditions
Cold storage areas, rooftop skids, outdoor piping, and seasonal shutdowns all threaten a plain-water system with freeze damage. Depending on concentration, a glycol blend stays fluid well below 0°F and protects piping, pumps, and exchangers during downtime. This is a practical, everyday advantage in food plants that plain water cannot match.
Thermal oils generally do not freeze under typical plant conditions, but they turn highly viscous in the cold and are poorly suited to refrigeration-temperature service, so they are not a good fit for these applications.
4. Cleanability and Sanitation
Sanitary operation favors water-based media. Closed-loop water/glycol systems are well suited to sanitary facilities and washdown environments, pairing cleanly with clean-in-place (CIP) routines and leaving no oily residue on surrounding equipment. Jacketed kettles, mixers, and tunnel pasteurizers heated through a glycol loop keep the heat source separated from the product while staying easy to clean—exactly what audits and sanitation programs expect.
5. Lower Fire Risk
Both water/glycol and hot oil can deliver process temperatures at far lower pressure than steam, but hot oil is combustible above its flash point and often requires added safety controls—interlocks, over-temperature protection, and ignition-source management. Because of this, hot oil systems may be subject to NFPA 87 and other applicable codes and standards. For the sub-250°F duties that make up most of a food plant, water/glycol sharply reduces that fire-safety burden.
When Hot Oil Still Wins
Water/glycol is not the answer for every duty. Hot oil remains the right choice when the process needs high temperature at low pressure—above roughly 250°F, the practical ceiling for typical food-safe glycol service. In food and beverage, that means:
- Continuous frying and deep-fat cooking lines

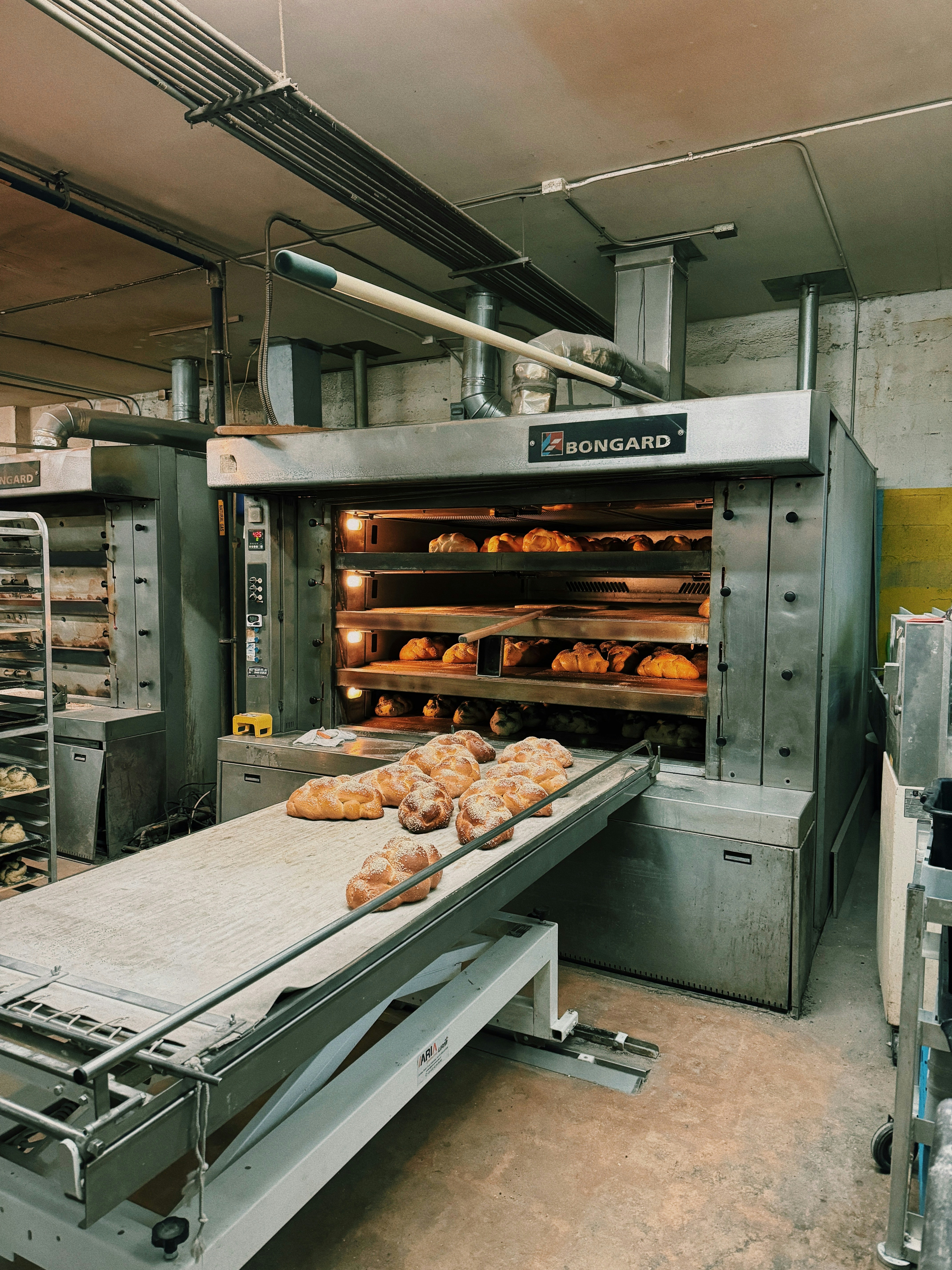

- High-temperature baking ovens and dryers
- Platen, roll, and calendar heating for films and packaging
- Edible-oil and shortening processes that run hot
The practical rule: choose water/glycol for combined heating/cooling, sanitation, freeze protection, and temperatures up to ~250°F. Choose hot oil when you need uniform high-temperature heat at low pressure that water/glycol cannot deliver. Many plants run both—glycol loops for the majority of duties, a hot oil system for the hot end.
How to Choose for Your Line
Work through these before specifying:
- Peak process temperature. At or below ~250°F favors water/glycol; above it points to hot oil.
- Heating only, or heating and low-temperature chilling? If the same fluid must serve the cold side too, glycol is the practical choice.
- Food-contact risk. Where a leak could reach product, specify NSF HT1 propylene glycol.
- Freeze exposure. Cold storage, outdoor skids, or shutdowns call for glycol.
- Sanitation regime. CIP and washdown environments favor water-based media.
- Glycol type and concentration. Propylene glycol for food safety; set concentration to balance freeze protection against heat-transfer efficiency and pump load.
Specify the Right System with HEAT
HEAT Exchange and Transfer designs and manufactures both water/glycol systems and hot oil systems for food and beverage plants—factory-tested, Safe-by-Design, and delivered with the documentation your QA team expects. Tell us your process fluid, peak temperature, and whether you need heating, cooling, or both, and our engineers will spec the right system. Request a quote or call us today.
