PRE-ENGINEERED - CLBS SERIES BOLT-ON COOLING MODULES

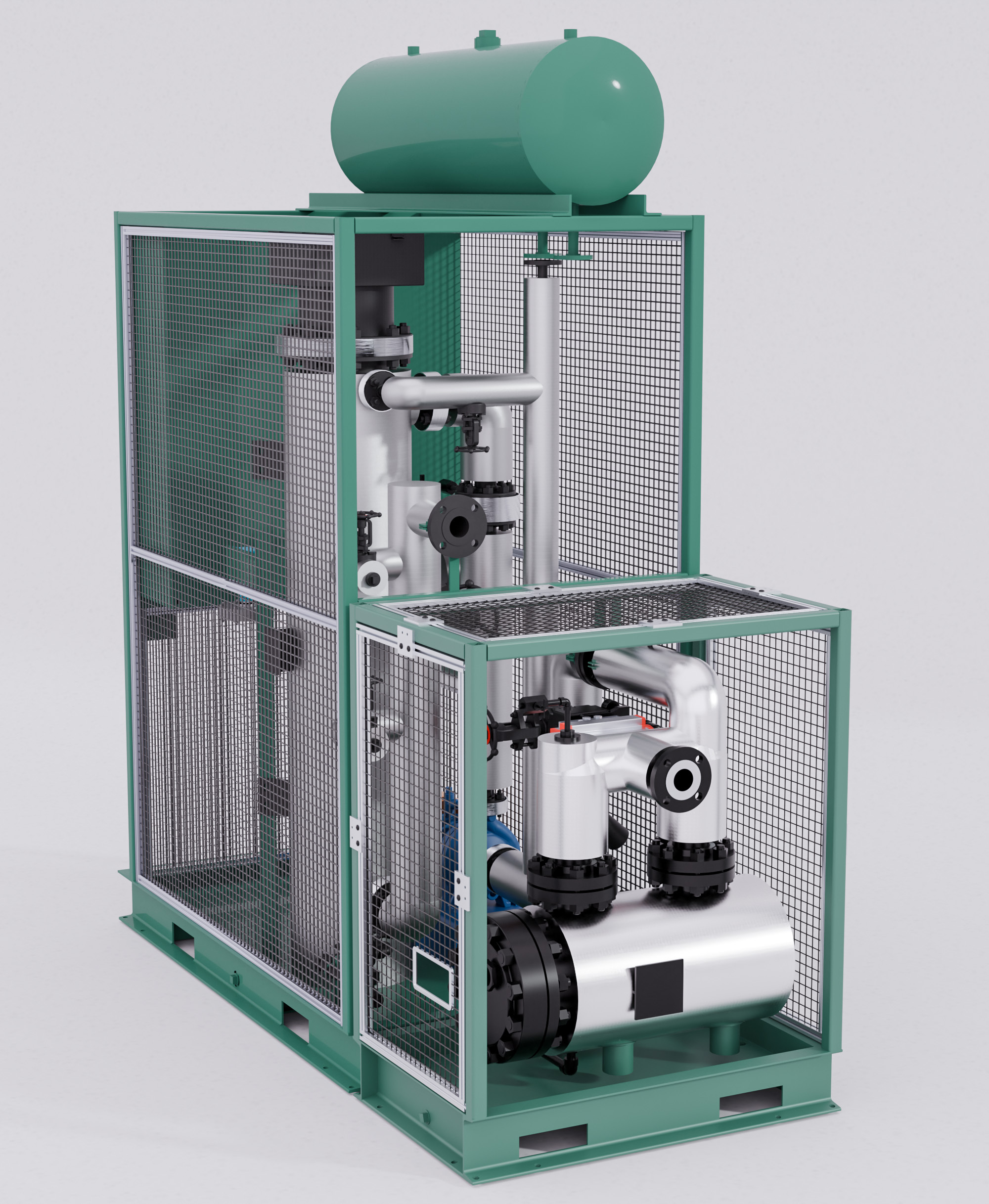

The CLBS Pre-Engineered Bolt-On Cooling Module gives you the ability to quickly add cooling to your process. Compatible with HEAT's line of NFP and HOS pre-engineered hot oil systems, these modules are designed to easily attach to existing systems.
CLBS Series Cooling Modules contain an ASME Code shell and tube exchanger and a fully modulating (3)-way diverting valve designed for proportional cooling of process fluid, all in a compact and modular design.
- Pre-Engineered
- For use with NFP Series and HOS Series hot oil systems
- Heat Transfer Areas of 14ft2, 36.4ft2 and 47ft2 available (NOTE: For system compatibility, please reference the chart below)
- Bolt-On Design Configuration
- ASME Code Shell & Tube Exchanger
- Fully modulating (3)-way diverting valve designed for proportional cooling control
- Compact and modular design
- ASME B31.3 piping system
- Non-wicking cellular glass Insulation
- Flange spray shield protection
- Industrial machine guarding
SEE IT IN ACTION:
Elevate the performance of your process by adding a cooling module.
Join Service Technician Paul Hickman in a demonstration of how the CLBS seamlessly integrates with our NFP 550 Series equipment.
| Model Number | description | design temperature | cooler type | cooling surface area | Inlet / Outlet | Inlet / Outlet Connection | Learn More |
|---|---|---|---|---|---|---|---|
| CLBS-NFP-01-ST | Pre-Engineered cooling module with an ASME shell and tube exchanger, fully modulating 3-way diverting valve designed for proportional cooling. Other features include an all welded ASME B31.3 piping system, non-wicking cellular glass insulation, flange spray shield protection, and an industrial machine guarding. | 550 F (287C) | Shell & Tube | 14 sq.ft | 1-1/2" | 150# RF ANSI Flange | Details |
| CLBS-NFP-02-ST | Pre-Engineered cooling module with an ASME shell and tube exchanger, fully modulating 3-way diverting valve designed for proportional cooling. Other features include an all welded ASME B31.3 piping system, non-wicking cellular glass insulation, flange spray shield protection, and an industrial machine guarding. | 550 F (287C) | Shell & Tube | 36.4 sq.ft | 2" | 150# RF ANSI Flange | Details |
| CLBS-NFP-03-ST | Pre-Engineered cooling module with an ASME shell and tube exchanger, fully modulating 3-way diverting valve designed for proportional cooling. Other features include an all welded ASME B31.3 piping system, non-wicking cellular glass insulation, flange spray shield protection, and an industrial machine guarding. | 550 F (287C) | Shell & Tube | 47 sq.ft | 3" | 150# RF ANSI Flange | Details |
| CLBS-HOS-01-ST | Pre-Engineered cooling module with an ASME shell and tube exchanger, fully modulating 3-way diverting valve designed for proportional cooling. Other features include an all welded ASME B31 piping materials and non-wicking cellular glass insulation | 550 F (287C) | Shell & Tube | 14 sq.ft | 1-1/2" | 150# RF ANSI Flange | Details |
| CLBS-HOS-02-ST | Pre-Engineered cooling module with an ASME shell and tube exchanger, fully modulating 3-way diverting valve designed for proportional cooling. Other features include an all welded ASME B31 piping materials and non-wicking cellular glass insulation | 550 F (287C) | Shell & Tube | 36.4 sq.ft | 2" | 150# RF ANSI Flange | Details |
| CLBS-HOS-03-ST | Pre-Engineered cooling module with an ASME shell and tube exchanger, fully modulating 3-way diverting valve designed for proportional cooling. Other features include an all welded ASME B31 piping materials and non-wicking cellular glass insulation | 550 F (287C) | Shell & Tube | 47 sq.ft | 3" | 150# RF ANSI Flange | Details |
