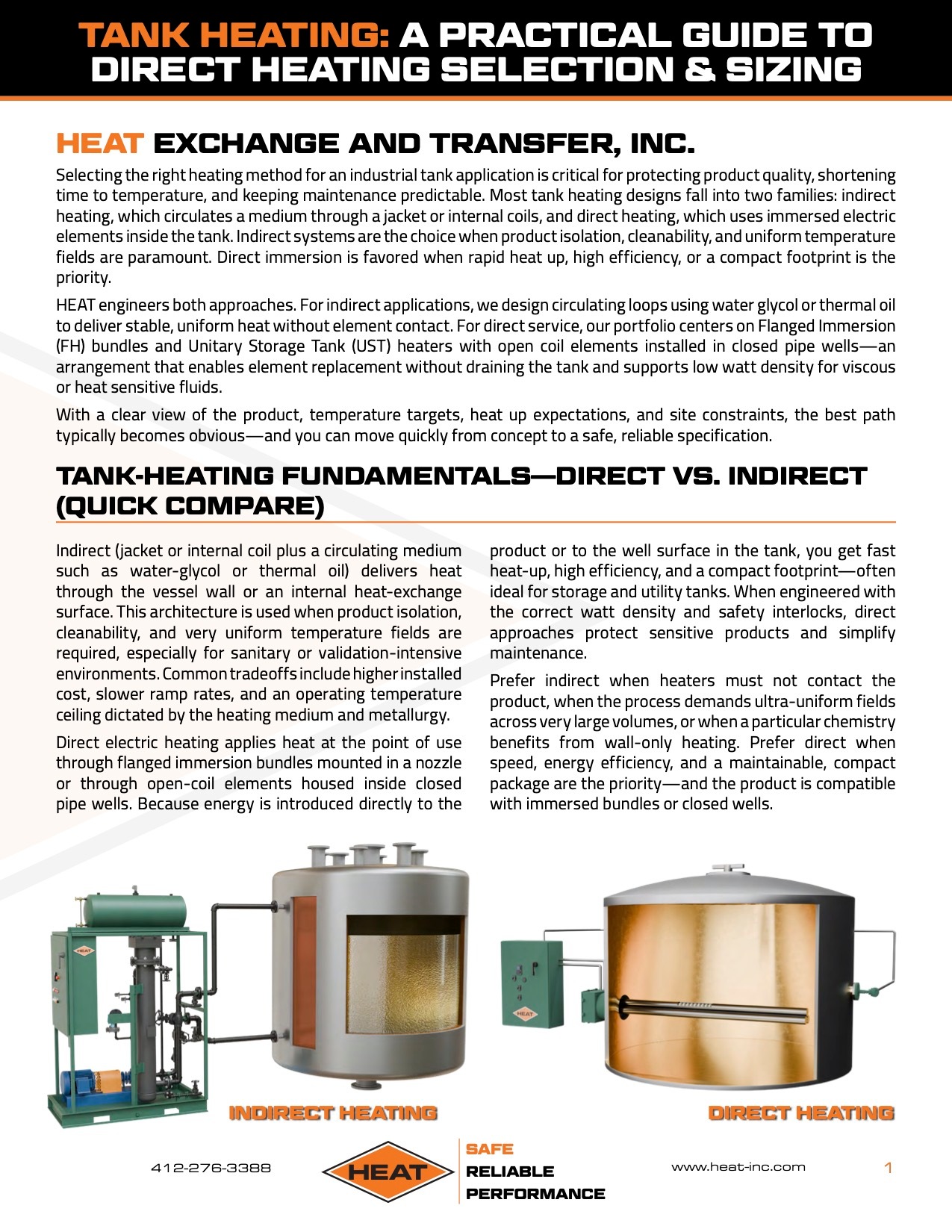

Tank Heating: A Practical Guide to Direct Heating Selection & Sizing

A HEAT Technical White Paper

Selecting the right heating method for an industrial tank application is critical for protecting product quality, shortening time to temperature, and keeping maintenance predictable. Most tank heating designs fall into two families: indirect heating, which circulates a medium through a jacket or internal coils, and direct heating, which uses immersed electric elements inside the tank. Indirect systems are the choice when product isolation, cleanability, and uniform temperature fields are paramount. Direct immersion is favored when rapid heat up, high efficiency, or a compact footprint is the priority.

HEAT engineers both approaches. For indirect applications, we design circulating loops using water glycol or thermal oil to deliver stable, uniform heat without element contact. For direct service, our portfolio centers on Flanged Immersion (FH) bundles and Unitary Storage Tank (UST) heaters with open coil elements installed in closed pipe wells—an arrangement that enables element replacement without draining the tank and supports low watt density for viscous or heat sensitive fluids.

With a clear view of the product, temperature targets, heat up expectations, and site constraints, the best path typically becomes obvious—and you can move quickly from concept to a safe, reliable specification.

Download This White Paper

TANK‑HEATING FUNDAMENTALS—DIRECT VS. INDIRECT (QUICK COMPARE)

Indirect Heating:

Indirect (jacket or internal coil plus a circulating medium such as water‑glycol or thermal oil) delivers heat through the vessel wall or an internal heat‑exchange surface. This architecture is used when product isolation, cleanability, and very uniform temperature fields are required, especially for sanitary or validation‑intensive environments. Common tradeoffs include higher installed cost, slower ramp rates, and an operating temperature ceiling dictated by the heating medium and metallurgy.

Hot Oil Thermal Fluid Systems

Water-Glycol Thermal Fluid Systems

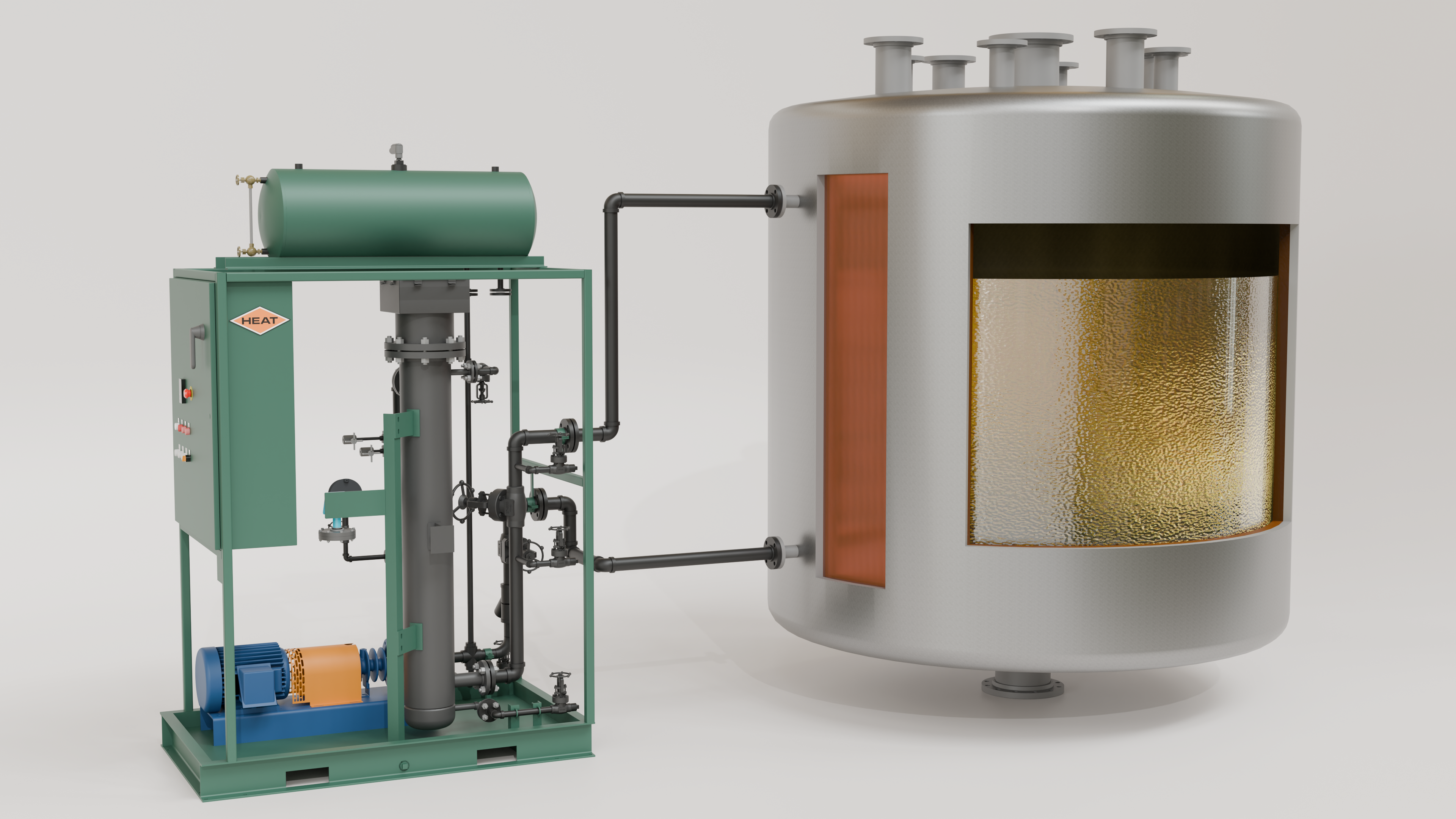

Indirect Heating with a Thermal Fluid System and Jacketed Vessel

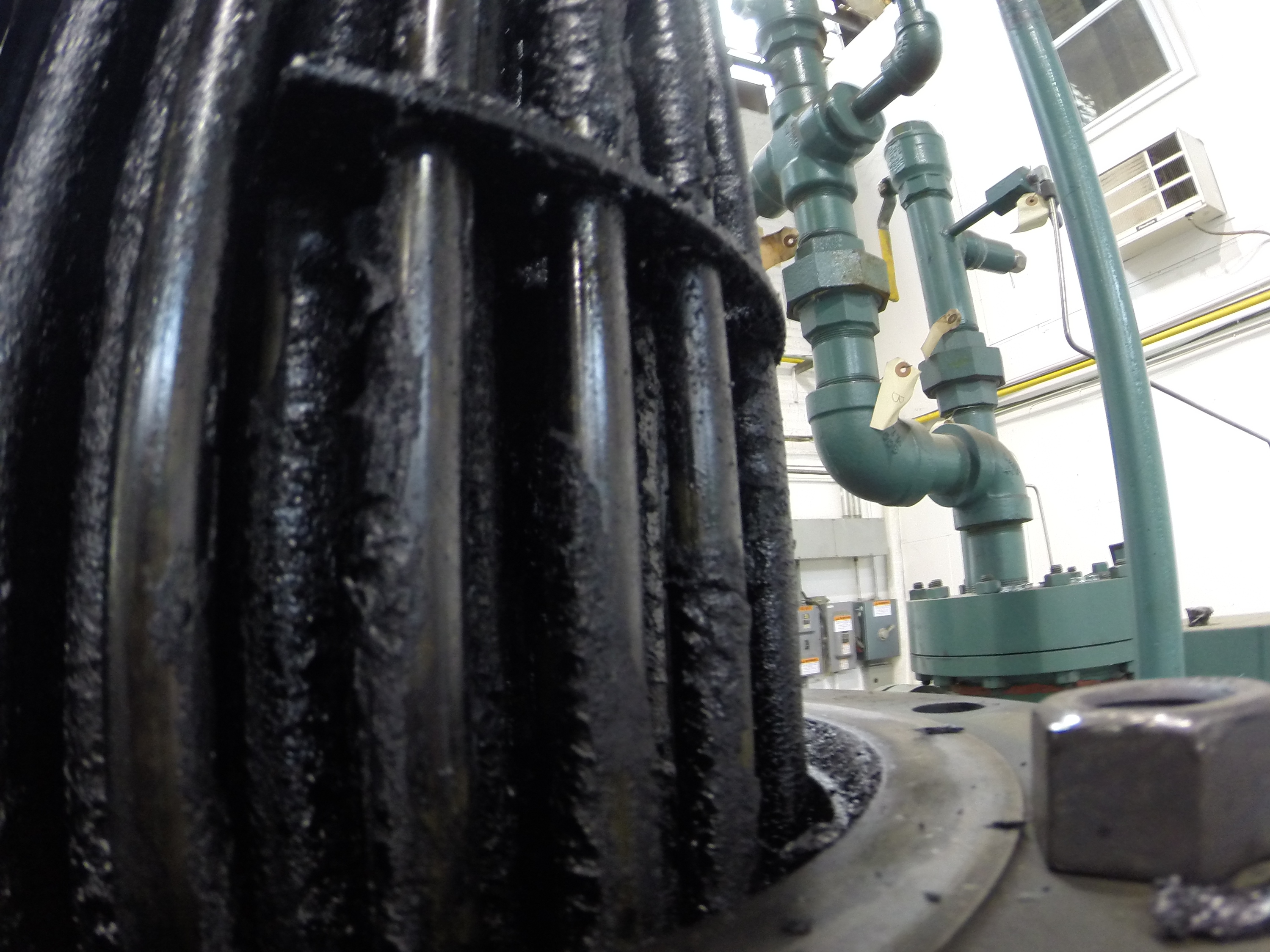

Direct Heating Example of UST heater wells with internal Open Coil Heaters

Direct Heating:

Direct electric heating applies heat at the point of use through flanged immersion bundles mounted in a nozzle or through open‑coil elements housed inside closed pipe wells. Because energy is introduced directly to the product or to the well surface in the tank, you get fast heat‑up, high efficiency, and a compact footprint—often ideal for storage and utility tanks. When engineered with the correct watt density and safety interlocks, direct approaches protect sensitive products and simplify maintenance.

Direct Heating Solutions

Prefer indirect when heaters must not contact the product, when the process demands ultra‑uniform fields across very large volumes, or when a particular chemistry benefits from wall‑only heating. Prefer direct when speed, energy efficiency, and a maintainable, compact package are the priority—and the product is compatible with immersed bundles or closed wells.

DIRECT HEATING TECHNOLOGIES & WHERE THEY FIT

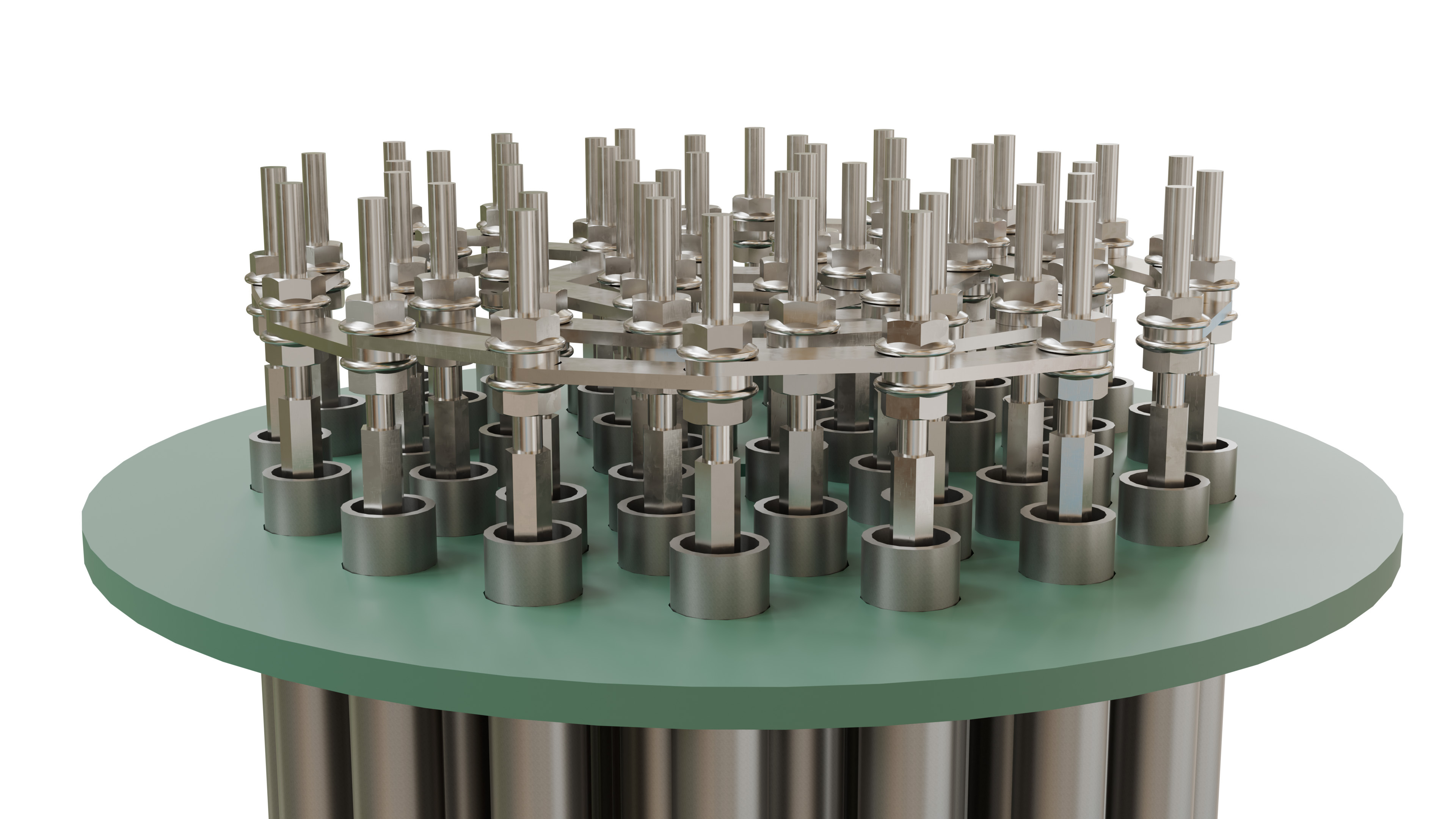

FLANGED IMMERSION HEATERS (FH)

What they are:

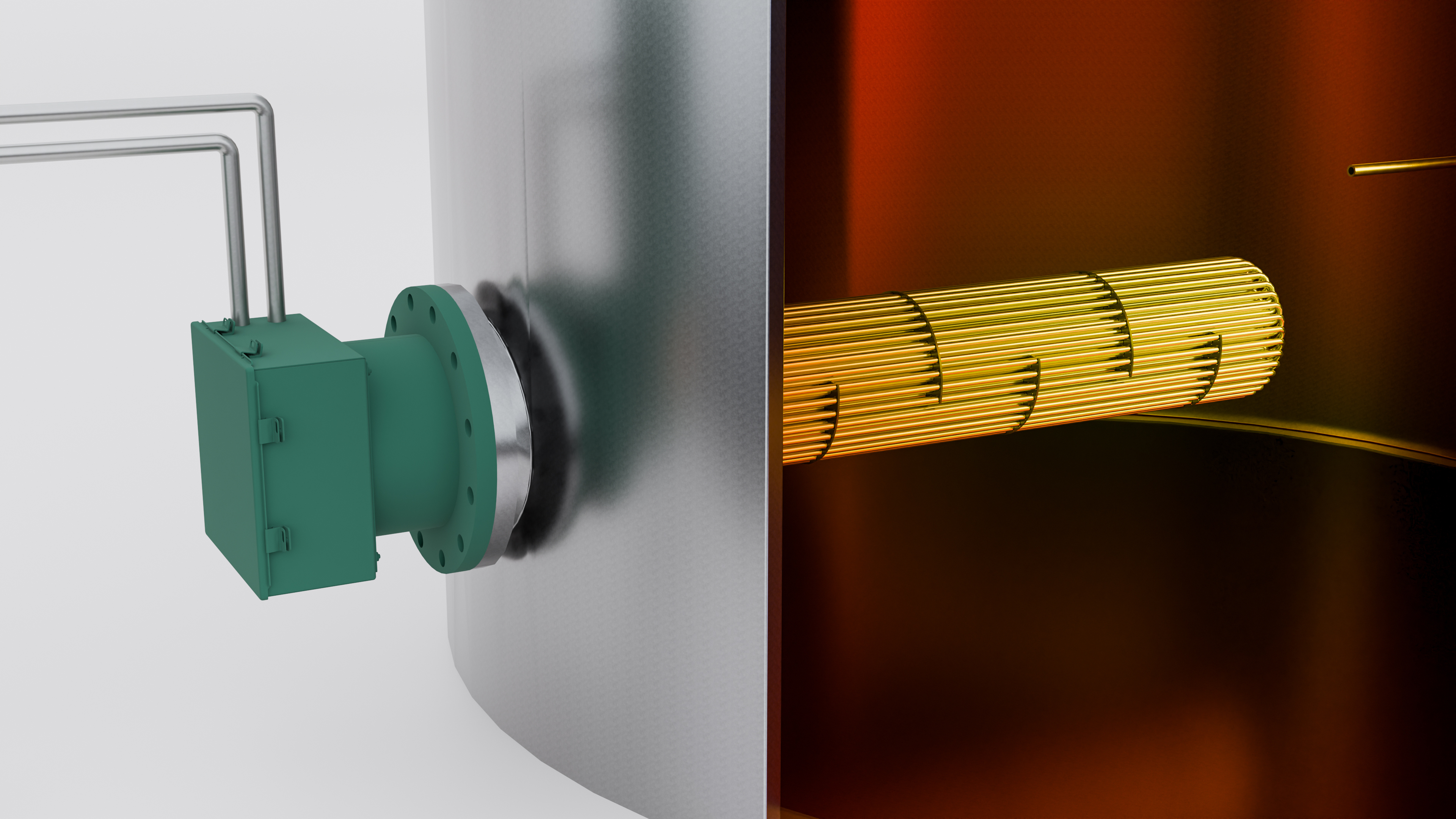

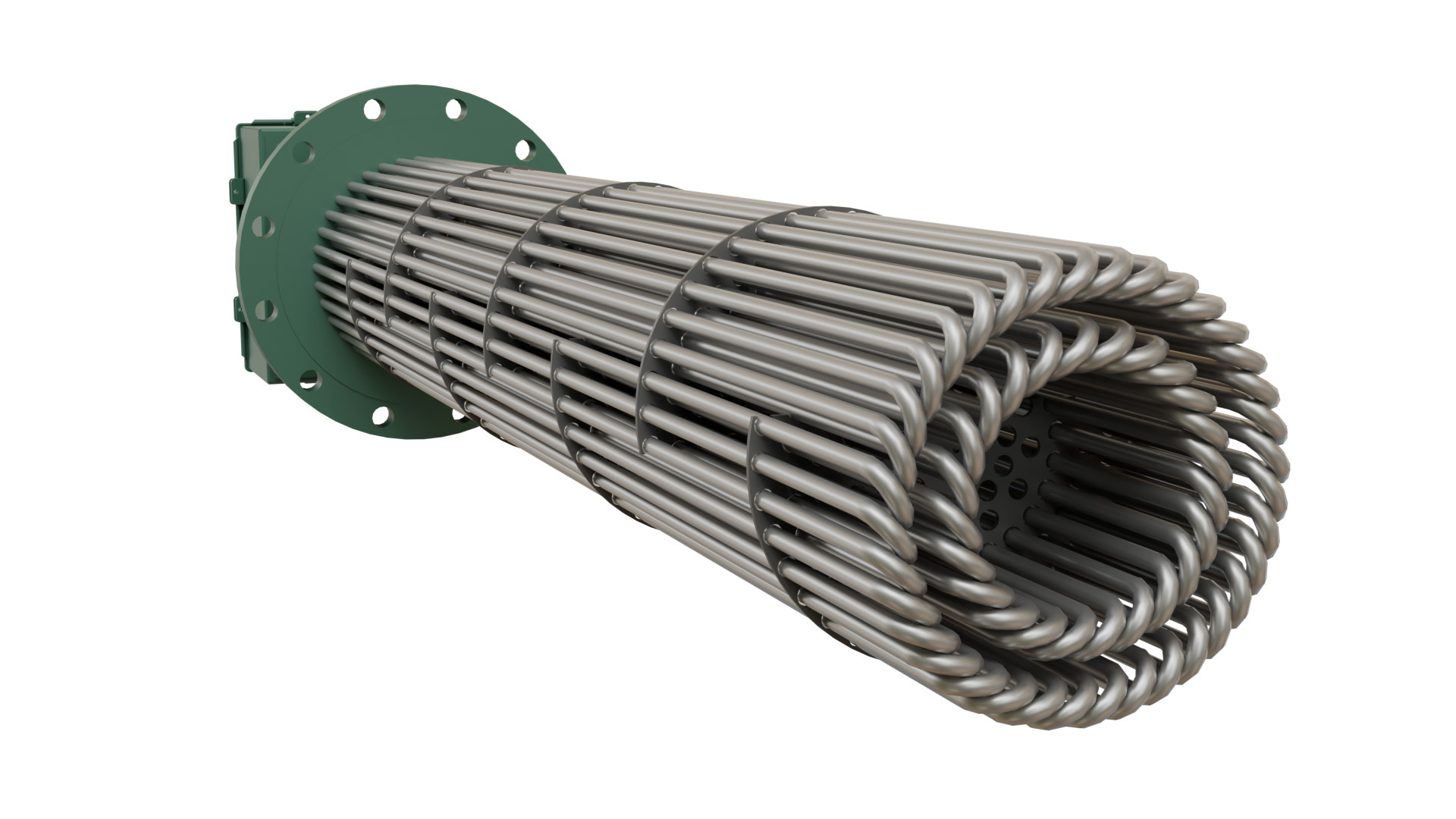

U‑bend tubular elements are bundled on a standard ANSI flange with baffles that encourage cross‑flow over the elements. A dedicated thermowell enables independent high‑limit protection, and terminations reside in a NEMA‑rated terminal housing. This form factor concentrates high kW through a small nozzle and installs cleanly in new or retrofit tanks.

Primary benefits:

High kW per opening and fast heat‑up reduce time to temperature for storage or day‑tanks where throughput matters. Installation is straightforward via standard flanges and housings, simplifying fit‑up and wiring. A built‑in thermowell supports an independent high‑limit sensor, giving a separate safety layer from the process control sensor.

Key considerations and mitigations:

Watt density must align with viscosity and chemistry to prevent coking or discoloration. Provide adequate circulation across the bundle—via agitation, baffle orientation, or process mixing—to manage film temperature. Interlock energization to verified liquid level; combine a control sensor with an independent high‑limit in the thermowell. Confirm flange size/class, nozzle projection, and withdrawal clearance for safe installation and service; orient terminal housings for conduit routing and accessibility. Select sheath and gasket materials for the medium and temperature range, and match enclosures and wiring to the area classification.

Best‑fit scenarios:

Utility tanks (CIP, caustic, detergent concentrates) that require short turnaround between cycles; day tanks for edible oils or lube/hydraulic oils where quick response and compact installs are advantageous.

FH Series




CLOSED‑WELL INSERT HEATERS (UST / OCH)

What they are:

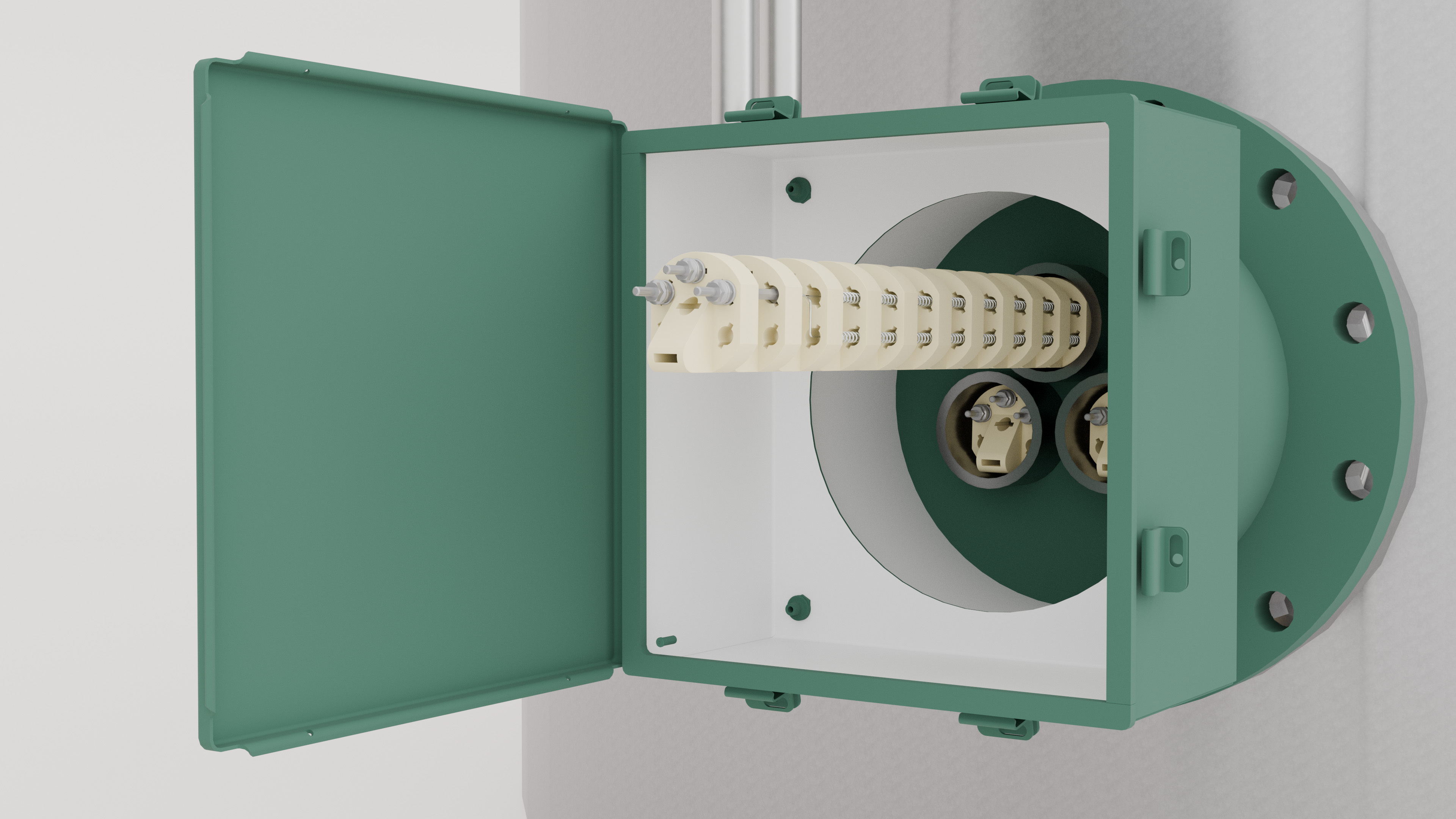

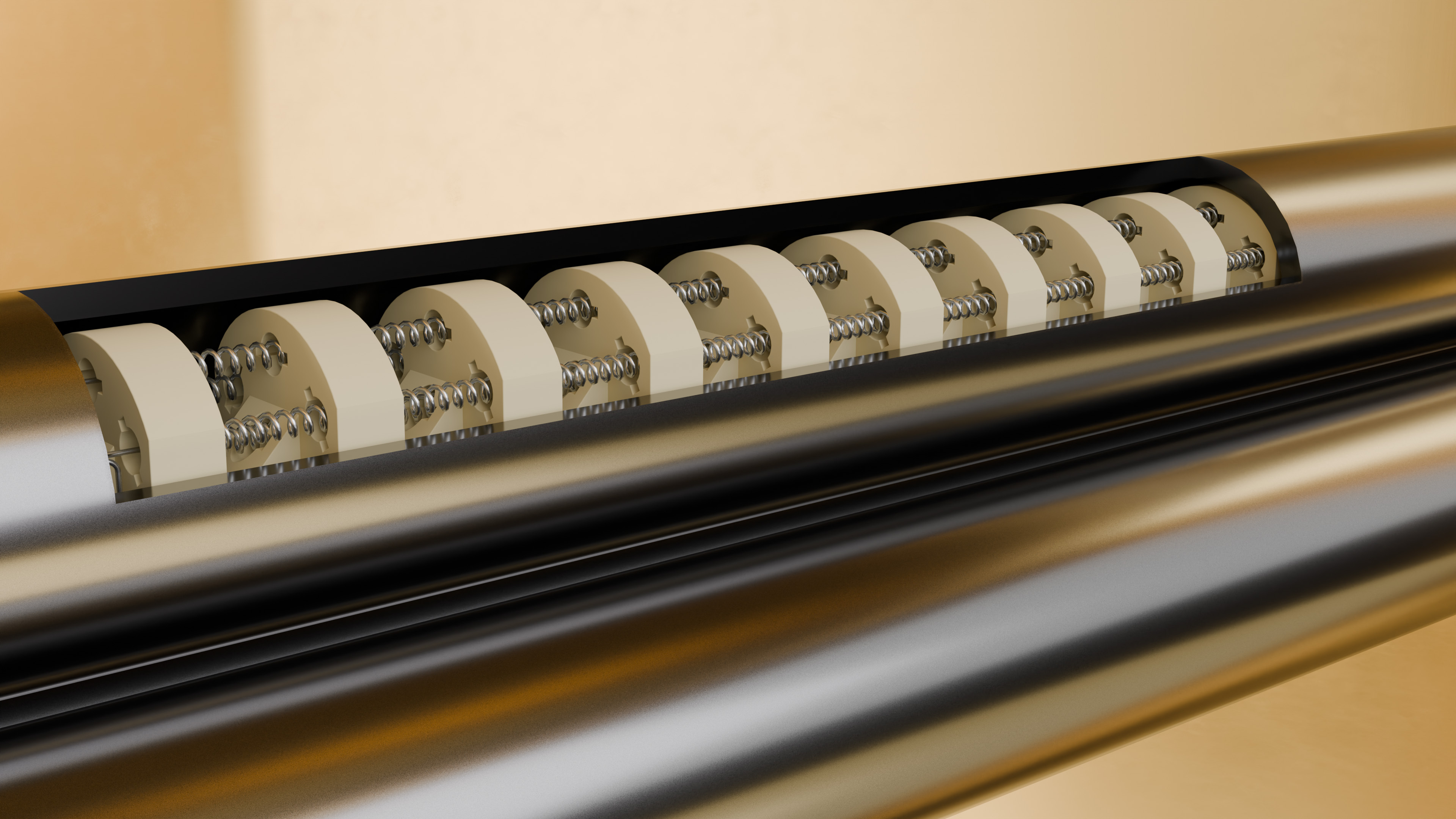

Open‑coil elements are installed inside closed pipe wells so elements can be replaced without draining the tank. The geometry delivers inherently low watt density well‑suited to viscous or heat‑sensitive products. Staged element control supports smooth ramping and tight film‑temperature management.

Primary benefits:

Maintainability is excellent—you can service elements with the tank full, provided overhead or side‑pull clearance is planned. Low watt density reduces coking, scorching, and polymer degradation risks—crucial for asphalt/bitumen, high‑viscosity oils, waxes, resins, and certain excipients. Control flexibility allows gentle ramps, limits peak film temperatures, and matches available power.

Key considerations and mitigations:

Position wells to promote natural convection or driven mixing; avoid dead zones and interference with internals. Size wells to balance response with cleanability. Build in inspection intervals; for sticky or particulate‑laden products, anticipate clean‑in‑place steps for well surfaces. Match NEMA rating and hazardous‑location provisions to the site.

Best‑fit scenarios:

Asphalt/bitumen storage with long holds and frequent maintenance; chocolate, confectionery, and wax tanks where film temperature must remain low; fuel‑oil day tanks in cold climates where serviceability and area‑classification compliance matter.

OCH Series

UST Series

PROCESS (INLINE/CIRCULATION) HEATERS

What they are:

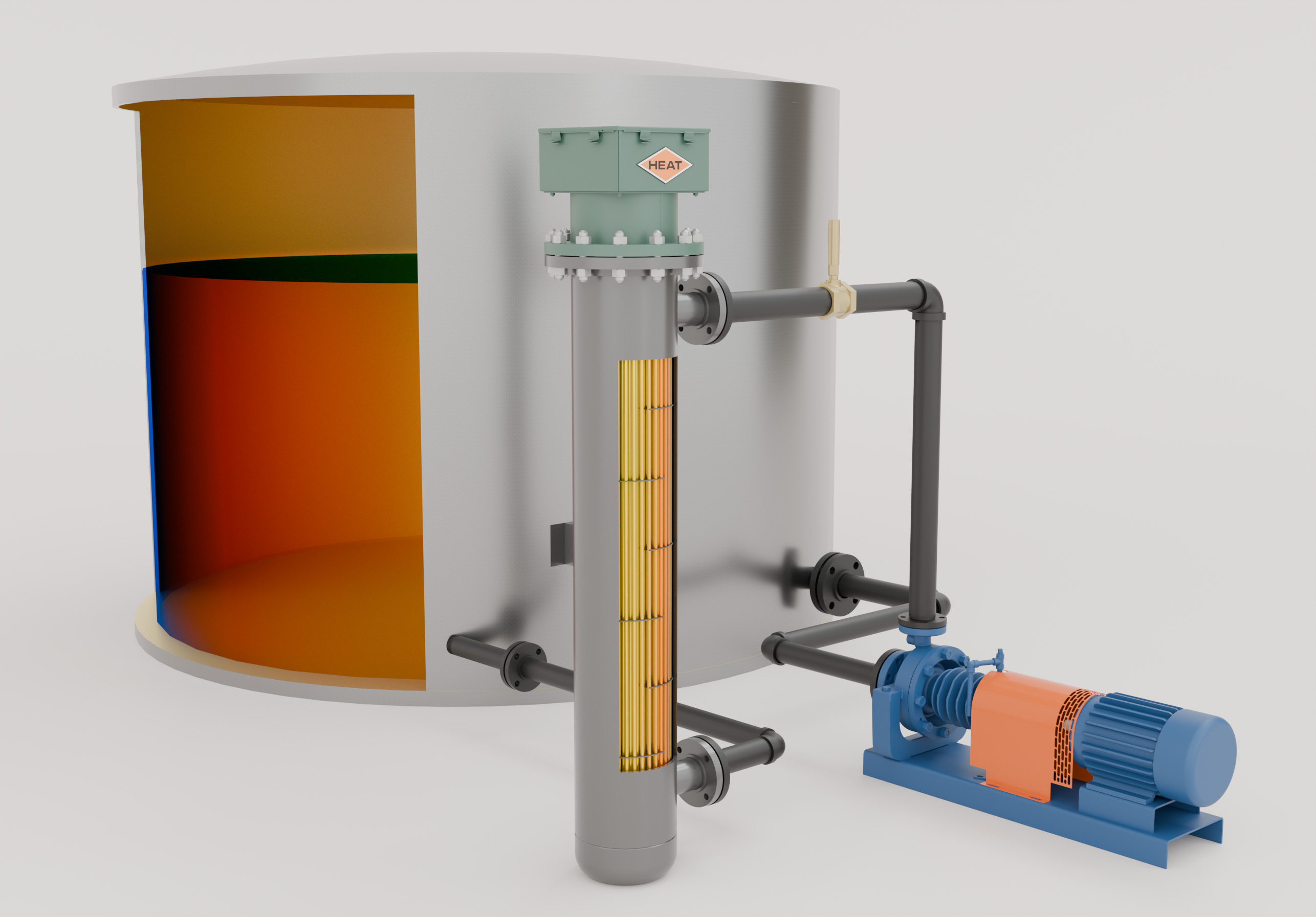

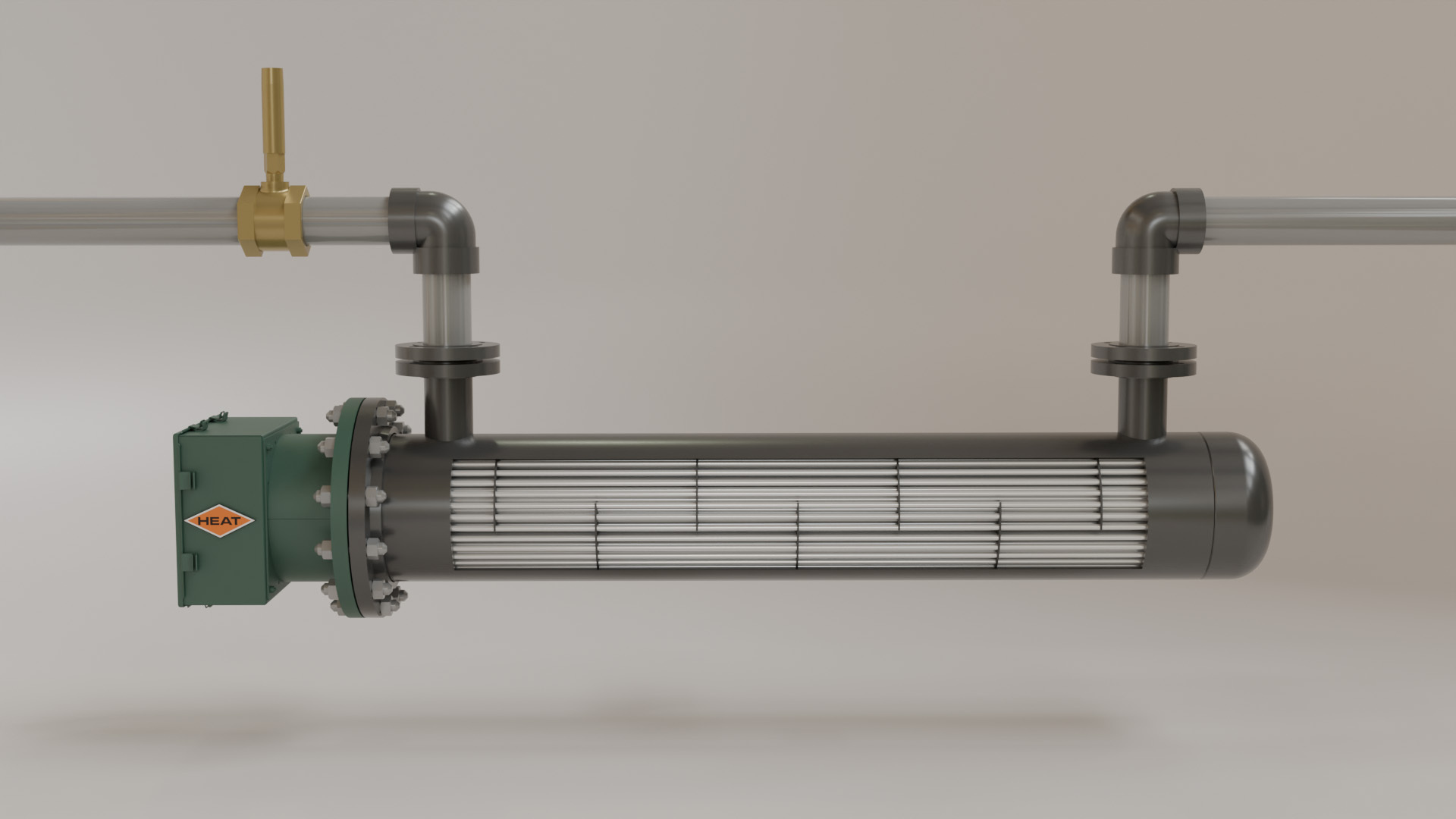

Direct electric heaters installed in a recirculation loop to and from the tank. A slipstream or full‑flow is drawn from the vessel, heated, and returned to the tank. This approach brings fast ramps and tight temperature control while concentrating maintenance on a skid. It complements immersion or closed‑well heaters when quicker warm‑up, precise turndown, or hygienic isolation of terminals and wiring away from the tank headspace is desired.

Where they fit:

Use a process loop for rapid warm‑up, then hold with lower kW or with wells/immersion bundles. For finer control, SCR or staged control on the skid can deliver stable temperature; integrate with an agitator for uniformity. In hybrid strategies, a loop heater handles dynamic heat‑up while UST/OCH wells sized conservatively provide gentle, low‑watt‑density holding.

Key considerations and mitigations:

Select a loop flow that maintains safe film temperatures in the inline heater while delivering the required duty; avoid excessive ∆T that could create stratification on return. Require proof‑of‑flow interlocks, tank‑level permissives, and an independent high‑limit sensor; integrate skid logic with the tank’s safety chain. Match metallurgy to the product, select appropriate enclosure ratings, and follow the site’s hazardous‑area practices for conduit and seal‑offs.

Learn More

SIZING & SCOPE DEVELOPMENT—A DETAILED, STEPWISE METHOD

The most reliable designs start with disciplined data collection and proceed through a transparent sizing workflow. The dataset and checklist below align with HEAT’s engineering intake, enabling fast convergence to a safe, maintainable specification.

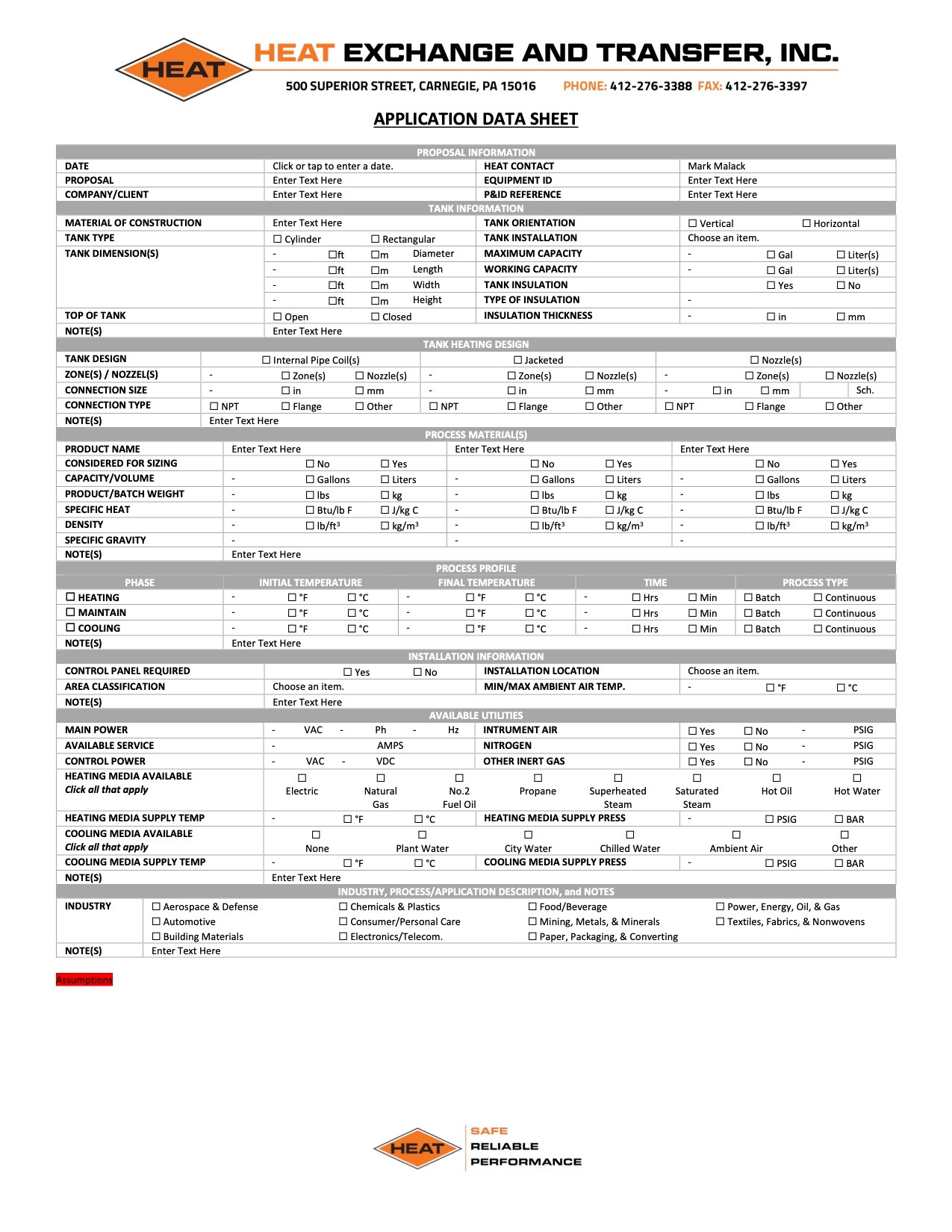

HEAT - Tank Heating Application Data Sheet

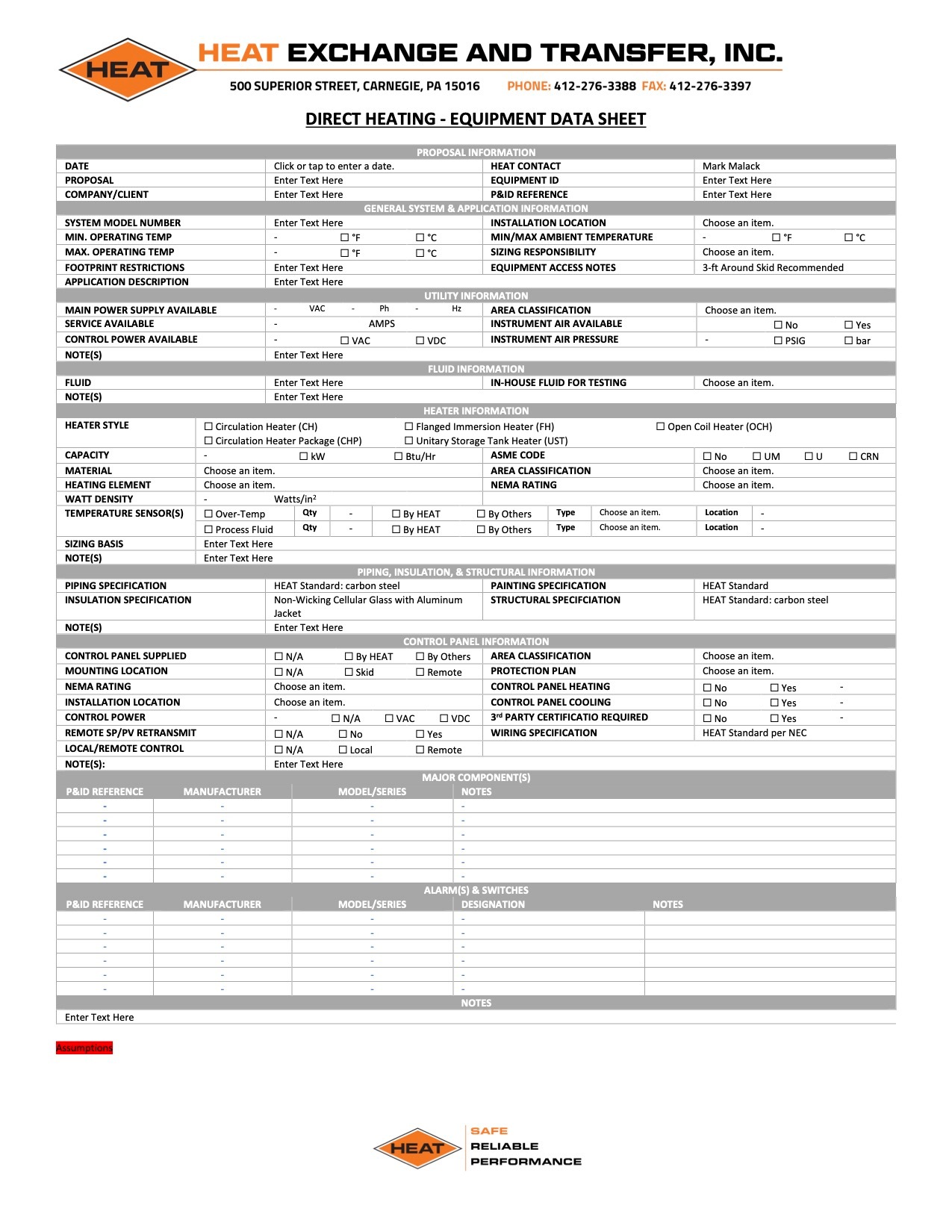

HEAT - Direct Heating Equipment Data Sheet

STEP 0 — GATHER THE RIGHT INPUTS (WHAT TO COLLECT)

Tank and installation:

Capture orientation (vertical/horizontal), principal dimensions, working and maximum capacities, insulation type and thickness, whether the top is open or closed, installation location, and expected ambient conditions—these establish heat‑loss assumptions and mechanical constraints.

Connections:

Map all available nozzles, jacket zones, and any internal coils. Record sizes (in and mm), end type (NPT/flange), and schedule so heater flanges, wells, and piping can be matched correctly.

Process profile:

Document initial and target temperatures, allowed time to reach setpoint, hold requirements, batch vs. continuous duty, and whether agitation is provided.

Product properties:

Provide volume or batch mass with specific heat (Cp), density/specific gravity, and viscosity at operating temperature. Flag fouling or coking risks so watt density and materials can be selected to protect product quality.

Utilities and environment:

List mains voltage/phase/amps/Hz, control power options, instrument air or nitrogen, minimum/maximum ambient, and area classification for enclosure and wiring method selection.

Heater and controls preferences:

State preferred heater style (FH vs. UST/OCH vs. process heater), target kW, preliminary watt‑density limits, sheath/well materials, NEMA rating, over‑temperature and process sensors, and any required certifications (e.g., UL, ASME).

STEP 1 — QUANTIFY THE DUTY (HOW MUCH HEAT, HOW FAST)

Heat‑up duty:

Calculate the energy to raise the product from initial to target temperature within the allowed time. Use product mass (or density × volume), specific heat, and ∆T over the ramp time. For batch processes, treat each campaign independently; for continuous or recirculating scenarios, ensure the chosen heater type and control strategy can meet the dynamic duty.

Heat losses:

Estimate steady‑state losses through insulation and exposed surfaces (shell, heads, nozzles, manways). Use tank geometry, insulation thickness, and ambient conditions; override generic estimates with validated plant loss data when available.

Thermal margins:

Add a rational margin for unknowns—mixing variability, ambient excursions, startup transients—balancing responsiveness with film‑temperature limits. If uncertainty is high, consider a process heater loop for warm‑up with lower watt‑density holds via wells.

STEP 2 — LIMIT FILM TEMPERATURE & WATT DENSITY (PROTECT THE PRODUCT)

Product‑specific sensitivities:

Many viscous or reactive chemistries degrade when local film temperature spikes well above bulk temperature. Align watt density with viscosity and chemistry, and ensure circulation (natural or forced) across immersion bundles or along well surfaces.

Geometry choices that help:

For FH bundles, use baffle orientation and, where practical, plant agitation to keep cross‑flow over the elements. For UST/OCH, select well diameters and placements that minimize stagnant pockets; use staged elements to keep instantaneous surface heat flux conservative. For process loops, choose a flow that keeps inline‑heater film temperature within product limits and returns heated fluid in a way that prevents thermal layering.

Film temperatures that are too high or flow that is too low can cause damage to the tank contents and the heater

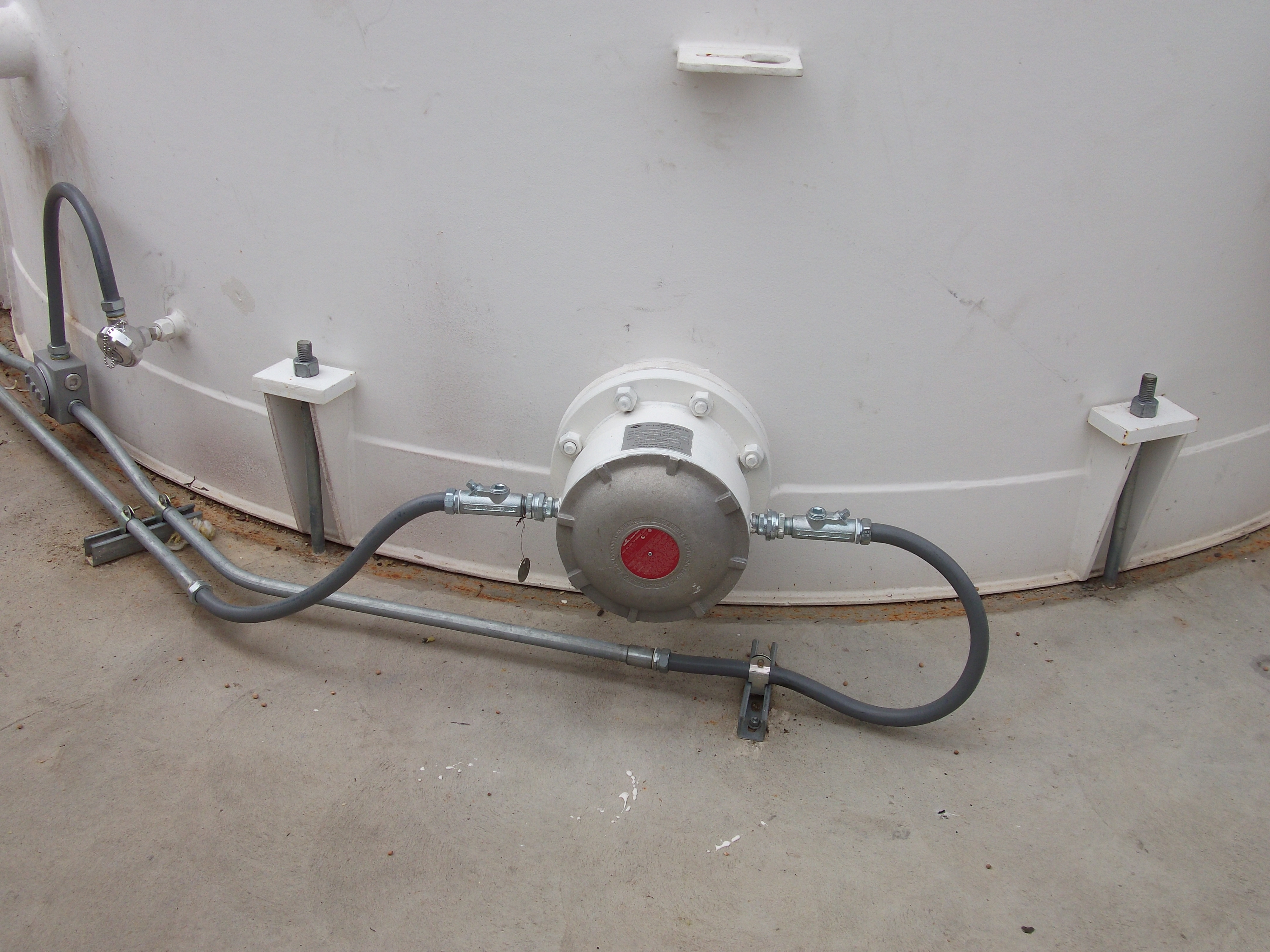

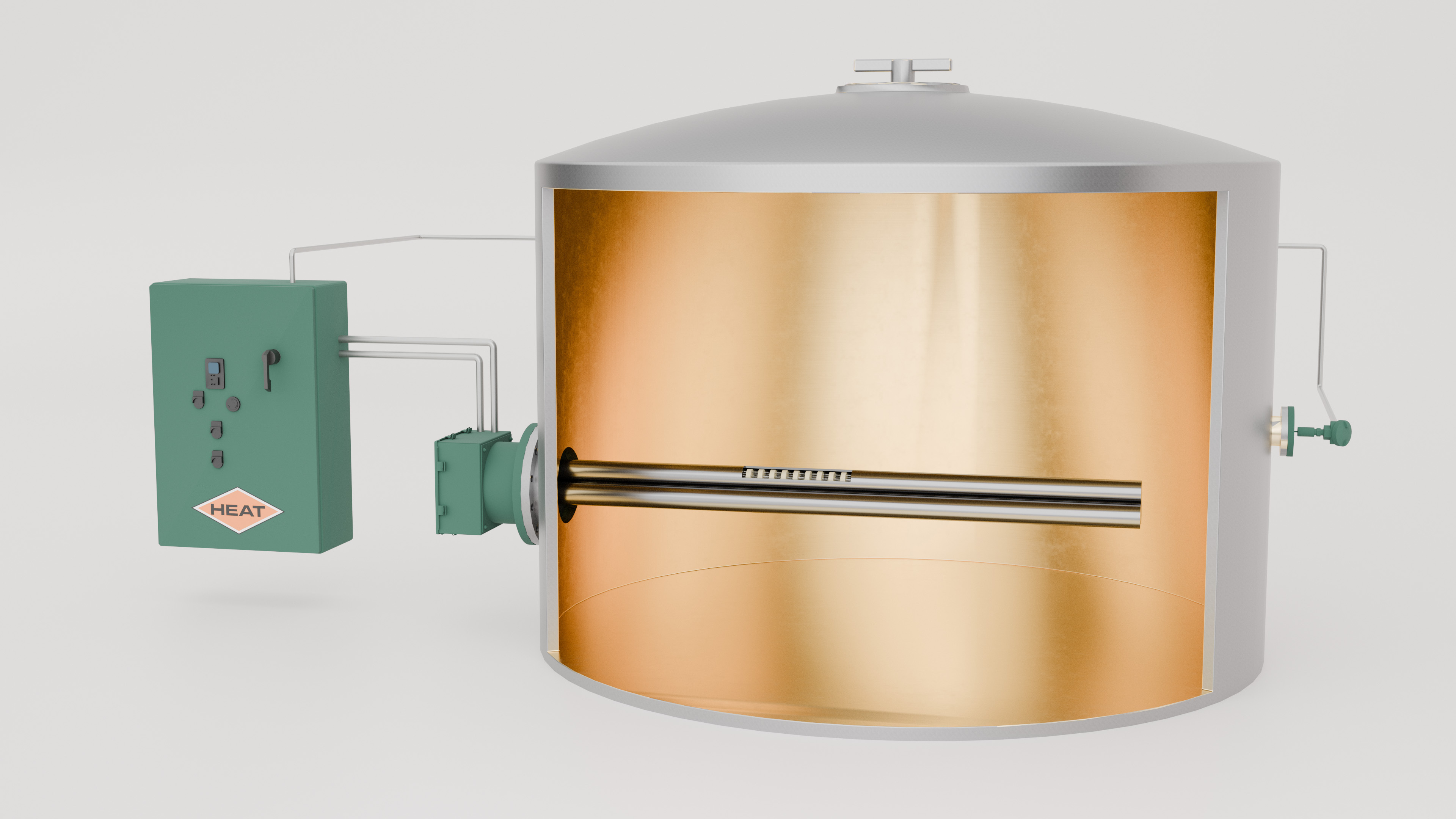

A UST heater bundle wired to remote controls and installed in a tank

STEP 3 — ENGINEER THE MECHANICAL FIT & SERVICE ENVELOPE

Nozzles and clearances:

Confirm flange size/class, nozzle projection, and required withdrawal clearance for bundles or insert elements. Plan access paths for installation and maintenance, and orient terminal housings for cable routing and lockout/tagout practices.

Materials compatibility:

Select sheath, well, gasket, and fastener materials according to product chemistry and operating temperature. Avoid galvanic or corrosion mismatch; ensure well metallurgy matches both product and expected cleaning agents or CIP solutions.

Enclosures and classification:

Specify NEMA ratings and wiring methods aligned with the site’s hazardous‑area classification; follow seal‑off and conduit practices where required. For thermal‑fluid systems, align design and safeguards with NFPA‑87 expectations. Where applicable, specify UL‑Recognized FH components and document installation per their conditions of acceptability.

STEP 4 — CONTROLS, INTERLOCKS, AND FUNCTIONAL SAFETY

Independent interlocks:

Use a layered chain - verified liquid level to prevent dry‑fire, a primary process sensor for control, and an independent high‑limit sensor (thermowell‑mounted) for shutdown. Tie heater enable to permissives such as circulation‑pump proof for process loops. Engineer contactor logic and protective devices appropriate to the load.

Staging and turndown:

For FH and UST/OCH, stage elements to meet ramp targets while capping instantaneous surface heat flux. For inline process heaters, use SCR or multi‑stage control to maintain tight temperature control and limit overshoot.

Commissioning and verification:

Provide a concise test plan: verify interlock actions, simulate level loss, check high‑limit trips, confirm enclosure integrity for the area classification, and capture baseline warm‑up times for future maintenance reference.

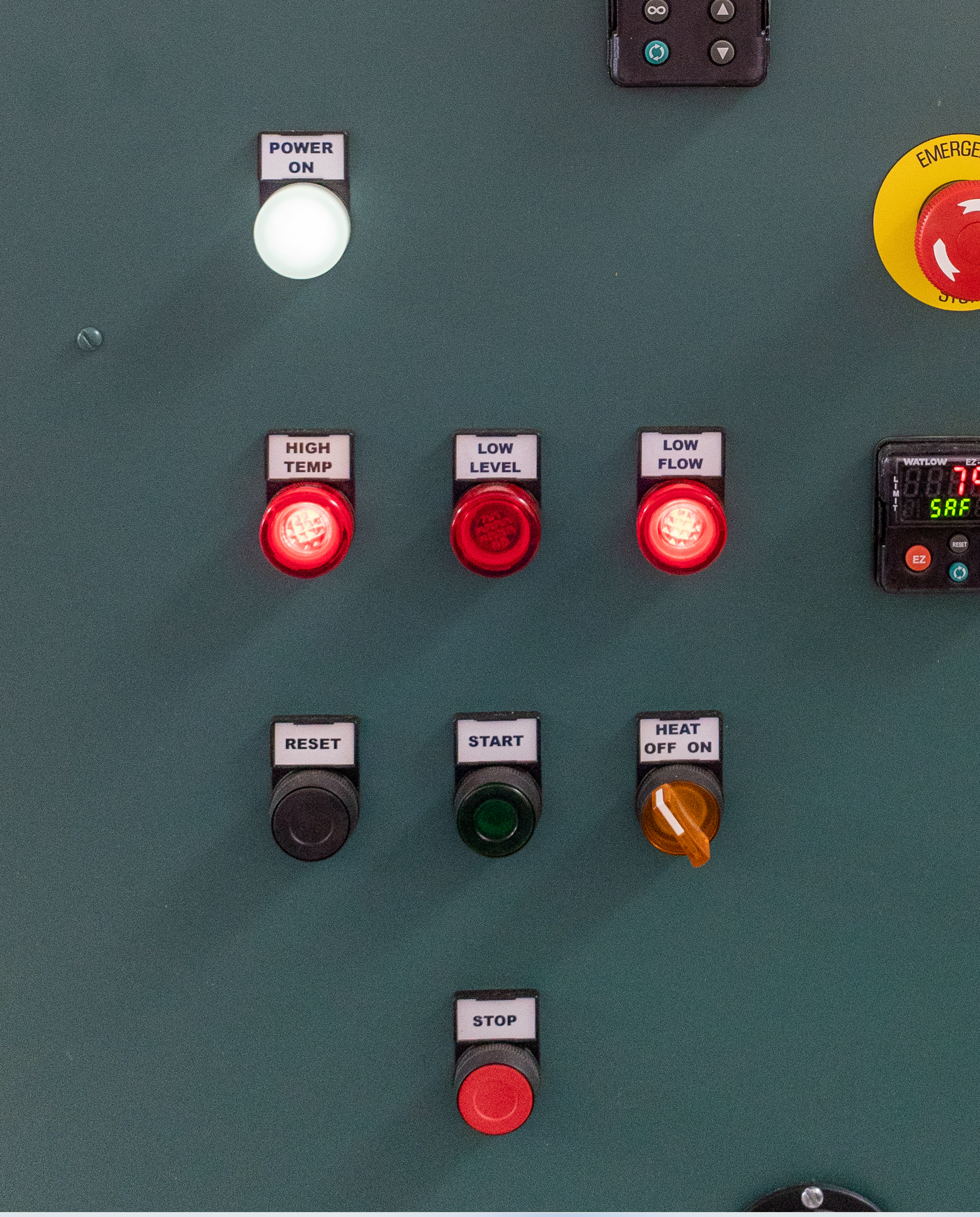

Always install the appropriate safety interlocks

TECHNOLOGY‑SPECIFIC DESIGN PLAYBOOKS

Technology Specific Design Playbooks translate the sizing workflow into actionable choices for the three direct heating approaches used most often in tanks: FH immersion, closed well inserts (UST/OCH), and process (inline/circulation) heaters. Each playbook focuses on what the method does best, the inputs that drive sizing and watt density limits, the mechanical fit and maintenance envelope to verify, and the controls stack that protects the product (primary sensor, independent high limit, and permissives for level/flow).

FH IMMERSION—FROM CONCEPT TO SPEC

Inputs that matter most include product viscosity at operating temperature, target ramp (∆T and minutes), available nozzle size/class, tank internals that affect flow, and whether mixing is present.

Spec framework:

Match ANSI flange size/class and verify projection and withdrawal envelope. Confirm bundle geometry and baffle orientation relative to expected flow. Provide a process control sensor plus an independent high‑limit in the dedicated thermowell, and integrate reliable level interlocks. Select a NEMA enclosure rating per environment and include hazardous‑area provisions as required. Choose sheath and gasket materials compatible with service and keep film temperature within chemistry limits. Where applicable, document UL‑Recognized components.

Typical risks and controls:

Local overheating is mitigated with conservative watt density and induced flow over the bundle. Dry‑fire due to level swings is avoided with robust level instruments, permissives tied to heater enable, and a high‑limit shutdown. Maintenance access constraints are handled by planning removal paths and terminal housing orientation during layout.

UST/OCH CLOSED‑WELL—FROM CONCEPT TO SPEC

Inputs that matter most include product rheology (viscosity vs. temperature), sensitivity to film temperature, tank geometry and internals, and service access paths for insert removal.

Spec framework:

Size wells for the duty and locate to avoid dead zones; consider multiple wells for large, tall, or partitioned tanks. Size open‑coil elements for conservative watt density and stage for gentle ramps and stable holds. Provide overhead or side‑pull clearance and orient terminal housings for safe cable routing and access. Plan periodic inspection and design for clean‑in‑place where sticky or particulate products are present. Match NEMA rating and hazardous‑location practices to the installation environment.

Typical risks and controls:

Coking on well surfaces is avoided by keeping watt density low and ensuring mixing or natural convection paths around wells. Element replacement logistics are simplified with lifting points or access ports sized for the insert, and by documenting lockout/tagout and extraction steps in the job plan.

PROCESS (INLINE/CIRCULATION) HEATERS—FROM CONCEPT TO SPEC

Inputs that matter most include required ramp time, desired ∆T per pass, acceptable return temperature rise to the tank (to avoid stratification), available pump head, and plant power distribution.

Spec framework:

Define suction and return elevations to promote mixing; tie return near the agitator (if present) or use eductor nozzles. Pick an inline heater package sized for loop flow and ∆T; specify pressure‑drop limits and element materials for the chemistry. Implement flow proof interlocked to heater enable, tank‑level permissive, independent high‑limit, and SCR or staged control for turndown. Provide clear access to terminal housings, contactors/SCRs, and isolation valves; include drains and vents for safe maintenance.

Typical risks and controls:

Manage thermal layering by adjusting return velocity/direction or by combining with agitation. Keep film temperature in the inline unit within limits by maintaining adequate flow and placing the high‑limit sensor at the hottest plausible location. Protect against loss of flow with positive proof of flow before enable and trip on low‑flow loss.

SAFETY‑BY‑DESIGN & COMPLIANCE (NON‑NEGOTIABLES)

Independent interlocks are mandatory:

liquid‑level protection to prevent dry‑fire, a primary process sensor for control, and an independent high‑limit in a thermowell for shutdown. Tie heater enable to necessary permissives (e.g., pump status for loops), and use contactor logic appropriate to the electrical load and fault clearing.

Area classification and enclosures must match the site’s requirements. Specify the correct NEMA enclosure rating and wiring methods; follow Class/Division seal‑off and conduit practices when required. For thermal‑fluid systems, align heater, piping, and controls with NFPA‑87 expectations, including interlocks, over‑temperature protection, and features that limit ignition sources and manage maximum surface temperatures. Where applicable, specify UL‑Recognized flanged immersion heater components and document installation to maintain conditions of acceptability.

REPRESENTATIVE DIRECT‑HEATING APPLICATIONS

  • Edible oil day tanks (food and beverage): FH or UST solutions enable rapid heat‑up to pourable viscosity, with staged elements limiting film temperatures that could otherwise darken or degrade the oil. The compact nozzle footprint of FH suits existing tanks; UST provides serviceable, low‑watt‑density holds for extended campaigns.
  • Asphalt/bitumen storage: Closed‑well inserts deliver very low watt density directly where needed, and elements can be replaced without draining. Combine staged control with conservative film‑temperature targets to avoid coking and maintain pumpability in cold weather.
  • CIP/caustic solution tanks: Flanged immersion packages can be sized for fast turnarounds between cleaning cycles; safety interlocks, terminal housing selection, and documented component recognitions support validation‑friendly operation.
  • Fuel‑oil day tanks: UST/OCH allow maintenance in place and are compatible with area‑classified installations when equipped with appropriate enclosures and wiring practices; watt density is matched to viscosity to safeguard product quality.
  • Chocolate, confectionery, and waxes: Low watt density is paramount to prevent scorching and preserve temper; closed‑well inserts with staged control maintain gentle heat while allowing in‑situ service.

SELECTION FRAMEWORK—AT A GLANCE

  • Product interaction: If heaters must not contact product (sanitation/validation priority), lean indirect. If product can contact wells or immersed bundles, direct methods open speed and maintainability advantages.
  • Uniformity requirements: For ultra‑tight uniformity across large volumes, indirect has an edge; when localized, controlled heating is acceptable, direct fits well.
  • Heat‑up time: If fast response is required, favor direct (FH, UST/OCH, or process loop); if slower heat‑up is acceptable, indirect may suffice.
  • Maintainability: If in‑situ element replacement is important, UST/OCH is compelling; if external skid service is preferred, a process loop concentrates maintenance points off‑tank.
  • Space/nozzles: Limited nozzle real estate favors FH (high kW per opening). Larger tanks with serviceability needs lean toward UST/OCH; where piping space is available and control precision is paramount, a process loop heater is attractive.

IMPLEMENTATION ROADMAP (FROM INTAKE TO COMMISSIONING)

  • Choose the base method—FH, UST/OCH, process loop, or a hybrid—using decision drivers and product sensitivities.
  • Complete the data intake with the Field Data Checklist.
  • Translate inputs into kW and watt density, then test against film‑temperature limits; use loop heaters for ramps and wells for gentle holds where appropriate.
  • Engineer safety and compliance—level/dry‑fire prevention, process control plus independent high‑limit, enclosure and wiring practices, NFPA‑87 alignment for thermal‑fluid systems, and component documentation where applicable.
  • Finalize mechanicals—nozzle/flange fit, withdrawal clearances, terminal housing orientation, well placement, and service envelopes.
  • Plan maintainability—spare elements, extraction paths and tooling, accessible sensor locations, and a commissioning checklist.
  • Commission and verify—exercise interlocks, simulate off‑normal conditions (level loss, flow loss), record warm‑up performance, and capture as‑found settings for audits.
