Tank Heating Guide

What Is an Immersion Heater? A Complete Guide

When it comes to efficiently heating liquids in industrial processes, few solutions are as versatile and effective as the electric immersion heater. If you’ve ever wondered what is an immersion heater and how it works, this guide will help you understand why these devices are essential for precise, reliable fluid heating in a wide range of applications, from chemical processing to food production and beyond.

7 min readCovers flanged, open coil, UST and circulation heaters

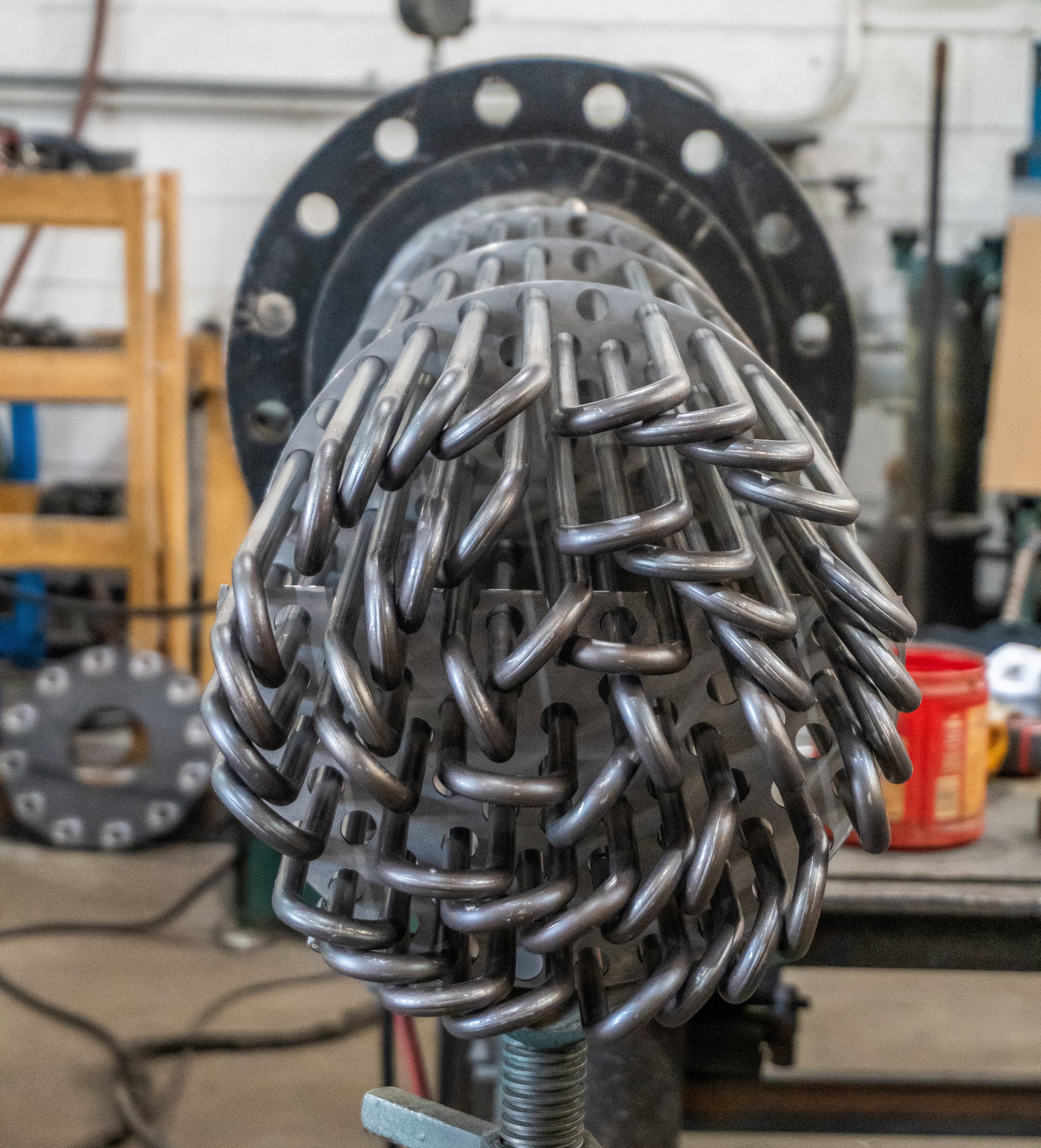

Flanged immersion heater element bundle with U-bend tubular elements and baffles

At Heat Exchange and Transfer, Inc. (HEAT), we specialize in designing and manufacturing industrial electric immersion heaters and complete thermal fluid systems engineered to meet the toughest performance and safety standards. Let’s explore how electric immersion heaters work, why they’re so efficient, and how to choose the right system for your application.

Immersion Heaters Transfer Heat Through Direct Contact

What is an immersion heater?

An immersion heater is an electric heating element that’s directly submerged in a liquid, typically oil, water, or another heat transfer fluid, to raise and maintain its temperature. Unlike external heat exchangers or fired systems, immersion heaters transfer heat directly to the medium, offering higher efficiency and faster response times.

This direct-contact approach eliminates many heat losses found in indirect systems, making immersion heaters ideal for tanks, reservoirs, and process vessels. They are often used with temperature controls and sensors to maintain tight, consistent heating levels, a must for precision manufacturing and process reliability.

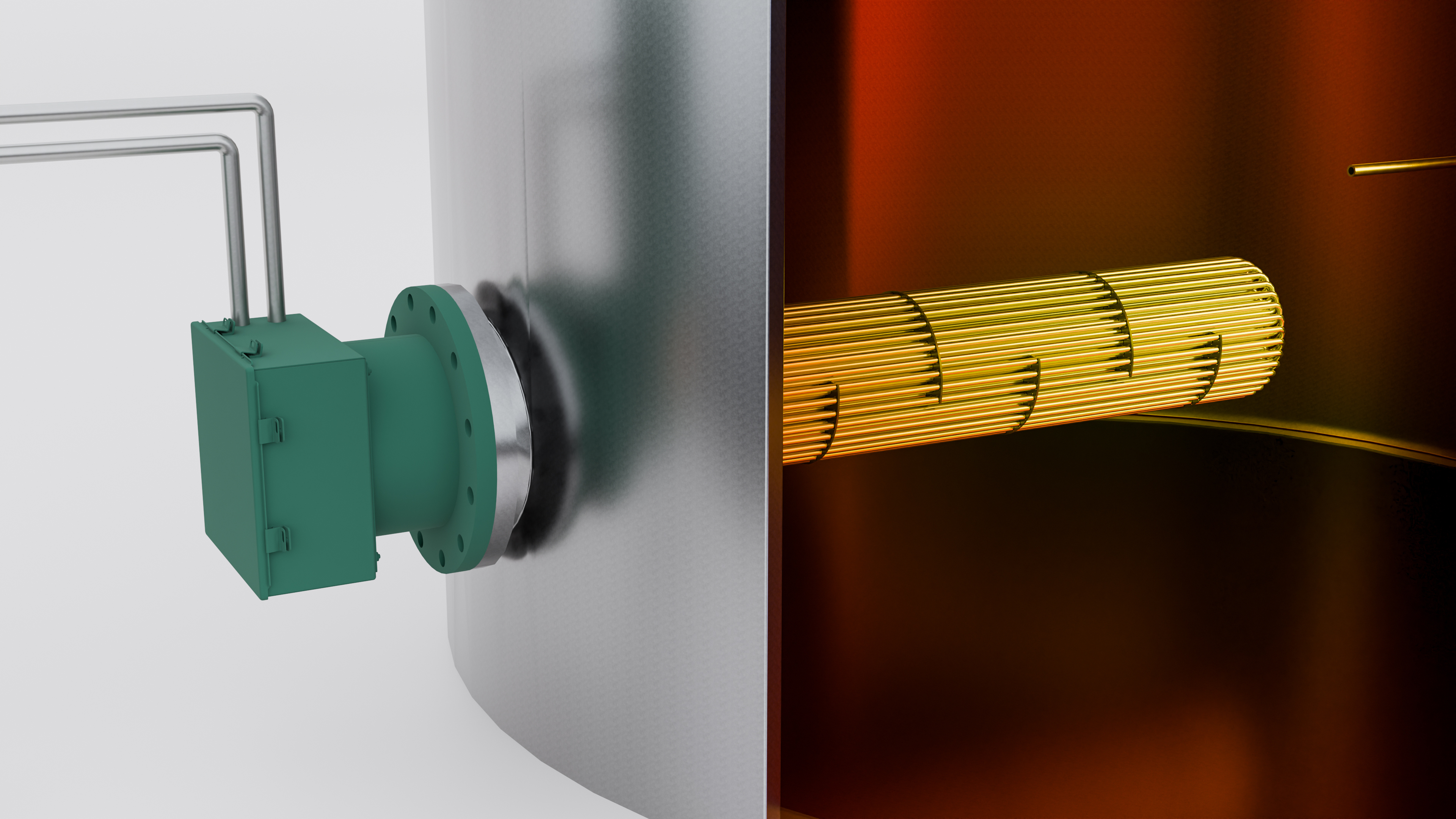

Illustration of a flanged immersion heater mounted through the side of an industrial tank
Large industrial tank with immersion heater and a green terminal box.

How Electric Immersion Heaters Work

To understand how electric immersion heaters work, think of them as industrial-grade versions of the heating element in a household water heater, but built for extreme durability and control. Each heater contains a resistive element (often made from stainless steel or Incoloy) that converts electrical energy into heat when current passes through it.

  1. Step 1Current flows through the element

    A resistive element converts electrical energy into heat.

  2. Step 2Heat moves into the liquid

    The element is immersed, so distribution is quick and uniform.

  3. Step 3Controls hold the setpoint

    Sensors, thermostats, or controllers prevent overheating.

That heat is then transferred directly to the surrounding liquid. Because the element is immersed, heat distribution is quick and uniform. The process is controlled by temperature sensors, thermostats, or advanced controllers to prevent overheating and maintain exact temperature profiles.

In industrial settings, electric immersion heating is preferred for its safety, precision, and efficiency. It allows engineers to achieve controlled temperature ramps and steady-state conditions with minimal thermal lag, critical for industries like chemical manufacturing, plastics, pharmaceuticals, and food processing.

Types of Industrial Electric Immersion Heaters

At HEAT, we design and manufacture industrial immersion heaters for a wide range of applications and fluids. The most common configurations include:

FH Series flanged immersion heater on a shipping skid
UL Recognized

Flanged Immersion Heaters

Mounted through a flanged connection, these heaters are ideal for large tanks and pressurized vessels. Their robust design allows easy removal and maintenance while handling demanding process conditions. HEAT is one of only a few manufacturers in North America with the ability to self-label its flanged heaters as UL Recognized components.

FH Series flanged immersion heaters
Open coil heater element with resistance wire supported by interlocking ceramic insulators
No tank draining for service

Open Coil (OCH) and Unitary Storage Tank (UST) Heaters

Taking a slightly different approach, these heaters use resistive electric elements suspended across a flexible “spine” of interlocking ceramic insulators. The heaters are then placed into pipe wells that extend into a tank and allow the radiant heat to warm the pipe and fluid in the tank. One particular advantage of this design is the ability to perform maintenance or replace one of these heaters without having to drain the tank.

OCH Series open coil heaters UST Series storage tank heaters

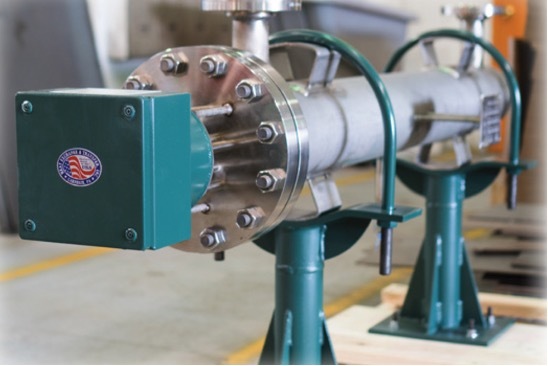

Industrial circulation heater with terminal housing on green mounting supports
In-line with process piping

Circulation Heaters

Circulation heaters work much like shell and tube heat exchangers, but with electric heating elements in place of tubes. A liquid or gas flows through the heater's chamber, passes over the heating elements, and is heated in a single pass before continuing on to the process. Stand-alone units mount horizontally or vertically in line with process piping. When direct immersion in a tank is not practical, the fluid can also be pumped through a circulation heater and returned to the tank.

HEAT circulation heaters for oil, water and water-glycol, and air or gas service

Advantages of Electric Immersion Heating

Electric immersion heating offers a host of benefits that make it the go-to choice for industrial fluid heating:

High Efficiency

Nearly all energy input is converted directly to heat within the fluid.

Precise Temperature Control

Paired with modern controls, immersion heaters maintain extremely tight tolerances.

Compact Design

Minimal footprint, perfect for space-constrained systems.

Versatility

Suitable for heating water, oil, glycol, and various process fluids.

Ease of Maintenance

Modular designs allow for quick replacement or cleaning without full system shutdowns.

Safety

Electric systems reduce the risk of combustion or leaks associated with fuel-fired heaters.

When engineered correctly, an electric immersion heater can operate for years with minimal maintenance, offering a low total cost of ownership and excellent reliability.

Choosing the Right Immersion Heater for Your Application

Selecting the proper immersion heater isn’t just about wattage. It’s about aligning design, materials, and performance with the demands of your process. Here are key factors to consider when choosing an industrial electric immersion heater.

  • Type of Fluid

    The fluid being heated determines everything from material selection to watt density. Corrosive or viscous fluids require specific alloys and lower watt densities to prevent fluid degradation or damage to the element.

  • Required Operating Temperature

    Each heater type and element material has a maximum operating range. High-temperature applications may need specialized alloys like Incoloy or stainless steel to ensure long-term durability and thermal efficiency.

  • Tank Size and Configuration

    The volume and geometry of your tank affect heat distribution. Larger tanks may require multiple heaters or circulation systems to maintain uniform temperature throughout the vessel.

  • Heating Rate and Watt Density

    Watt density refers to the amount of heat applied per square inch of surface area. Higher densities heat faster but can cause localized overheating if not properly matched to the fluid type. Balancing watt density ensures efficiency without compromising safety or fluid integrity.

  • Environmental and Safety Requirements

    Hazardous or outdoor environments may require explosion-proof designs, moisture-resistant enclosures, or special certifications (e.g., UL, CSA). Selecting the right housing and control package ensures compliance and reliability in all conditions.

At HEAT, our engineers evaluate all these factors to design systems that perform flawlessly in even the most demanding industrial settings. Whether you need a custom thermal system or a direct replacement, we’ll help you identify the best configuration for your application.

Contact Our Experts

Oil Immersion Heaters: What Changes When the Fluid Is Oil

An oil immersion heater heats light oils, heavy oils, or thermal fluids rather than water. With oil, the key design factor is the film temperature at the heating element. If the element runs hotter than the oil can tolerate, the oil around it is locally overheated and suffers thermal stress degradation, which forms insoluble solids in the fluid.

That is why watt density matters. HEAT sets the watt density of every tank heater for the product's film-temperature limit, and low watt density open coil heaters are well suited to viscous or heat-sensitive fluids.

Electric heaters also need flow across the heating elements to keep film temperatures from damaging the tank contents. For oil moving through process piping, HEAT builds oil circulation heaters, and for closed-loop service, a complete hot oil system circulates thermal fluid through a closed-loop piping circuit to heat your process.

Industrial Applications for Immersion Heaters

Industrial electric immersion heaters are used across countless industries, including:

Explore the full list of industries HEAT serves.

UST Series unitary storage tank heater installed at the base of a storage tank

FAQs About Electric Immersion Heaters

Can electric immersion heaters be used with both liquids and gases?

Immersion heaters are designed primarily for liquid heating, where the heating element is completely submerged to ensure efficient heat transfer and prevent burnout. While specialized versions can heat gases, this requires custom design considerations — such as flow control, element spacing, and material selection — to avoid overheating. In general, for air or gas applications, other types of electric heaters (like circulation or duct heaters) are better suited.

Can I use the same immersion heater for different types of fluids?

Not usually. Each immersion heater is engineered for a specific fluid type, taking into account viscosity, corrosion potential, and thermal characteristics. Using the same heater across different fluids can lead to reduced efficiency, premature element failure, or contamination. It’s always best to consult with a thermal-system engineer to verify compatibility before reusing a heater.

Is it possible to retrofit an existing tank with an immersion heater?

Yes — and it’s often one of the most cost-effective upgrades you can make. Retrofitting an existing tank with a flanged heater or UST heater bundle allows you to modernize your system without a full replacement. HEAT regularly designs custom retrofit solutions that match existing tank openings, fluid volumes, and process controls, minimizing downtime and installation costs.

What is the difference between a flanged immersion heater and an open coil heater?

A flanged immersion heater is a bundle of U-bend tubular heating elements welded into an ANSI flange. It mounts directly to a tank, pipe, or vessel through a mating flanged nozzle, so the elements sit in the fluid. Open coil heaters sit inside closed pipe wells installed in the tank, so they can be removed for service or replacement without draining the tank. Flanged heaters usually require an empty tank for service.

Can an immersion heater be used to heat oil?

Yes. HEAT's flanged immersion heaters are designed to heat light oils, heavy oils, and thermal fluids, among other media. Because an element that runs too hot can locally overheat and degrade the oil, HEAT sets each heater's watt density for the fluid's film-temperature limit.

Partner with HEAT for Expertly Engineered Immersion Heaters

If your process requires reliable, efficient, and precisely controlled fluid heating, HEAT’s custom-designed industrial electric immersion heaters are the solution. With decades of experience in electric immersion heating, our systems are built to perform under the toughest industrial conditions, safely, efficiently, and consistently.

At Heat Exchange and Transfer, Inc., we don’t just build heaters, we engineer performance.
